Yushuoda YSD-500 Pathology Laboratory Paraffin Manual Microtome
Yushuoda YSD-500 Pathology Laboratory Paraffin Manual Microtome Yushuoda YSD-500 Pathology Laboratory Paraffin Manual Microtome Yushuoda YSD-500 Pathology Laboratory Paraffin Manual Microtome Yushuoda YSD-500 Pathology Laboratory Paraffin Manual Microtome Yushuoda YSD-500 Pathology Laboratory Paraffin Manual Microtome

Yushuoda YSD-500 Pathology Laboratory Paraffin Manual Microtome

YSD-500 Rotary Paraffin Microtome
Yushuoda YSD-500 paraffin microtome is the most typical simple and practical microtome, which adopts crank drive, ratchet feed mechanism, and has basic functions such as continuous slicing.

  • Brand:

    YU SHUO DA

  • Item NO.:

    YSD-500

  • Lead Time:

    3 to 7 working days

  • Size:

    21kg

  • Material:

    iron

  • Capacity:

    Section thickness range：0-25um for continuous sectioning
Share To :
Inquire now
Categories
New Products
  • Product Detail


YSD-500 Rotary Paraffin Microtome

Yushuoda YSD-500 paraffin microtome is the most typical simple and practical microtome, which adopts crank drive, ratchet feed mechanism, and has basic functions such as continuous slicing.



ratory microtome
Detailed Image

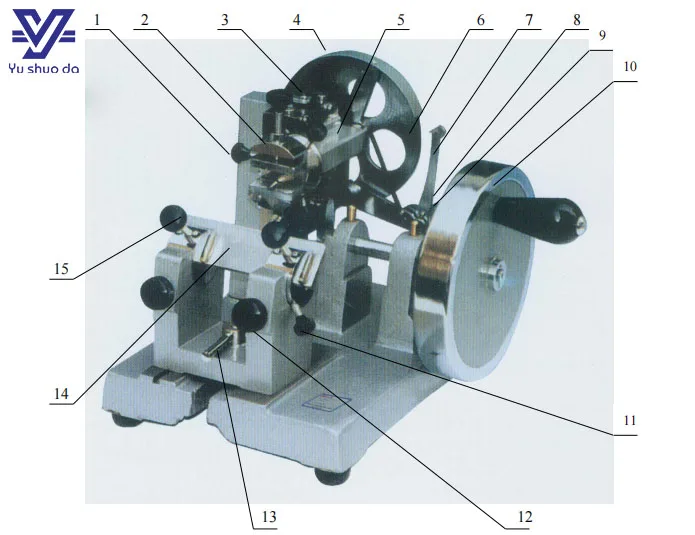

YSD-500 Paraffin Microtome Main structure and components
1. Wax block angle adjustment screw
6. Ratchet
11 slicing knife adjustment screws
2. Wax block pliers
7 teeth support
12 locking nuts
3. Stop cutting and rolling
8 teeth support clutch
13 knife holder fixed handle
4. Ratchet advance and retreat handle
9 thickness adjuster
14 slicing knife
5. Small drag plate
10 handwheels
15 tightening screw
paraffin microtome

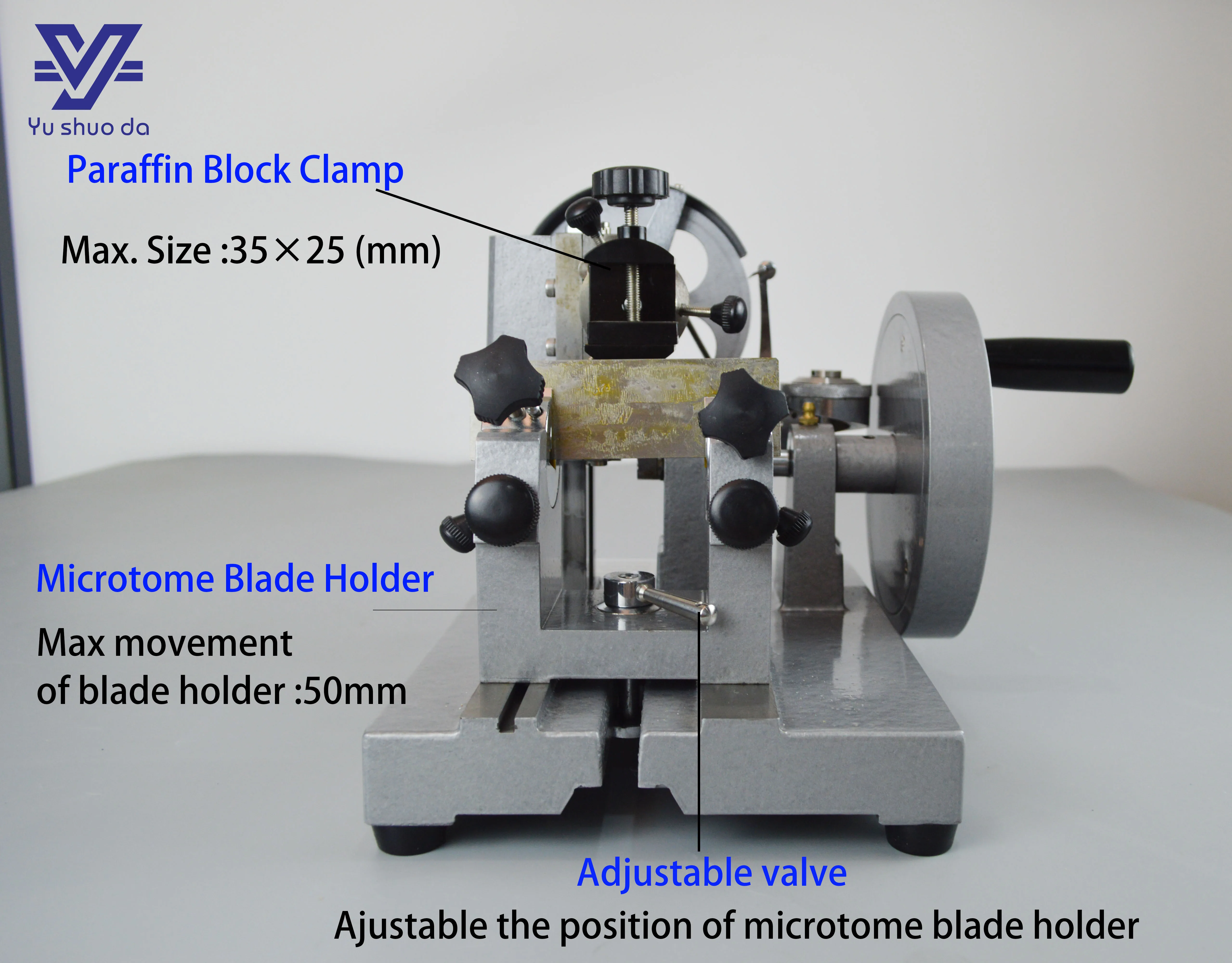

YSD-500 Paraffin microtome paraffin block clamp Max size is 35*25mm
The YSD-500 tissue microtome 's microtome blade holder Max movement of blade holder is 50 mm.
The rotary microotme with a adjustable valve, it can adjustable the position of microtome blade holder .
tissue microtome

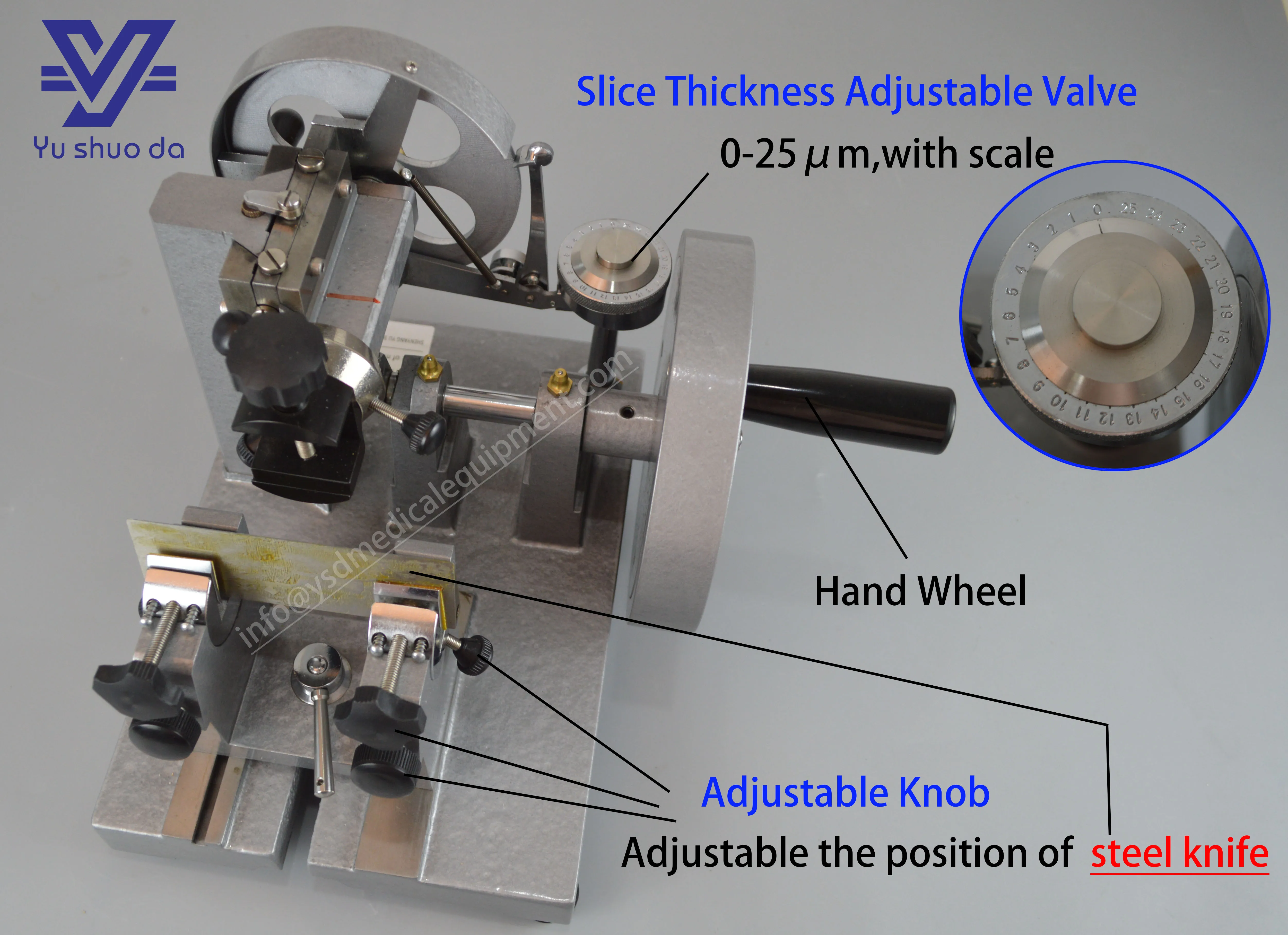

How to start slicing and activate the tissue microtome?
There is a stop cutting and rolling valve button on the top of YSD-500 manual microtome, you need to toggle the stop valve, turn the handwheel and perform slicing.
The YSD-500 tissue hand microtome slice thickness is 0-25μm , the slice thickness adjustable valve with scale , you need to turn the valve to adjustable slice thickness.
The rotary microtome can adjustable the position of steel knife.
lab microtome

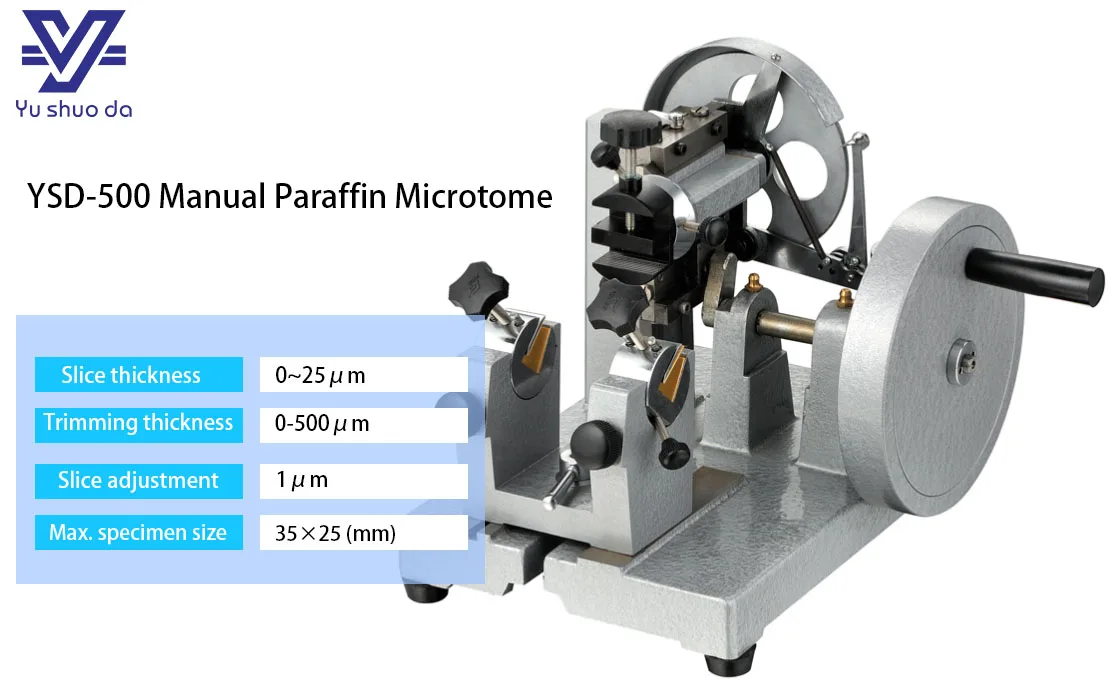

Product Paramenters
Product Name
YSD-500 Rotary Manual Paraffin Microtome
Slicing Thickness
0-25μm
Trimming Thickness
0-500μm
Slice Adjustment
1μm
Max.Specimen Size
35*25mm
Product packaging
Package size
40*40*36cm
Weight
27kg
Company Introduction
FAQ
1. Any requires will be replied with 24 hours .
2. Professional manufacture , welome to visite our website : Yushuoda .
3. OEM and ODM available .
4.High quality , fashion designs , resonables and competitive price ,fast led time .
5.After-sale service
1) Allproducts will have been strictly tested in house before sending
2) All products will be well packed before sending
3) All products have 1 year warranty and will be free from maintenance with in warranty period
6. Faster Delivery Quantity < 10 cartons , just need about 5~7 work days
7. Payment You can pay for the order via :T/T , wertern Union , Paypal or others
8. Shipping We have long-term cooperation with DHL, TNT, UPS, FEDEX AND EMS.
You can alos choose your own forwarder
