Working in comfort is not a luxury but a necessity. A relaxed,ergonomic working posture is a basic prerequisite for the high levels of speed, precision, and efficiency required in modern laboratories. Day after day, the YSD-3000 rotary microtome
provides comfortable functionality without compromise. The YSD-3000 rotary microtome is the instrument of choice for all clinical histology
Brand:
YU SHUO DAItem NO.:
YSD-3000Goods Stock:
10Product weight:
35 kgLead Time:
3~5 days after we confirm the orderSize:
0~60 um
Working in comfort is not a luxury but a necessity. A relaxed,ergonomic working posture is a basic prerequisite for the high levels of speed, precision, and efficiency required in modern laboratories. Day after day, the YSD-3000 rotary microtome
provides comfortable functionality without compromise. The YSD-3000 rotary microtome is the instrument of choice for all clinical histology
|

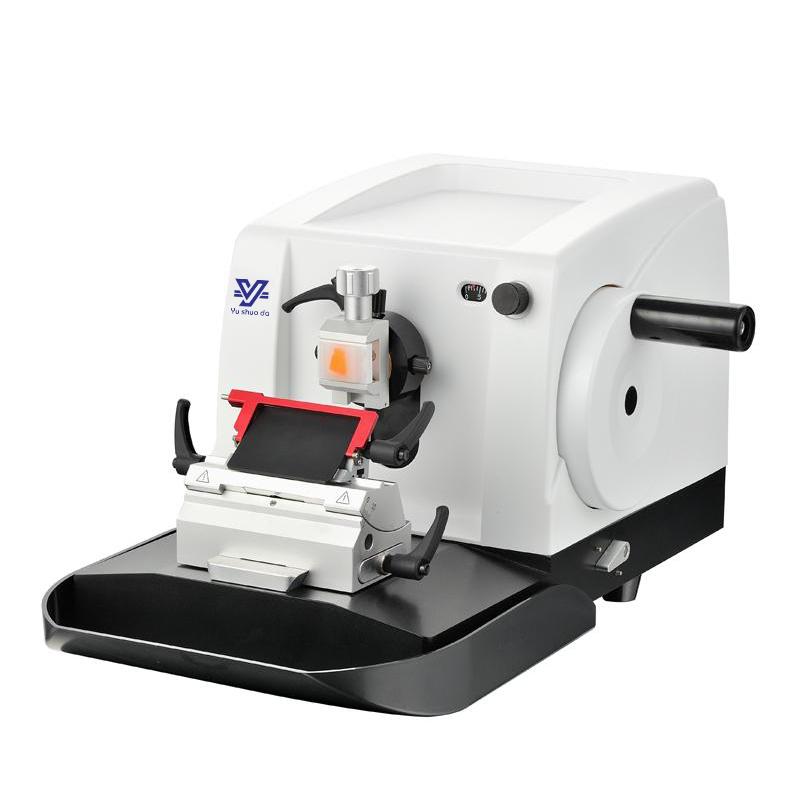

Rotary Micortome YSD-3000
|
|
|
Model
|
YSD-3000
|
|
Section thickness range
|
0- 60um
|
|
Setting values
|
Setting values : From 0-2 um in 0.5 um –increments
|
|
Form 2-10um in 1 um-increments
|
|
|
Form 10-20 um in 2 um-increments
|
|
|
Form 20-60um in 5 um-increments
|
|
|
Horizontal specimen stroke
|
28 mm
|
|
Vertical specimen stroke
|
60mm
|
|
Precision error
|
± 1%
|
|

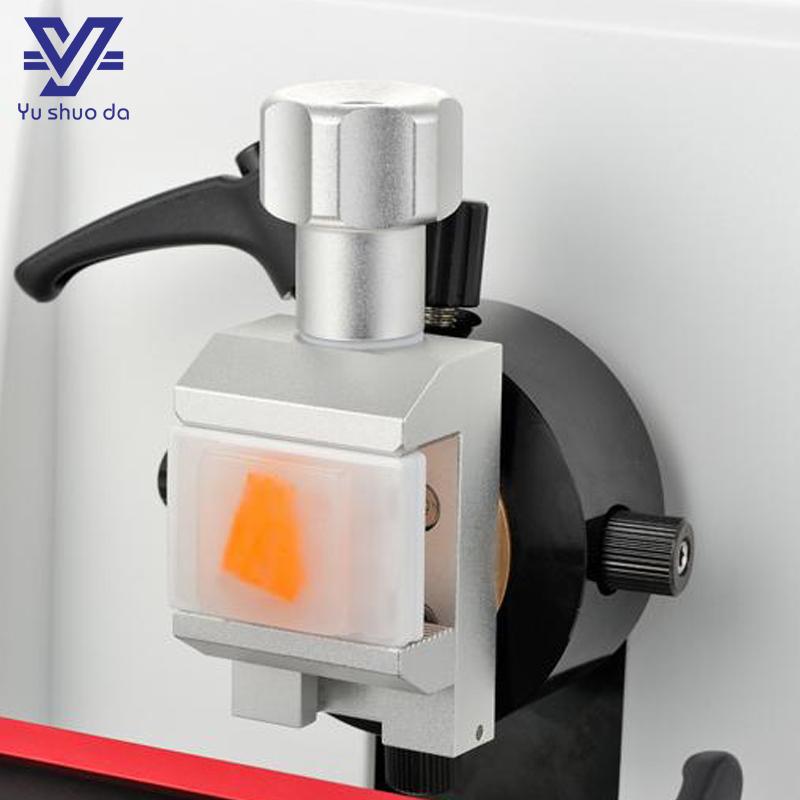

Sample orientation
|
8°along the X-Y-axis,rotable 360°
|
|
Maximum section size
|
50 × 45mm
|
|
Dimensions incl. tray (L/T/H)
|
300mm(L)X570mm(W)X270mm(H)
|
|
Net weight
|
28kg
|
|
Warranty
|
1 year
|
Imported cross roller guide (Japan) without oiling and frequent maintenance, long service life

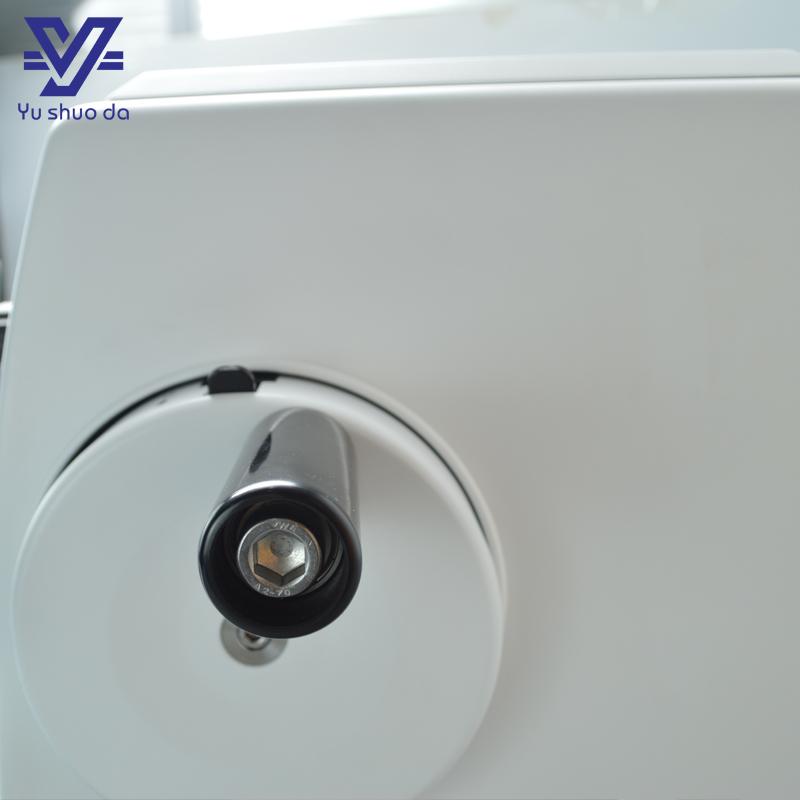

The right handwheel can be locked at high station
1. Any requires will be replied with 24 hours
2. Professional manufacture , welome to visite our website : YUSHUOD
3. OEM and ODM available
4 .High quality , fashion designs , resonables and competitive price ,fast led time .
5.After-sale service
1) All products will have been strictly tested in house before sending
2) All products will be well packed before sending
3) All products have 1 year warranty and will be free from maintenance with in warranty period
6. Faster Delivery
Quantity < 10 cartons , just need about 5~7 work days
7. Payment
You can pay for the order via :T/T , wertern Union , Paypal or others
8. Shipping
We have long-term cooperation with DHL , TNT ,UPS ,FEDEX AND EMS
You can alos choose your own forwarder .
Leave A MessageYSD-2000 Laboratory Rotary Microtome is a good microtome with LCD screen can show section number and safety alarm function . Section : 0~25um
YSD-2000 Laboratory Rotary Microtome is a good microtome with LCD screen can show section number and safety alarm function . Section : 0~25um
YSD-1000 Laboratory Rotary Microtome is a good microtome with LCD screen can show section number and safety alarm function . Section : 0~25um
YSD-5000 Medical Histology Equipment Rotary Microtome , section : 0~60 um with Specimen retraction function
YSD-5000 Medical Histology Equipment Rotary Microtome , section : 0~60 um with Specimen retraction function
Specimen feed drive is controlled by an intelligent, high precision control system, enabling semi-ultrathin slicing, starting from a thickness of 0.25μm
Specimen feeding drive utilizes an intelligent control system, it has three modes: Conventional mode , Intelligence sensing mode and whole layer cutting mode
Application-The S35 disposable microtome blade is a astandard blade for routine pratice and biopsies. Outstanding quality-The S35 blade gives very high sectioning quality from the first cut and has a long service life. Short trimminng time-A further asvantage is the short trimming time. The blade lebght is 80 mm,and the blade angle is 35°
