Medical Paraffin manual hand microtome machine

YSD-2000 Laboratory Rotary Microtome is a good microtome with LCD screen can show section number and safety alarm function . Section : 0~25um

  • Brand:

    YU SHUO DA
  • Item NO.:

    YSD-5000
  • Goods Stock:

    10
  • Product weight:

    35 kg
  • Lead Time:

    3~5 days after we confirm the order
  • Size:

    560×470×320mm
Share To :
  • Product Detail

Product Description

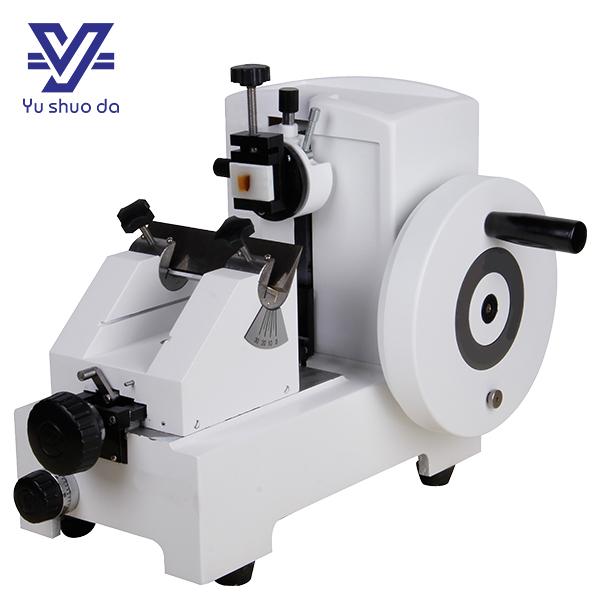

Medical Paraffin manual hand microtome machine

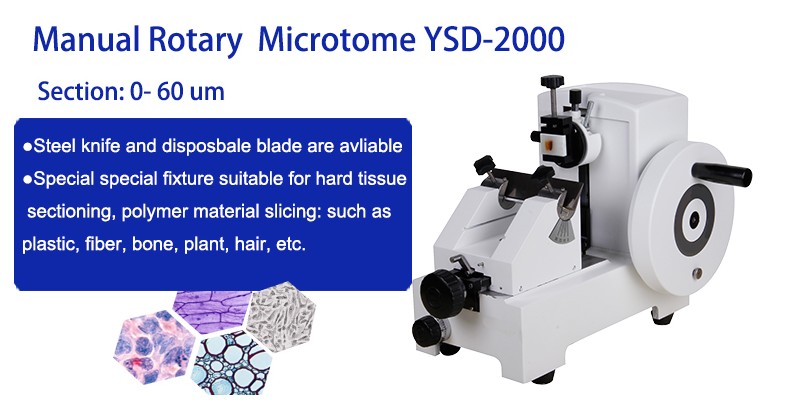

YSD-2000 Paraffin Microtome machine can be used steel knife and disposable blade . Easy to cut bone , plant , hair and fiber

Microtome machine Specifications

Product YSD-2000 Microtome machine

Section Thickness Setting Range

1 - 35μm for continuous sectioning

The sectioning thickness can be set at any value

>35μm

Minimum Setting of Sectioning Thickness

1μm

Maximum Specimen Size

50×40mm

Precision Error

±5%

Dimensions

420×330×330 mm (W×D×H)

Net weight

19 KG

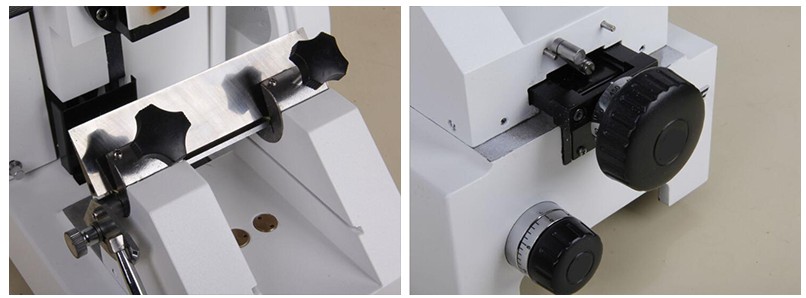

Hand microtome Details

microtome machine

hand microtome

microtome manual

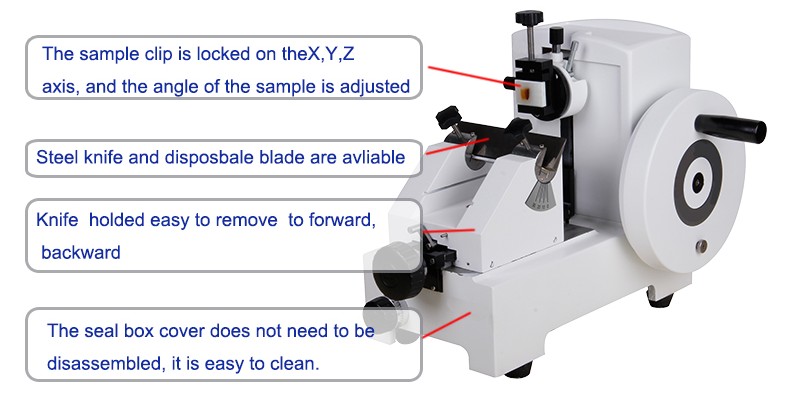

The microtome holder can move back, forth and laterally LCD show slice count with alarm system

Microtome machine specification:

Adopting international advanced technology, precision roller guide, more precise coordination

Using high-strength alloy steel and other non-ferrous metal materials, the slicing is stable and reliable

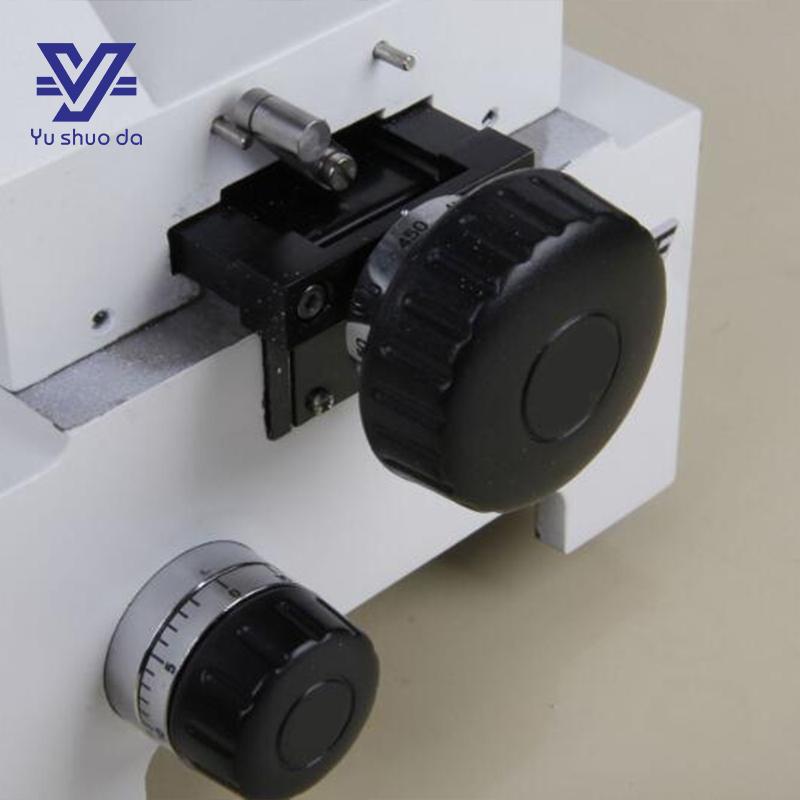

The sample is clamped on the three-dimensional axis and locked arbitrarily, and the angle of the sample cut surface

can be adjusted.

The tool holder moves forward and backward, easy to operate

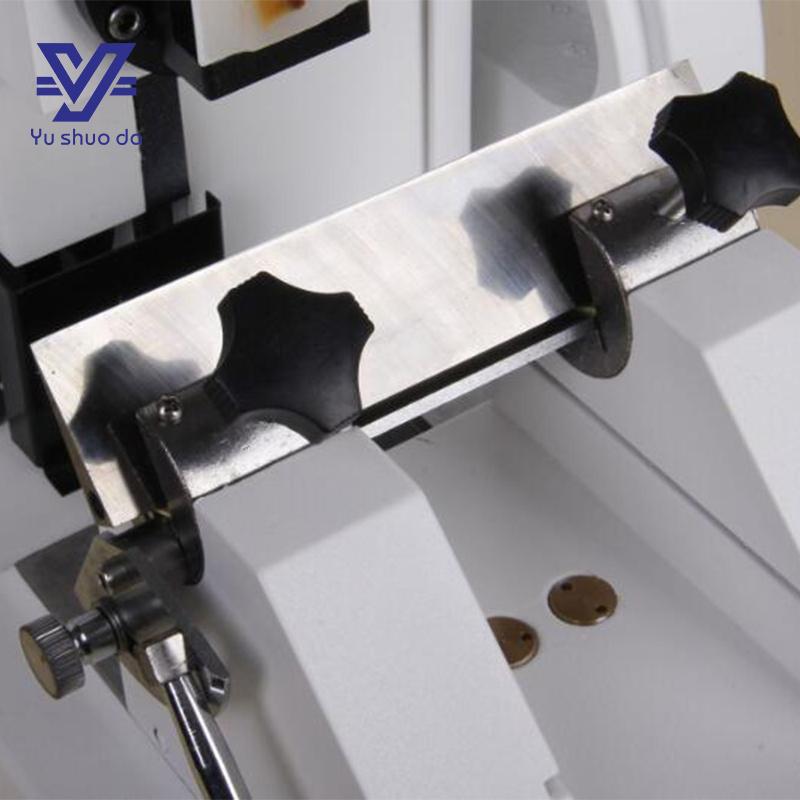

Use standard steel slicing knife or disposable blade to obtain ideal slices

The handwheel balance fine adjustment system is locked at the highest point to ensure the safety of the slicing

process

The outer cover of the sealed box does not need to be disassembled and is easy to clean

Special special fixture, suitable for hard tissue sectioning, polymer material sectioning: such as plastic, fiber, bone, plant,

hair, etc.

microtome machine

microtome manual

microtome manual

microtome machine

microtome machine
