Medical Histology Equipment Rotary Microtome

YSD-5000 Medical Histology Equipment Rotary Microtome , section : 0~60 um with Specimen retraction function

  • Brand:

    YU SHUO DA
  • Item NO.:

    YSD-5000
  • Goods Stock:

    10
  • Product weight:

    35 kg
  • Lead Time:

    3~5 days after we confirm the order
  • Size:

    560×470×320mm
Share To :
  • Product Detail

Product Description

Medical Histology Equipment Rotary Microtome

YSD-5000 Medical Histology Equipment Rotary Microtome , section : 0~60 um with Specimen retraction function

The slice is more accurate, it is the best tool for the laboratory, school and hospital to make specimen slices

Rotary microtome Specifications

Product Medical Histology Equipment Rotary Microtome

Section thickness range

1-60μm(3~5μm thickness leads to best section results)

Section thickness setting

1-10μm, 1μm increment

10-20μm, 2μm increments

20-60μm, 5μm increments

Trimming thickness

10μm and 30μm

Specimen retraction

about 60μm

Rough feeding

operate by manually rotating rough-feeding handwheel

Specimen vertical stroke

70mm

Specimen horizontally stroke

28 mm

Max specimen size

60mm×50mm×40mm

Specimen positioning

horizontally 8°, vertically 8°

Dimensions

560×470×320mm

Weight

about 35kg


Rotary microtome Details

microtome

microtome price

rotary microtome

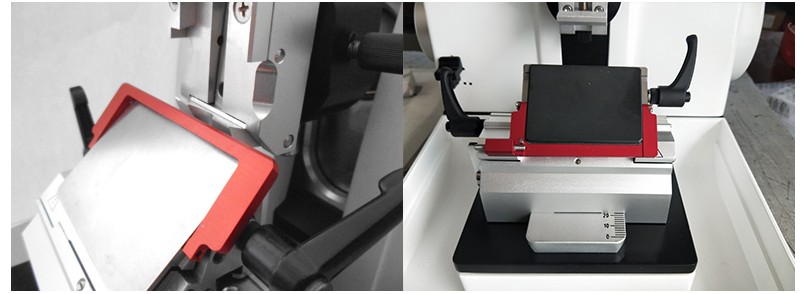

Specimen clamp adjustable Rotary Habdwheel

microtome

High quality Stainless steel blade holder Section Range

Rotary microtome specification:

Take both aesthetics and practicality into structure design

Ergonomical one-step Injection Molded housing(including fixing bottom studs) results in appropriate structure, attractive appearance and convenient operation, and enables to avoid resonance and lower the frictional resistance;

Magnetic waste tray enables easy removal for cleaning, and was designed black to blend into one harmonious whole together with the main machine.

Mechanical drive system with perfect workmanship enables durable service

Guide rails and retainer in mechanical transmission system was made in German, which are so highly precise that enables to slide with even no gap, thus results in precision and longer equipment life and free of lubrication, maintenance and noise, too;

A precise micro motion specimen feeding system which adopted the internationally most advanced no-wheel micro-transmission to ensure precision.

Precise, comfort, and safe slicing experience

Fast trimming function enables fast switch between sectioning and trimming mode;

Specimen retraction function protects specimens from blade scratching and ensures sections’ integrality;

A force balancing system in handwheel for adjusting the balancing force during slicing, making rotation light , even and smooth;

Two safety locking mechanism: the first safety lock is located on the handwheel, when activated, the specimen head can be fixed at the uppermost; the second locking system is positioned on the microtome base and locks the specimen head at any position.

The blade clamp can be moved horizontally to avoid danger from unintended touch on blade. A third of the blade can do the entire slicing, which makes the blade’s life time three times longer;

Specimen positioning: horizontally 8°, vertically 8°, cassette clamp and C clamp are optional.


microtome

microtome

microtome price

rotary microtome

microtome price

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
tissue processor
Details
Spin Non-vaccum Histology Tissue Processor equipment

YSD 260 automatic spin tissue processor and YSD 260-V automatic Vacuum spin tissue processor are equipment that perform tissue infiltration , through the combination of an efficient and well-tested technology

laboratory microtome
Details
medical laboratory equipment tissue microtome

YSD-2000 Laboratory Rotary Microtome is a good microtome with LCD screen can show section number and safety alarm function . Section : 0~25um

laboratory microtome
Details
Medical Paraffin manual hand microtome machine

YSD-2000 Laboratory Rotary Microtome is a good microtome with LCD screen can show section number and safety alarm function . Section : 0~25um

laboratory microtome
Details
Laboratory Histology Tissue Rotary Microtome

YSD-1000 Laboratory Rotary Microtome is a good microtome with LCD screen can show section number and safety alarm function . Section : 0~25um

medical refrigerator
Details
60L mini Pharmacy medical refrigerator

YSD-5V60 Pharmacy refrigerator  mini capacity  60L , 2~8 degress can be best to storage medical , vaccine and samples for long time

Mortuary equipment freezer
Details
304 Stainless steel Mortuary equipment freezer

Mortuary equipment freezer YS-6 can storage 6 corpse . Made of stainless steel and Famouse compressor

Laboratory Embedding Cassette
Details

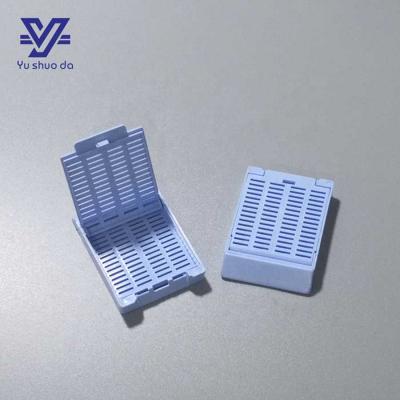

Laboratory Medical Disposable Tissue Embedding Cassette
