Microtome

/medical laboratory equipment tissue microtome

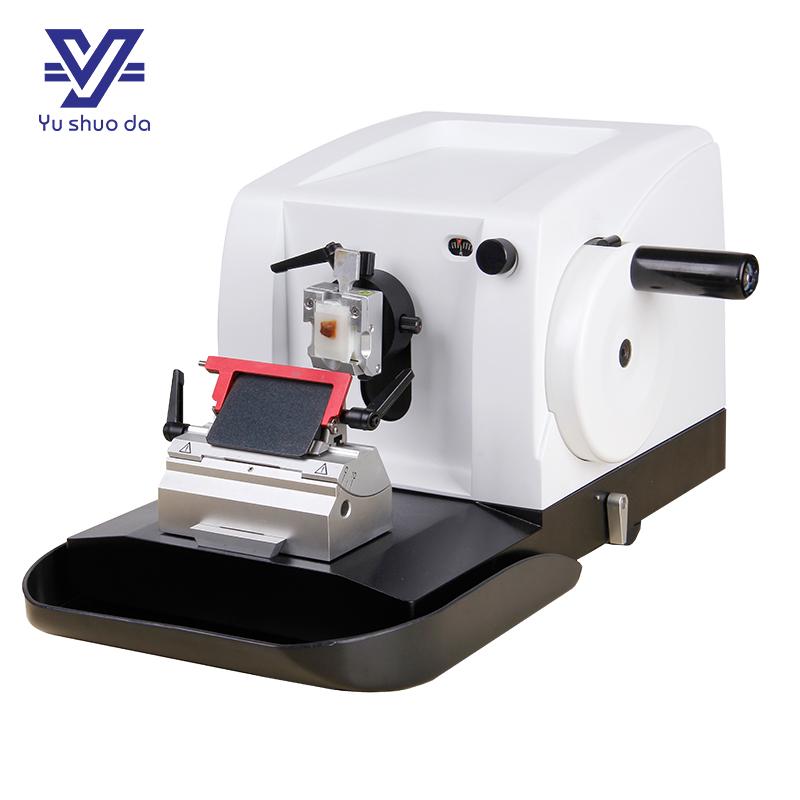

medical laboratory equipment tissue microtome

YSD-2000 Laboratory Rotary Microtome is a good microtome with LCD screen can show section number and safety alarm function . Section : 0~25um

  • Brand:

    YU SHUO DA
  • Item NO.:

    YSD-5000
  • Goods Stock:

    10
  • Product weight:

    35 kg
  • Lead Time:

    3~5 days after we confirm the order
  • Size:

    560×470×320mm
Share To :
  • Product Detail

Product Description

Medical laboratory equipment tissue microtome

YSD-2000 tissue microtome machine can be used steel knife and disposable blade . Easy to cut bone , plant , hair and fiber

Tissue Microtome Specifications

Product YSD-2000 Microtome machine

Section thickness range

0- 60μm

The sectioning thickness can be set at any valuemicrotome instrument

From 0-2 μm in 0.5 μm –increments

Form 2-10μm in 1 μm-increments

Form 10-20 μm in 2 μm-increments

Form 20-60μm in 5 μm-increments


Horizontal specimen stroke



28 mm


Maximum Specimen Size

50×40mm

Precision Error

±5%

Dimensions

420×330×330 mm (W×D×H)

Net weight

19 KG


Microtome Details

tissue microtome

microtome


microtome microtome

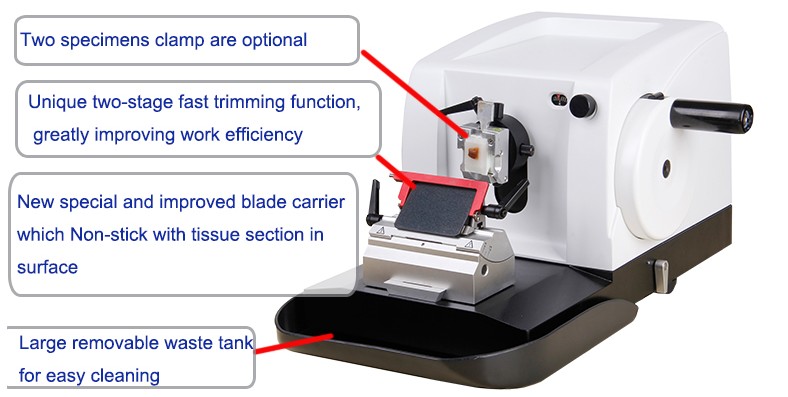

The microtome holder can move back, forth and laterally LCD show slice count with alarm system

tissue Microtome specification:

Adopting international advanced technology, precision roller guide, more precise coordination

Using high-strength alloy steel and other non-ferrous metal materials, the slicing is stable and reliable

The sample is clamped on the three-dimensional axis and locked arbitrarily, and the angle of the sample cut surface

can be adjusted.

The tool holder moves forward and backward, easy to operate

Use standard steel slicing knife or disposable blade to obtain ideal slices

The handwheel balance fine adjustment system is locked at the highest point to ensure the safety of the slicing

process

The outer cover of the sealed box does not need to be disassembled and is easy to clean

Special special fixture, suitable for hard tissue sectioning, polymer material sectioning: such as plastic, fiber, bone, plant,

hair, etc.

laboratory microtome

tissue microtome

medical laboratory equipment microtome

medical laboratory equipment microtome

medical laboratory equipment microtome
