Specimen feeding drive utilizes an intelligent control system, it has three modes: Conventional mode , Intelligence sensing mode and whole layer cutting mode
Brand:
YU SHUO DAItem NO.:
YSD-4000Goods Stock:
10Product weight:
35 kgLead Time:
3~5 days after we confirm the orderSize:
0.25 - 100μm
Product Application
Working in comfort is not a luxury but a necessity. A relaxed,ergonomic working posture is a basic prerequisite for the high levels of speed, precision, and efficiency required in modern laboratories. Day after day, the YSD-3000 rotary microtome
provides comfortable functionality without compromise. The YSD-3000 rotary microtome is the instrument of choice for all clinical histology
|

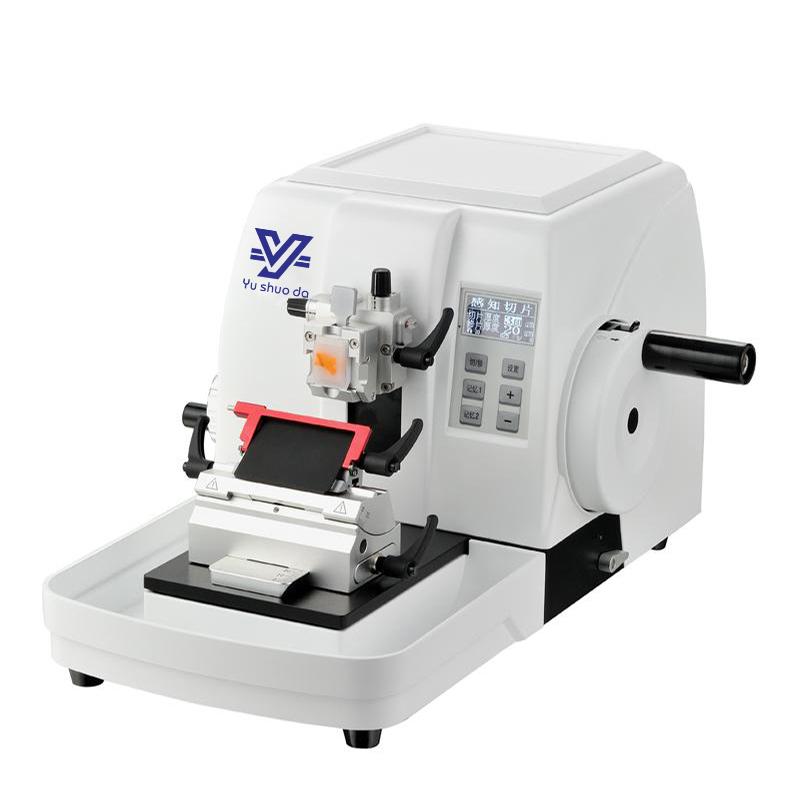

Semi -Auto Rotary Micortome YSD-4000
|
|
|
Model
|
YSD-4000
|
|
Section thickness range
|
0.25 - 100μm
|
|
Setting values
|
0.25 – 2.5μm increment 0.25μm
2.5 – 5μm increment 0.5μm 5.0 – 10μm increment 1μm 10 – 30μm increment 2μm 30 – 60μm increment 5μm 60 – 100μm increment 10μm |
|
Trimming Thickness Setting Range
|
1 – 600μm
1 - 10μm increment 1μm 10 - 20μm increment 2μm 20 - 50μm increment 5μm 50 - 150μm increment 10μm 150 - 600μm increment 50μm |
|
Retraction Setting Range
|
0—100μm ( 0 is off )
5-10-15—50 (optional) |
|
Precision error
|
± 1%
|
|
Sample orientation
|
8°along the X-Y-axis,rotable 360°
|
|
Dimensions incl. tray (L/T/H)
|
580×410×305mm(W×D×H)
|
|
Net weight
|
28kg
|
|
Warranty
|
1 year
|
Leave A MessageYSD-2000 Laboratory Rotary Microtome is a good microtome with LCD screen can show section number and safety alarm function . Section : 0~25um
YSD-2000 Laboratory Rotary Microtome is a good microtome with LCD screen can show section number and safety alarm function . Section : 0~25um
YSD-1000 Laboratory Rotary Microtome is a good microtome with LCD screen can show section number and safety alarm function . Section : 0~25um
YSD-5000 Medical Histology Equipment Rotary Microtome , section : 0~60 um with Specimen retraction function
YSD-5000 Medical Histology Equipment Rotary Microtome , section : 0~60 um with Specimen retraction function
Working in comfort is not a luxury but a necessity. A relaxed,ergonomic working posture is a basic prerequisite for the high levels of speed, precision, and efficiency required in modern laboratories. Day after day, the YSD-3000 rotary microtome provides comfortable functionality without compromise. The YSD-3000 rotary microtome is the instrument of choice for all clinical histology
Specimen feed drive is controlled by an intelligent, high precision control system, enabling semi-ultrathin slicing, starting from a thickness of 0.25μm
60wells micro centrifuge tubes rack designed for storing 0.5ml and 1.5ml micro centrifuge tubes
