Laboratory Histology Tissue Rotary Microtome

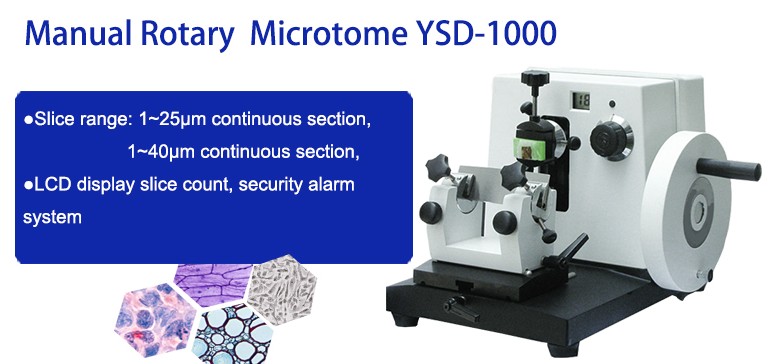

YSD-1000 Laboratory Rotary Microtome is a good microtome with LCD screen can show section number and safety alarm function . Section : 0~25um

  • Brand:

    YU SHUO DA
  • Item NO.:

    YSD-5000
  • Goods Stock:

    10
  • Product weight:

    35 kg
  • Lead Time:

    3~5 days after we confirm the order
  • Size:

    560×470×320mm
Share To :
  • Product Detail

Product Description

Laboratory Histology Tissue Rotary Microtome

YSD-1000 laboratory microtome is a good microtome with LCD screen can show section number and safety alarm function

Tissue Rotary Microtome Specifications

Product YSD-1000 Rotary Microtome

Section thickness range

0 - 25μm for continuous sectioning

The sectioning thickness can be set at any value

>25μm

Minimum Setting of Sectioning Thickness

1μm

Maximum Specimen Size

40×30mm

Precision Error

±5%

Dimensions

340×335×270mm (W×D×H)

Net weight

28 mm

Max specimen size

18.5kg


Histology Rotary microtome Details

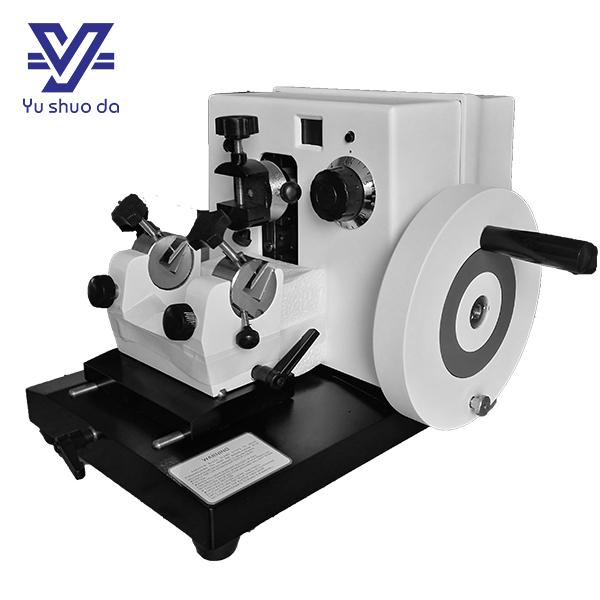

laboratory microtome

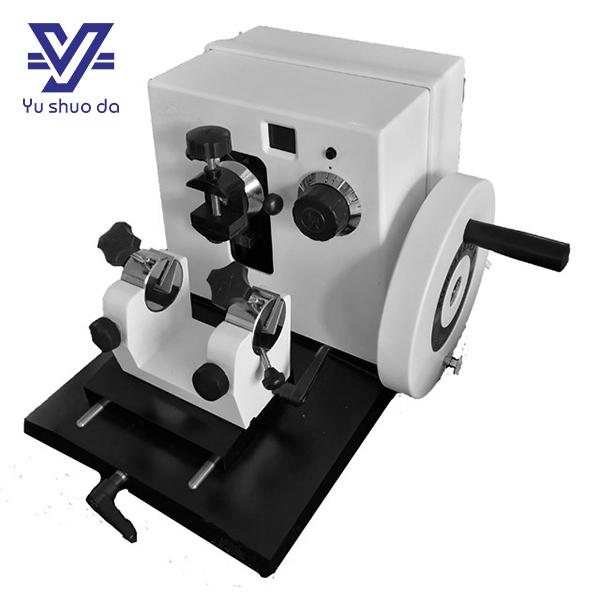

Histology Rotary microtome

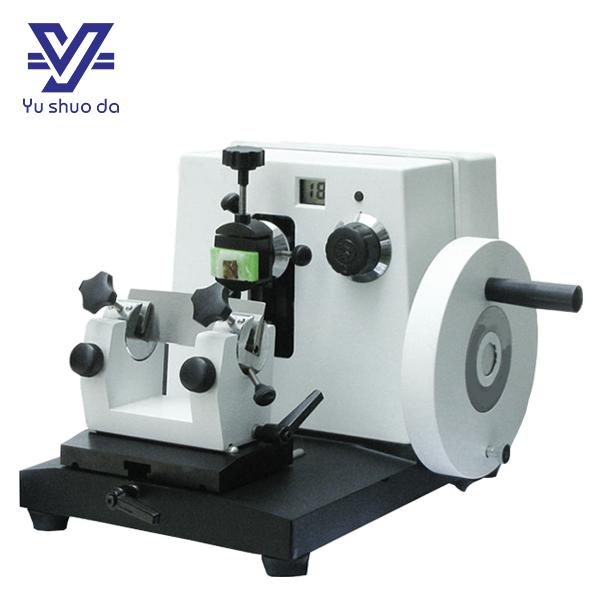

Tissue Rotary Microtome

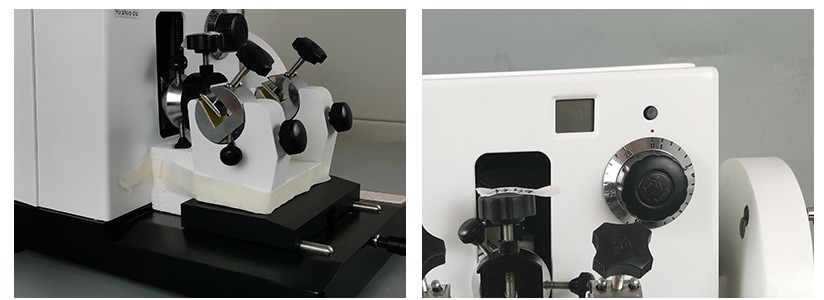

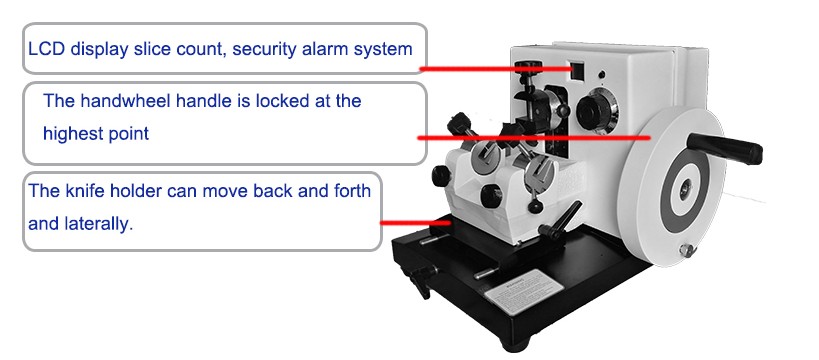

The microtome holder can move back, forth and laterally LCD show slice count with alarm system

Tissue Rotary Microtome specification:

Section range: 1~25μm continuous slicing,
>25μm arbitrarily adjustable slice thickness
1~40μm continuous slice,
>40μm arbitrarily adjust the slice thickness (optional)

Section range: 0-500μm

The minimum division value of slice adjustment: 1μm

Maximum sample size: 50×60 (mm)

Sample horizontal shift: 30mm Sample vertical shift: 55mm

Maximum movement of tool post base: 50mm Maximum movement of tool post left and right: 20mm

Section error: ±10%

The knife holder can move back and forth and laterally, which is convenient for trimming and slicing

LCD display slice count, safety alarm system

Machine size: 340x335x270(mm)

Weight of the whole machine: 19kg

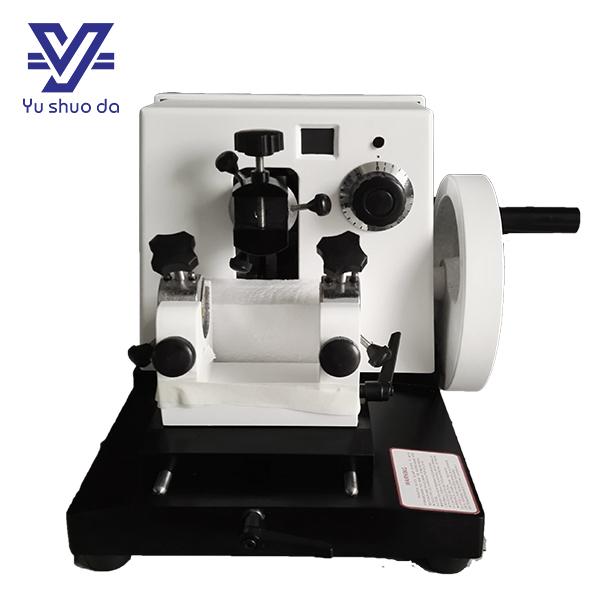

laboratory microtome

Histology Rotary microtome


veterinary operating table

veterinary surgery table
