YSD-1000 Laboratory Professional Durable Microtome

YSD-3000 Medical Pathology Rotary Microtome

Features:Streamlined housing not only improves the appearance but also facilitates the cleaning process without the need to open the housing; Uses imported cross-roller guide rails and a screw motion mechanism to ensure precision resulting in superior sectioning performance; Advanced high-precision micro-drive feed system enabled even and high-precision sectioning; Hand-wheel is rotated based on a mechanical balance mechanism, andcan be locked an any position, providing the maximum level of safety and convenience; Cassette holder can be locked at any position along each of the three axes, enabling easy adjustment of the specimen sectioning angle; Multiple functions including specimen retraction and trimming functions, along with replaceable specimen holding system;

Brand:
YU SHUO DA
Item NO.:
YSD-1000
Product Origin:
Liaoning，China
Size:
340*35*270mm(W*D*H)
Capacity:
Section thickness range：0-25um for continuous sectioning

Share To :

Inquire now

Categories

New Products

Product Detail

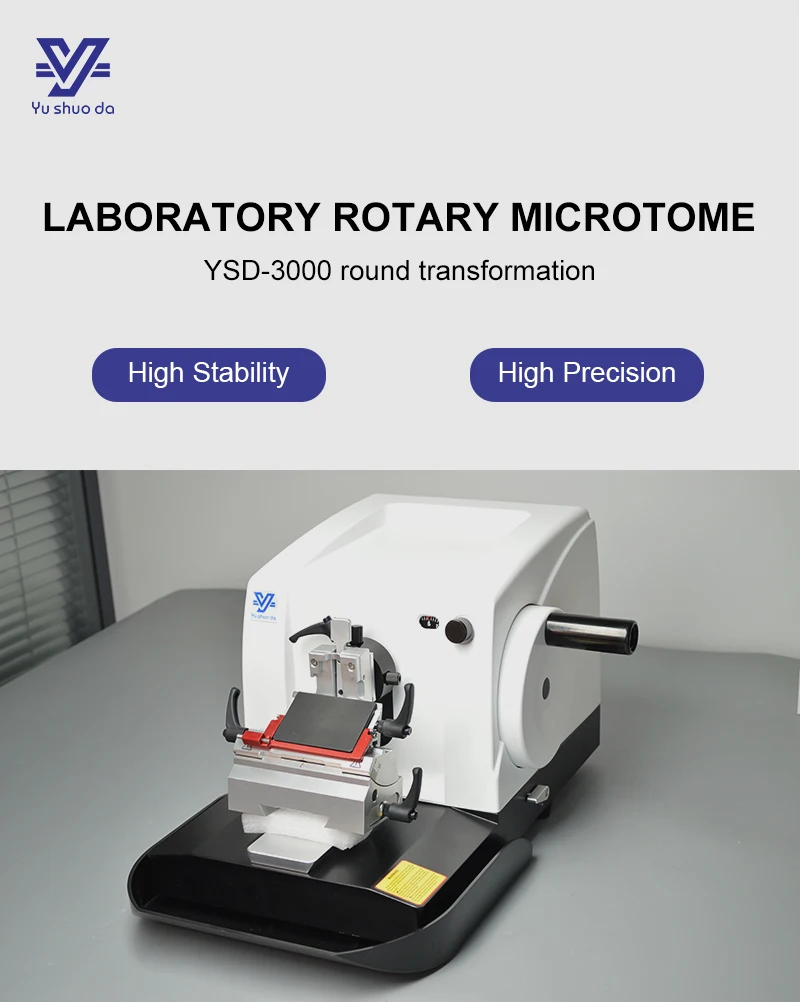

YSD-3000 Medical Pathology Rotary Microtome

FeaturesStreamlined housing not only improves the appearance but also facilitates the cleaning process without the need to open the housing; Uses imported cross-roller guide rails and a screw motion mechanism to ensure precision resulting in superior sectioning performance; Advanced high-precision micro-drive feed system enabled even and high-precision sectioning; Hand-wheel is rotated based on a mechanical balance mechanism, andcan be locked an any position, providing the maximum level of safety and convenience; Cassette holder can be locked at any position along each of the three axes, enabling easy adjustment of the specimen sectioning angle; Multiple functions including specimen retraction and trimming functions, along with replaceable specimen holding system;

Medical Pathology Rotary Microtome

Small coarse-advance hand-wheel is close to the operator, in accordance with an ergonomic design. The precise positioning system is not only easy to use, but also provides accurate X-and Y-axis adjustment; Easy and fast switchi9ng between different specimen clamps (two options:paraffin block clamp and cassette clamp); The red bar on the blade holder covers the whole length of blade to protect the user and the push bar enables easy changing of the blade; The balde holder can be laterally moved and adjusted, without the need to manually move the blade, enabling use of the full length of the blade(slicing at three different segments); Hand-wheel balance is precisely adjusted and be locked an any position to ensure the safety and convenience of sectioning; Well-designed tray on the top of housing, convenient use; Magnetically fixed large waste large tray is easy to install and uninstall.

Rotary microtome Technical specifications

Section thickness setting range: 0~60um

Section thickness setting options: 0~10um

increment 1um 10~20um

increment 2um 20~60um

increment 5um

Minimum setting of sectioning thickness: 1um

Precision error :±1%

Maximumspecimen size: 60*50mm

Total horizontal specimen feed: 29mm

Vertical specimen stoke: 60mm

Specimen retraction: 0~28um

Specimen orientation: XY-8°

Dimensions: 570*440*290mm (W*D*H)

Netweight: 28kg

Rotary Microtome Paramenters

Medical Pathology Rotary Microtome
Section thickness setting range	0~60um
Section thickness setting options	0~10um increment 1um
	10~20um increment 2um
	20~60um increment 5um
Minimum setting of sectioning thickness	1um
Precision error	±1%
Maximum specimen size	60*50mm
Total horizontal specimen feed	29mm
Vertical specimen storke	60mm
Specimen retraction	0~28um
Specimen orientation	XY-8°
Dimensions	570440290mm (WDH)
Net weight	28kg

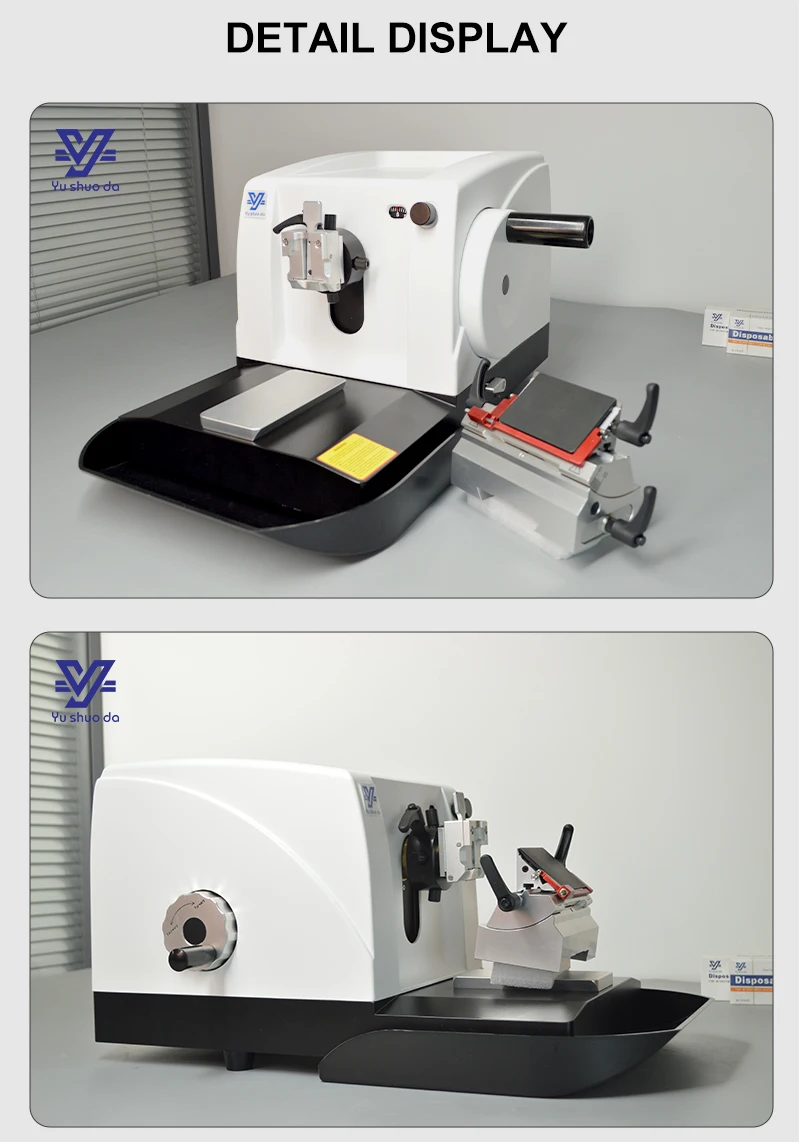

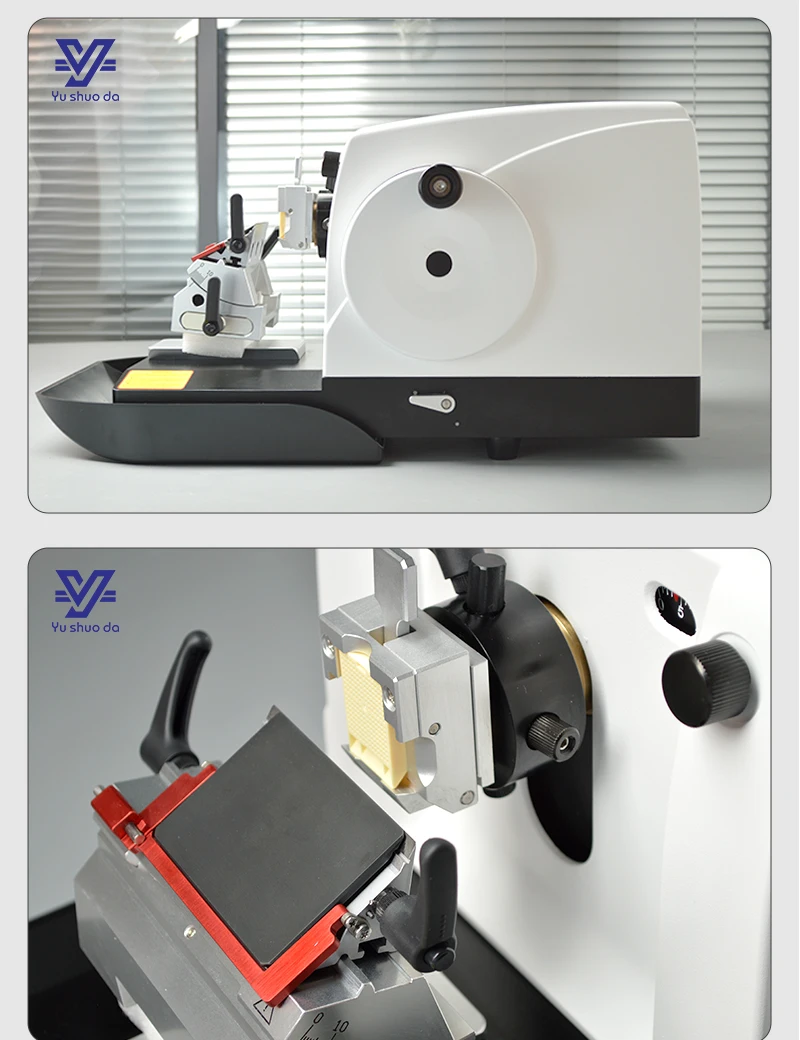

Rotary Microtome Details Images

Rotary Microtome Packing

Company Introduction

SHENYANGYU SHUO DASECIENCE AND TECHNOLOGY LTDis a professional and leading manufacture company engaged in produce and sale of Medical refrigerator , Morgue Products , Lab equipment and Lab consumables .

We have complete design, production, quality inspection and after-sales departments.ODM and OEM services are available.

We focus on product quality and continuously improve and improve. We are motivated to be the best supplier of your laboratory equipment.
