Laboratory for tissue sectting rotary paraffin microtome

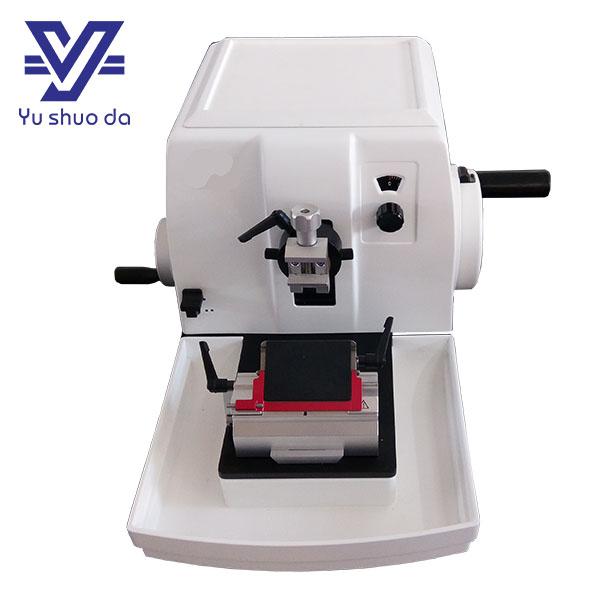

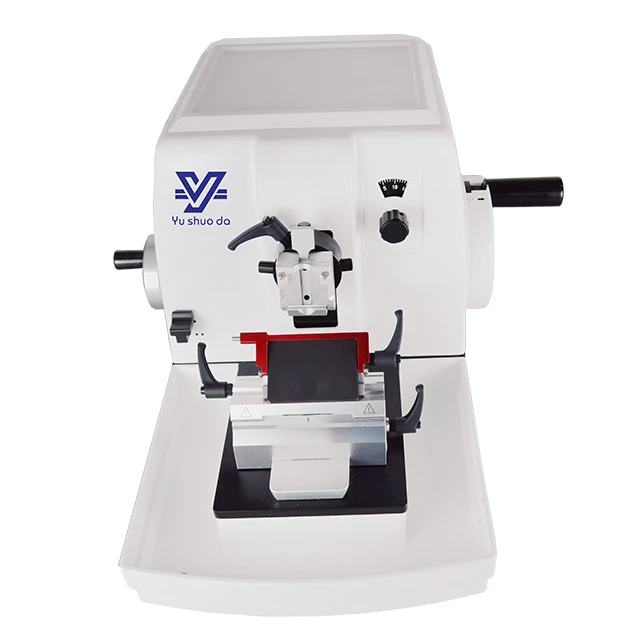

Yushuoda Rotary Paraffin Microtome YSD-5000

The Microtome YSD-5000 is designed to meet multiple requirements of histology or histopathology labs. It is also suitable for the use in research labs as well as industrial quality assurance. In being manual, the MicrotomeYSD-5000is flexible to use at any place in the laboratory.

Brand:
YU SHUO DA
Item NO.:
YSD-5000
Goods Stock:
10
Product weight:
35 kg
Lead Time:
30 days after we confirm the order
Product:
rotary paraffin microtome
Size:
590*500*330mm
Matrial:
high quality material

Share To :

Inquire now

Categories

New Products

Product Detail

Yushuoda Rotary Paraffin Microtome YSD-5000

With its high-precision mechanics inside, the MicrotomeYSD-5000permits quality sections, while maintaining a high, consistent throughput. Great functionality and the appealing design are the key features of our microtome. Optimal user comfort enables a rapid, safe and smooth sectioning, even under heavy workload.

The integrated sectioning waste tray is resistant to xylene, and can be detached for cleaning.

Medical Histology Equipment Rotary Microtome

Detailed Image

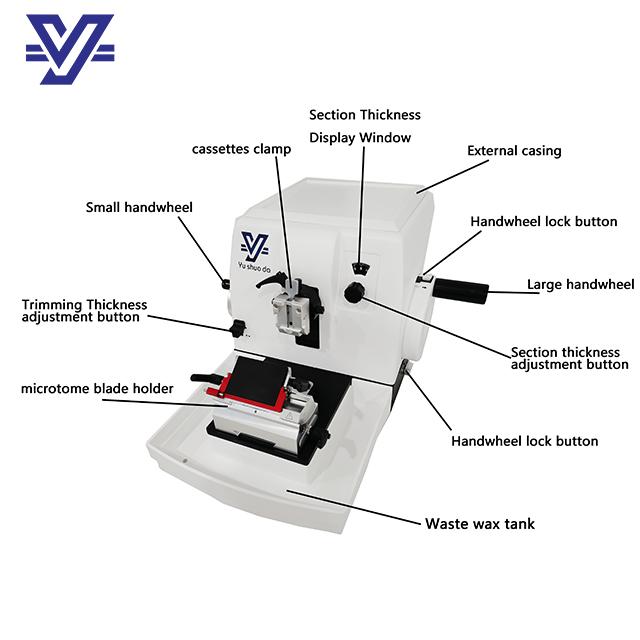

Below is an overview of the names of various parts of the slicing machine YSD-5000

Medical Histology Equipment Rotary Microtome price

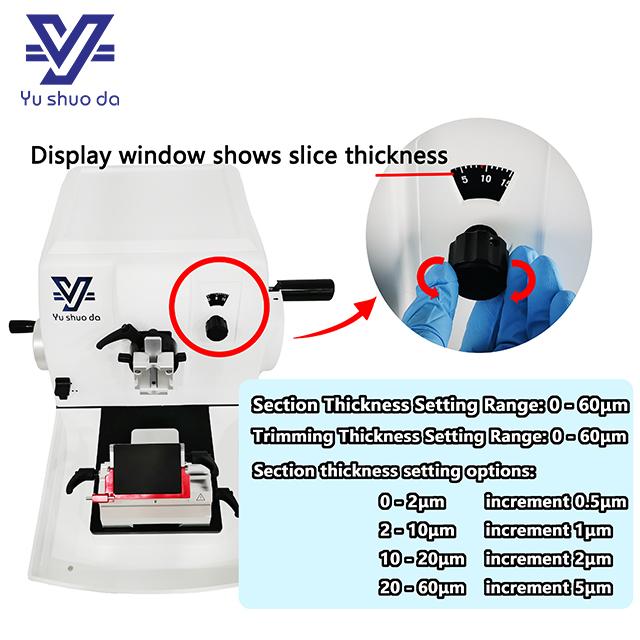

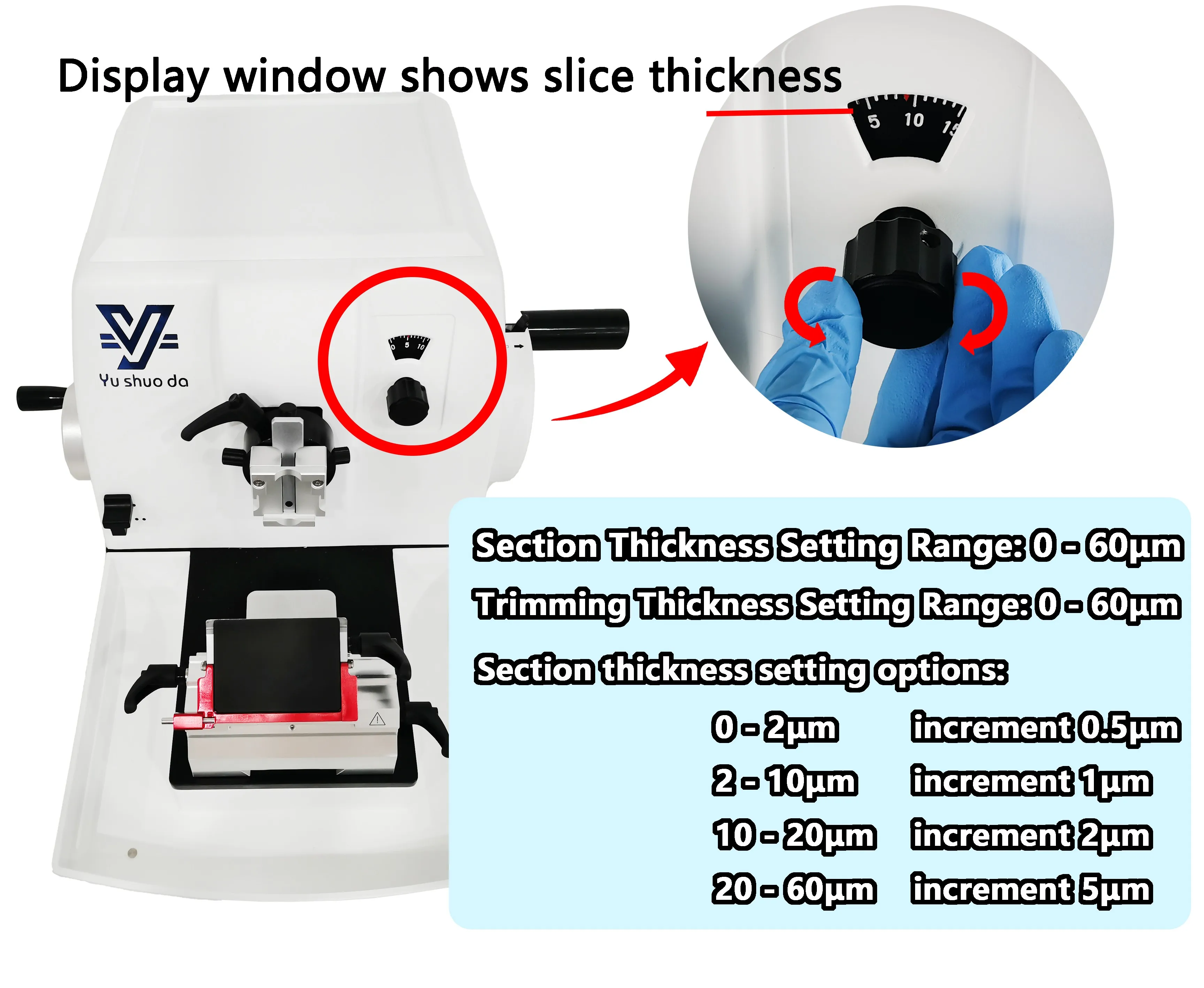

The microtome YSD-5000has a display window,which can show slice thickness.

Section Thickness Setting Range:0–60μm

Trimming Thickness Setting Range:0- 60μm
Section thickness settingoptions:
0–2μm increment 0.5μm

2–10μm increment 1μm
10–20μm increment 2μm
20–60μm increment 5μm

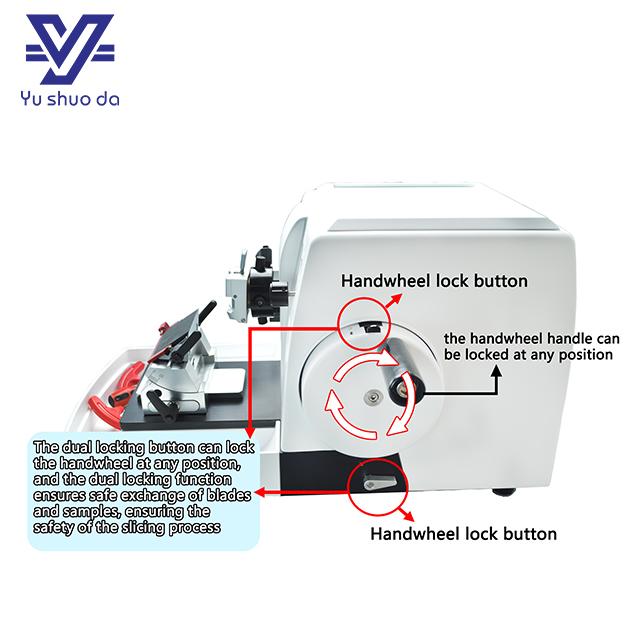

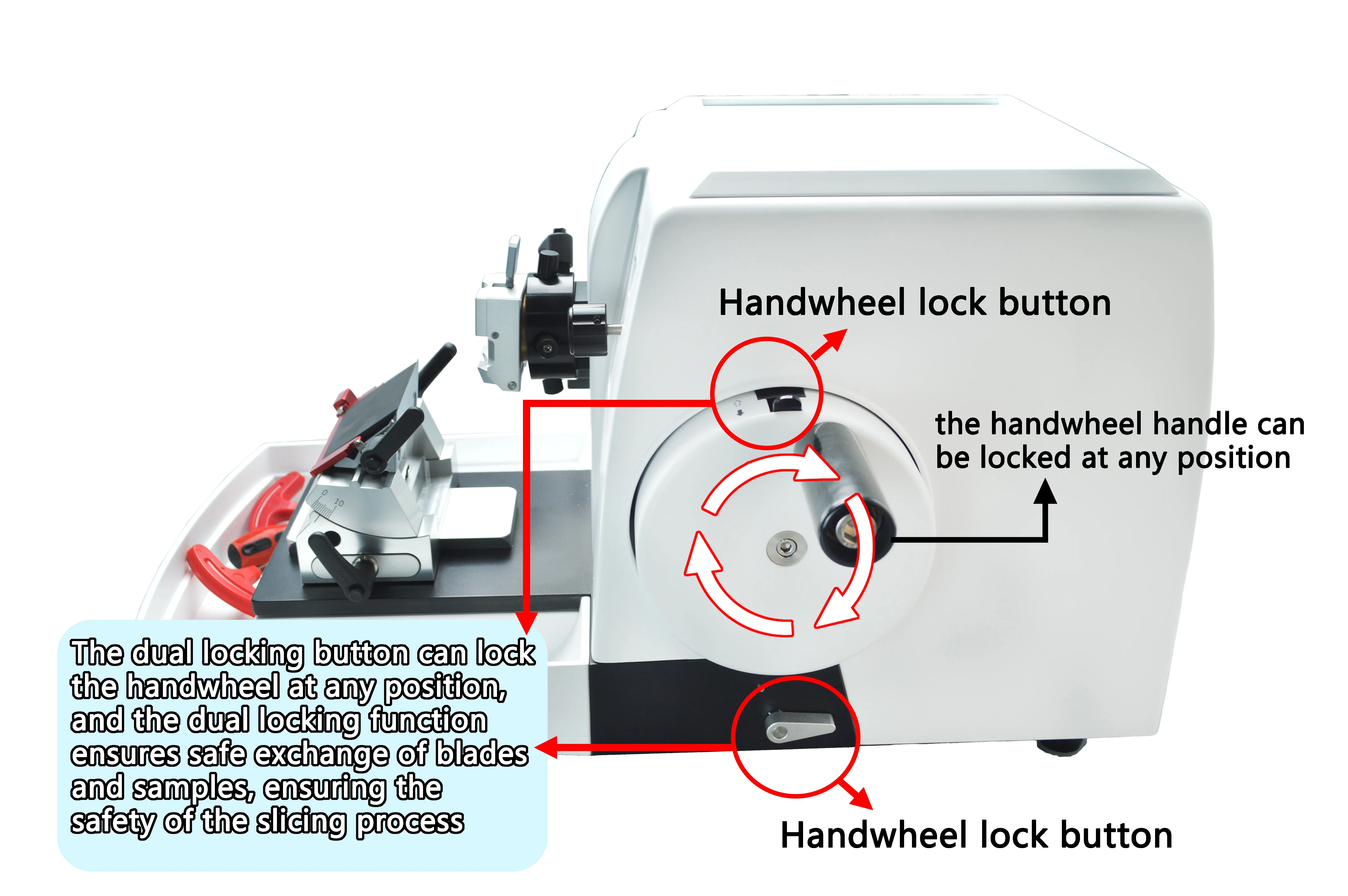

The dual locking button can lock the handwheel at any position,and the dual locking function ensures safe exchange of blades and samples,ensuing the safety of the slicing process.

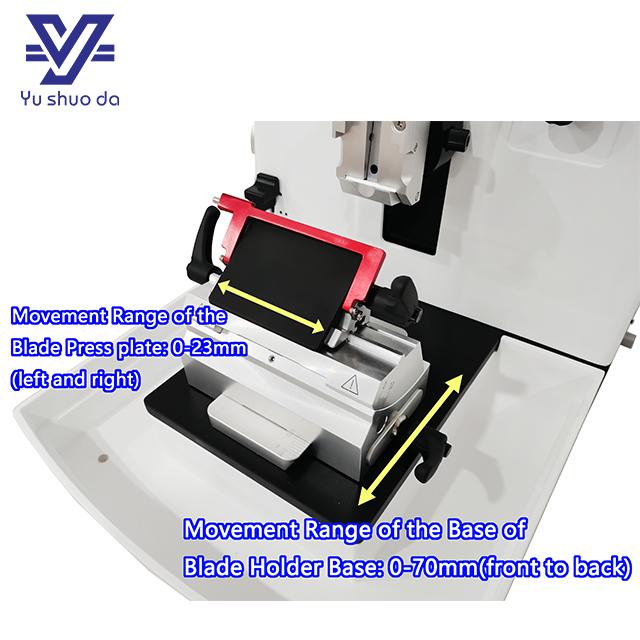

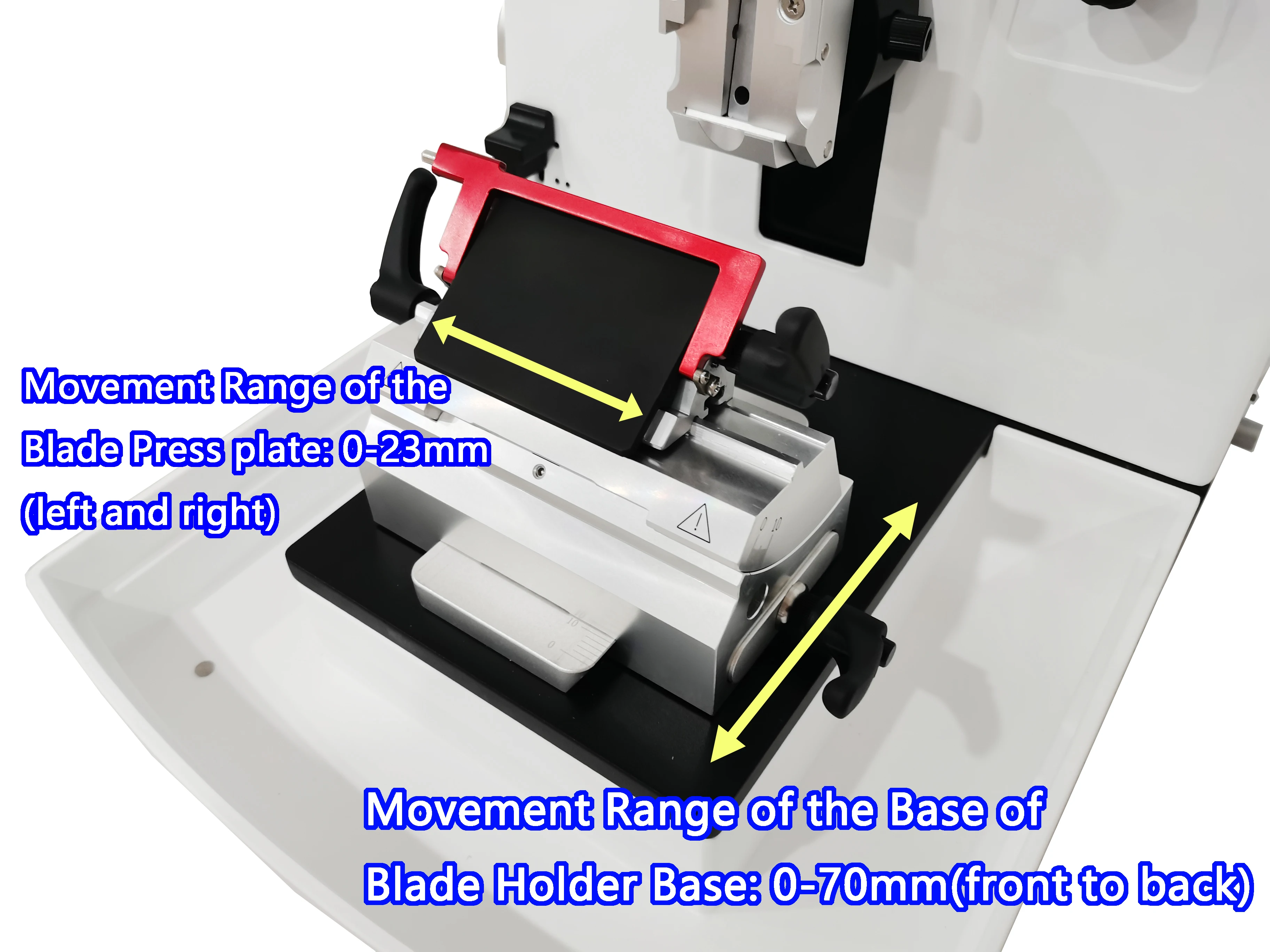

Movement Range of the Base of BladeHolder Base: 0-70mm (front to back)
Movement Range of the Blade Press plate: 0-23mm(left and right)

PS:The microtome blade holder can be sold separately

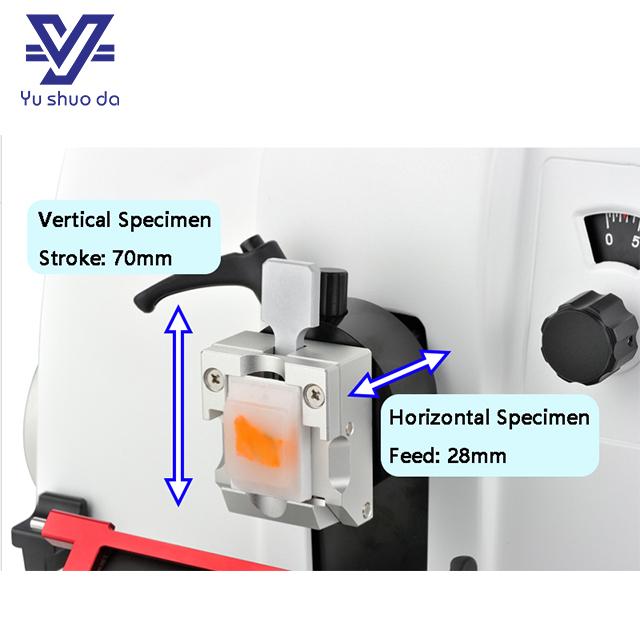

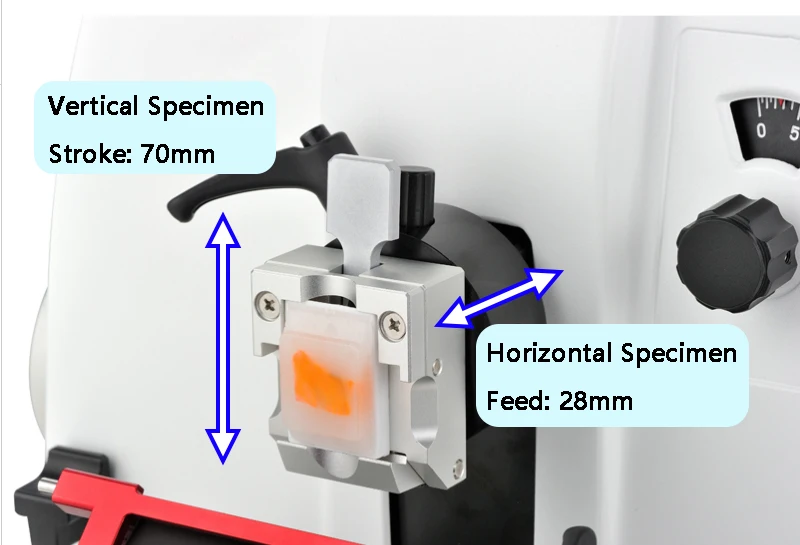

Horizontal Specimen Feed:28mm;
Vertical Specimen Stroke:70mm.

Specimen Holder Rotation: at any angle within 360°
Specimen Orientation:XY – 8°

The coarse handwheel can rotate clockwise or counterclockwise to control forward or backward movement.

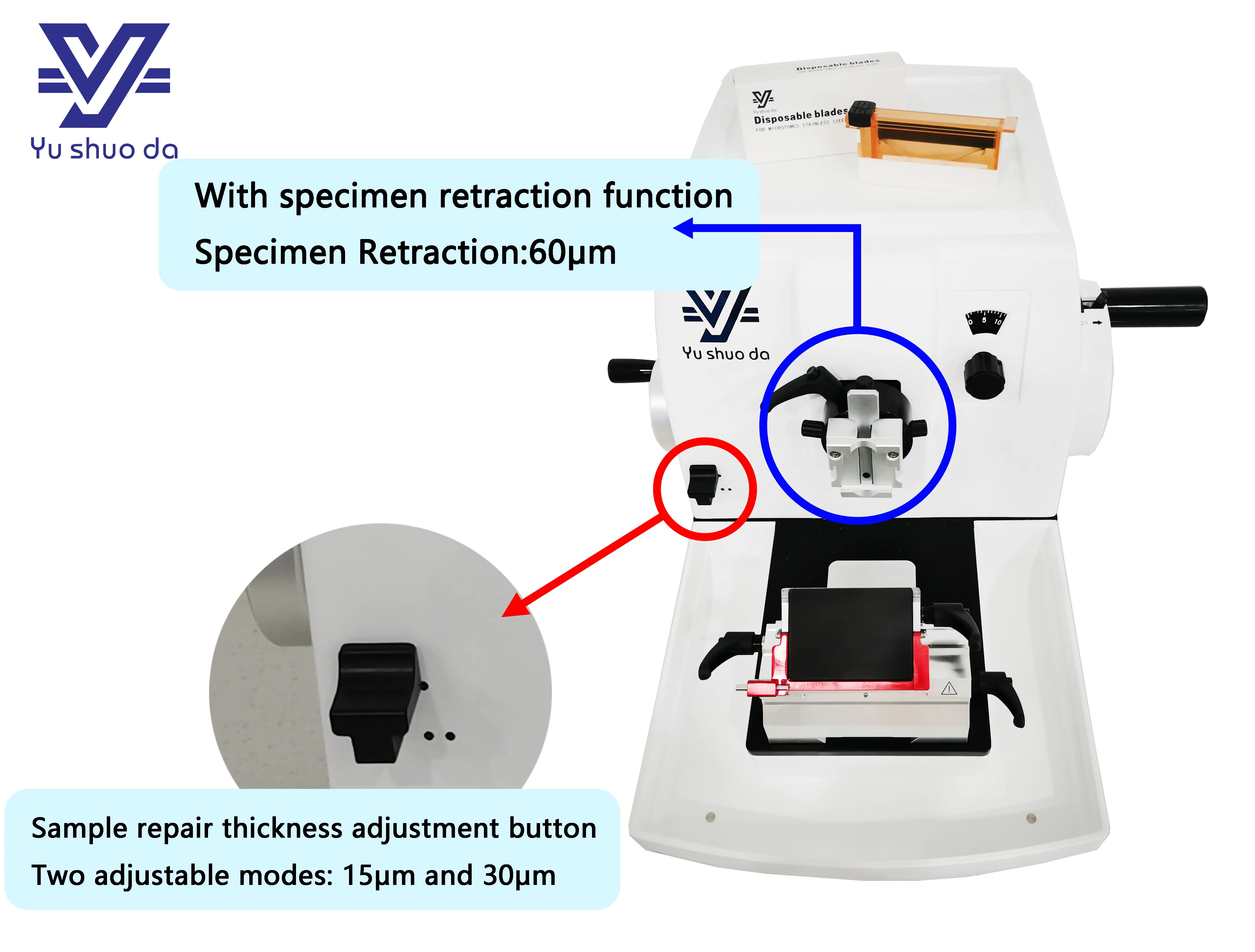

The tissue paraffin microtome YSD-5000 with specimenretraction function.The specimen retraction is 60μm.

The microtome side has a sample repair thickness adjustment button,2 adjustable modes:15μm and 30μm.

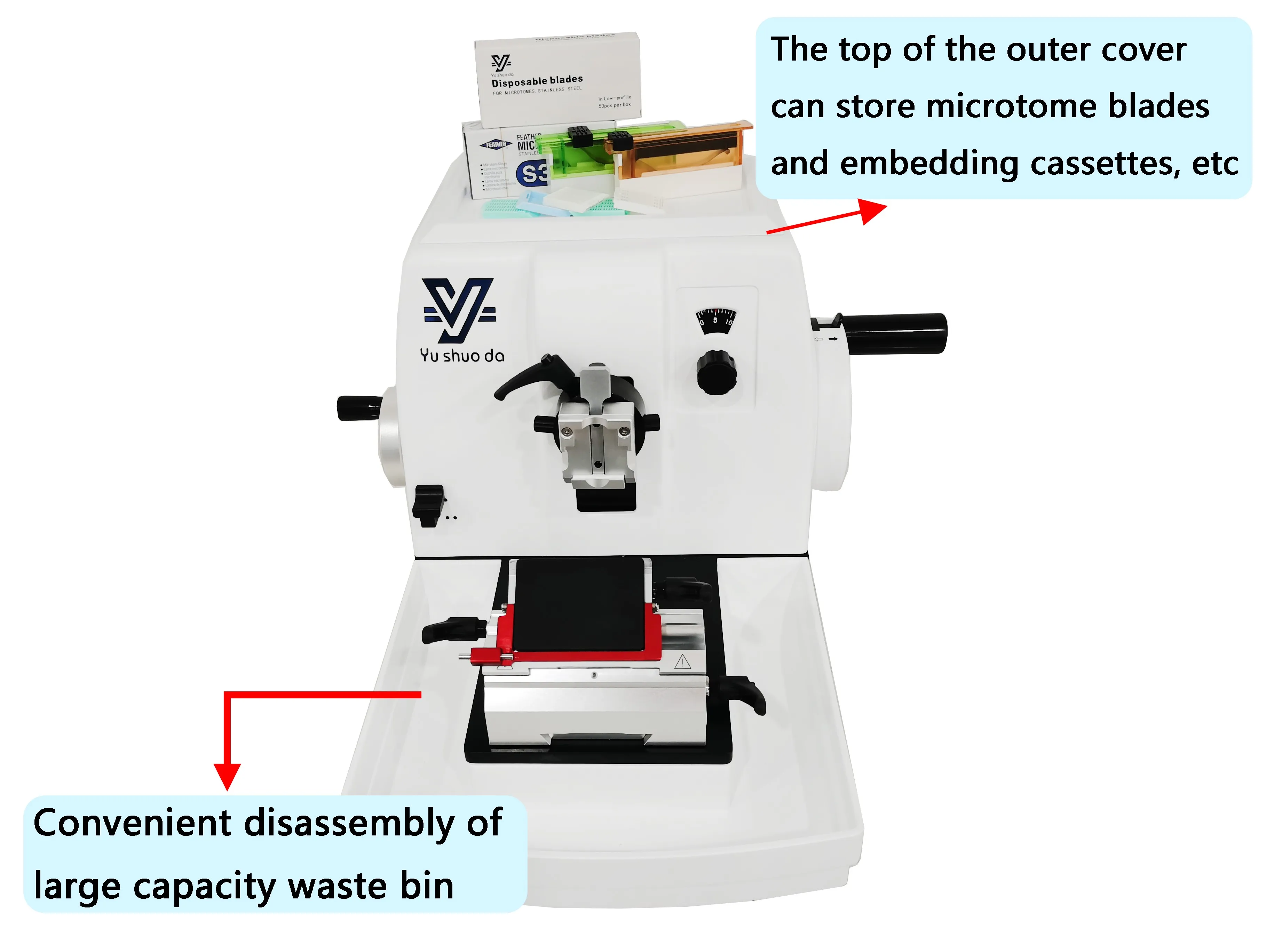

The top of the microtome outer cover can store microtome blades and embedding cassettes,etc.

The paraffin microtome convenient diasaaembiy of a large capacity waste bin.

Specification

Rotary Micortome YSD-5000
Model	YSD-5000
Section thickness range	0- 60μm
Setting values	Setting values : From 0-2 um in 0.5 um –increments
	Form 2-10um in 1 um-increments
	Form 10-20 um in 2 um-increments
	Form 20-60um in 5 um-increments
Trmming section range	0- 60μm
Specimen Retraction	60μm(optional)
Horizontal specimen stroke	28 mm
Vertical specimen stroke	70mm
Precision error	± 5%
Sample orientation	8°along the X-Y-axis,rotable 360°
Maximum section size	70 × 70mm
Size	590500330mm
Net weight	38kg
Warranty	1 year
