Brand:
YU SHUO DAItem NO.:
YSD-300Payment:
L/C D/A D/P T/T Western Union MoneyGramProduct Origin:
Liaoning ChinaGoods Stock:
50Shipping Port:
Dalian, ShanghaiLead Time:
7~10 days after paymentSize:
231.5*69*61cm(W*D*H)Capacity:
4L

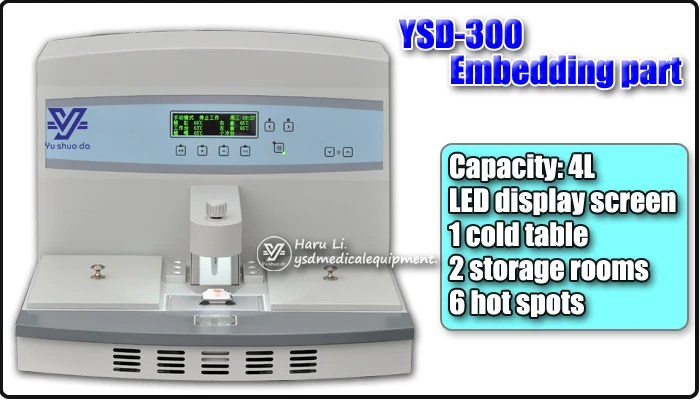

Embedding center Reliability and Key Features
* Fully programmable computer control allows automatic system start and stop anytime (weekly).
* Temperature is precisely measured by temperature-sensing integrated blocks made in USA, and is LCD-displayed with icons demonstrating current working status.
* Five heated areas, including Paraffin Chamber, Paraffin Dispenser, left and right Thermal Storage Compartments, and heating plate (working area), are individually controlled and work independently without interference from each other.
* Five temperature-control channels and multiple overheating protection mechanisms provide safe, reliable, and energy-saving protection.
* Automatic memory and restoration functions: After startup, all preset temperature data are automatically stored in the system time.
|
Model Number
|
YSD-300
|
|
Product name
|
Tissue embedding center
|
|
Power
|
180W;300W;1000W
|
|
Net weight
|
84KG
|
|
Size
|
231.5*69*61Cm(W*D*H)
|
|
Paraffin Chamber Capacity
|
4 liters
|
|
Working Voltage
|
AC AC220V±10% 50HZ (standard model);AC 110V ±10% 60HZ
|
|
Temperature Range of Forceps Wells
|
Room temperature to 85℃
|
|
Temperature Range of Paraffin-melting Chamber
|
Room temperature to 85℃
|
|
Temperature Range of Thermal Storage Compartments
|
Room temperature to 85℃
|
|
Temperature Range of Heated working Areas
|
Room temperature to 85℃
|
|
Temperature Range of Paraffin dispenser
|
Room temperature to 85℃
|
|
Temperature Control precision
|
±1%
|
|
Paraffin Flow Control
|
Paraffin flow control via finger touch plate and optional foot pedal
|
|
Working Temperature of Cryo-Module
|
≤-20℃
|

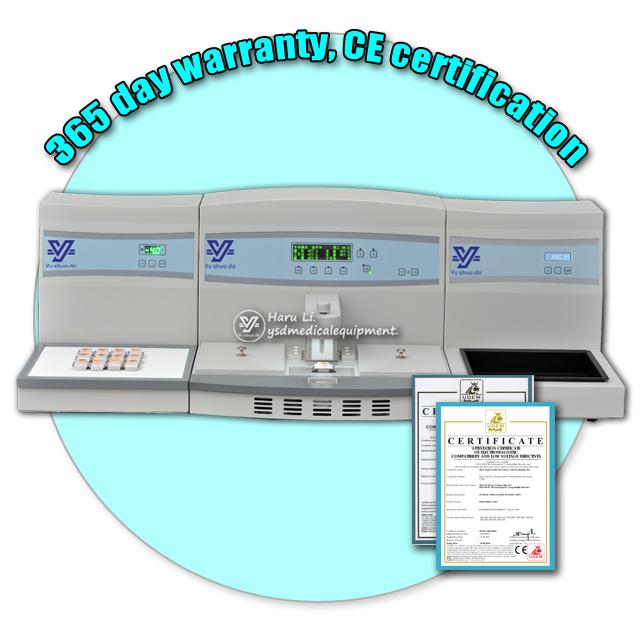

Leave A MessageTissue embedding is a station with cooling plate, embedding center and conserving table. In embedding center, the temperature of dissolving paraffin can be adjusted through the electronic display. The minimum working temperature can be less than or equal to minus 20 degrees Celsius. There are a mini cooling plate and storage box in embedding center.
Tissue embedding is a station with cooling plate, embedding center. In embedding center, the temperature of dissolving paraffin can be adjusted through the LED. The minimum working temperature can be less than or equal to minus 20 degrees Celsius. There are a mini cooling plate and storage box in embedding center. The equipment can be purchased as a whole or separately.
Tissue embedding is a station with cooling plate, embedding center. In embedding center, the temperature of dissolving paraffin can be adjusted through the LED. There are a mini cooling plate and thermal chamber, paraffin dispenser, paraffin tank, paraffin waste tray, forceps holder, cooling plate in the whole set. The equipment can be purchased as a whole or separately.
YSD-330 Yushuoda Pathology Tissue Embedding Center with Large capacity 6.9L
YSD-300 Tissue Embedding Center station with Cold plate and hot Plate Lage capacity :4L , temperature arrange is RT~85 ℃
YSD-300 Tissue Embedding Center station with Cold plate and hot Plate Lage capacity :4L , temperature arrange is RT~85 ℃
Pathological Embedding Center Embedding machine is a machine used for fixing and wrapping biological tissue samples, mainly for histological research and pathological diagnosis in medical pathology laboratories, for the purpose of slicing and staining.
Embedding center cooling plate The embedding machine cold table is a device used for making pathological sections, which is used to control the temperature of the cold table and ensure that the sections can quickly cool and solidify in a short period of time. The embedding center cooling platform can accelerate the cooling rate of the tissue after embedding, reducing certain physical and chemical changes caused by prolonged exposure to high temperatures. This rapid cooling effect can ensure the stability and reliability of the sample.
