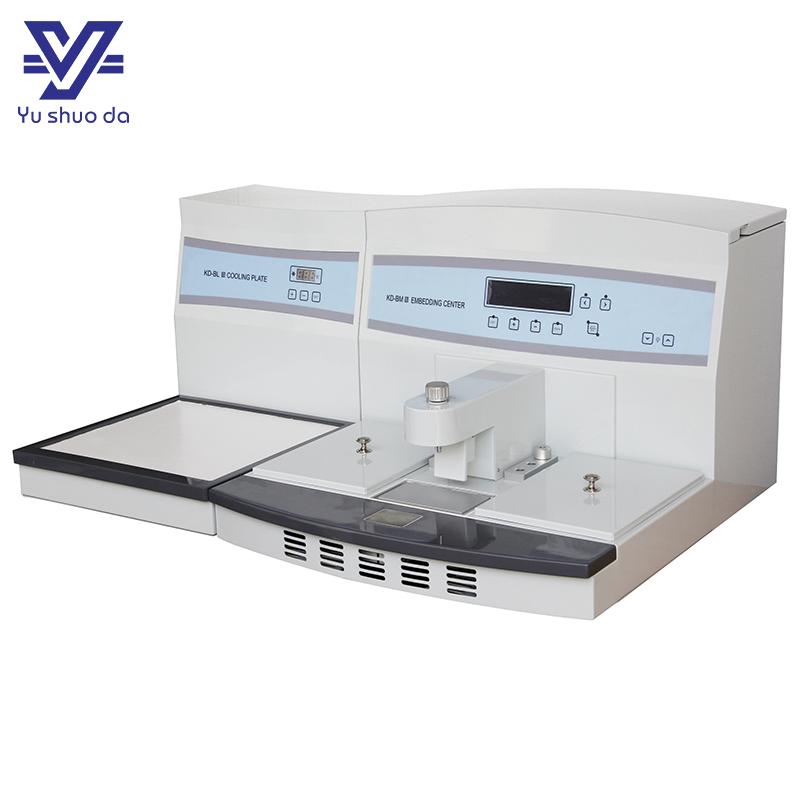

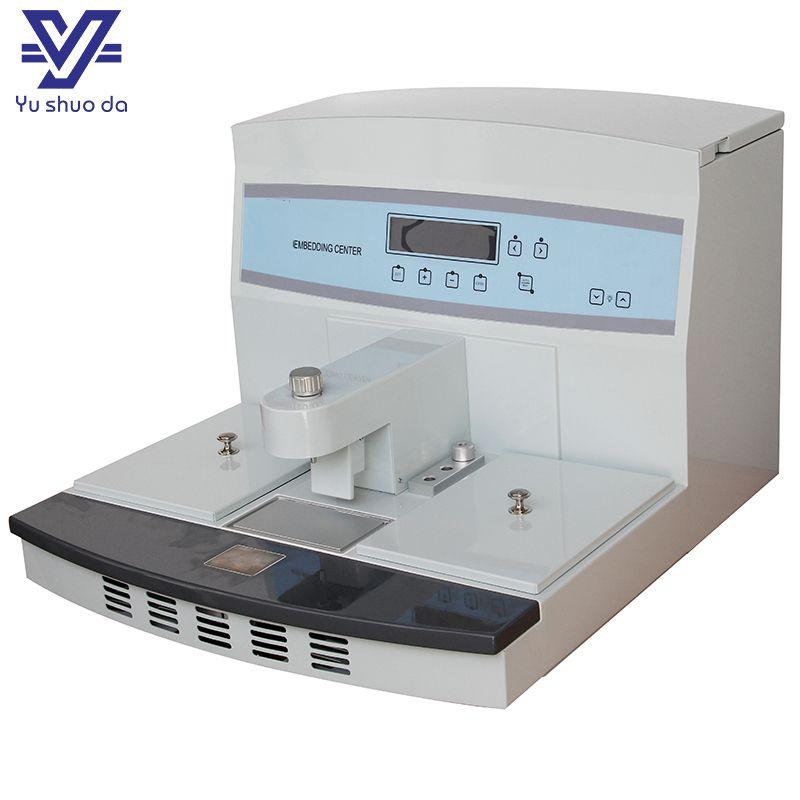

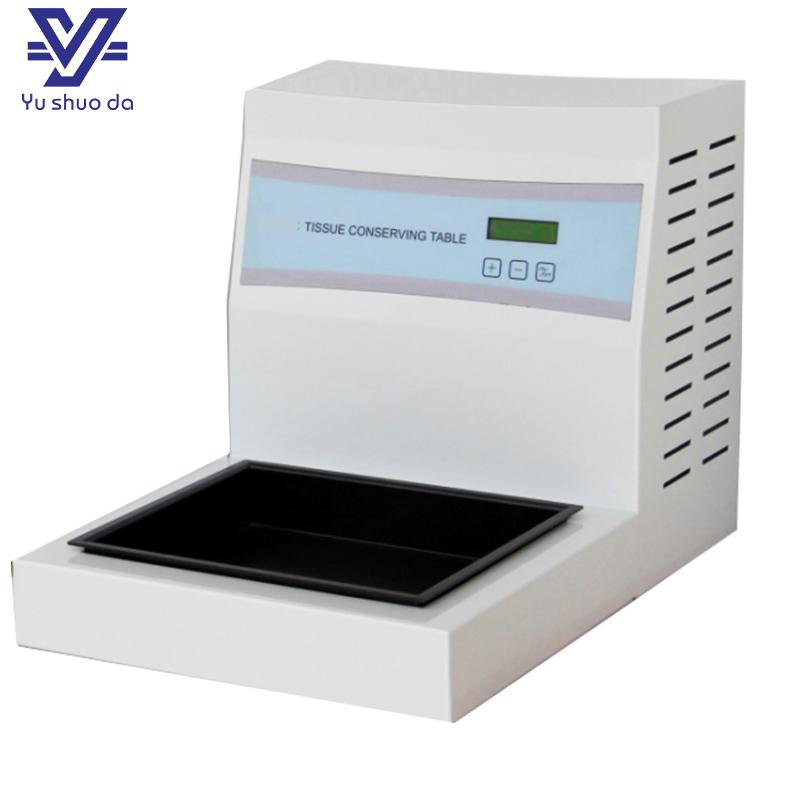

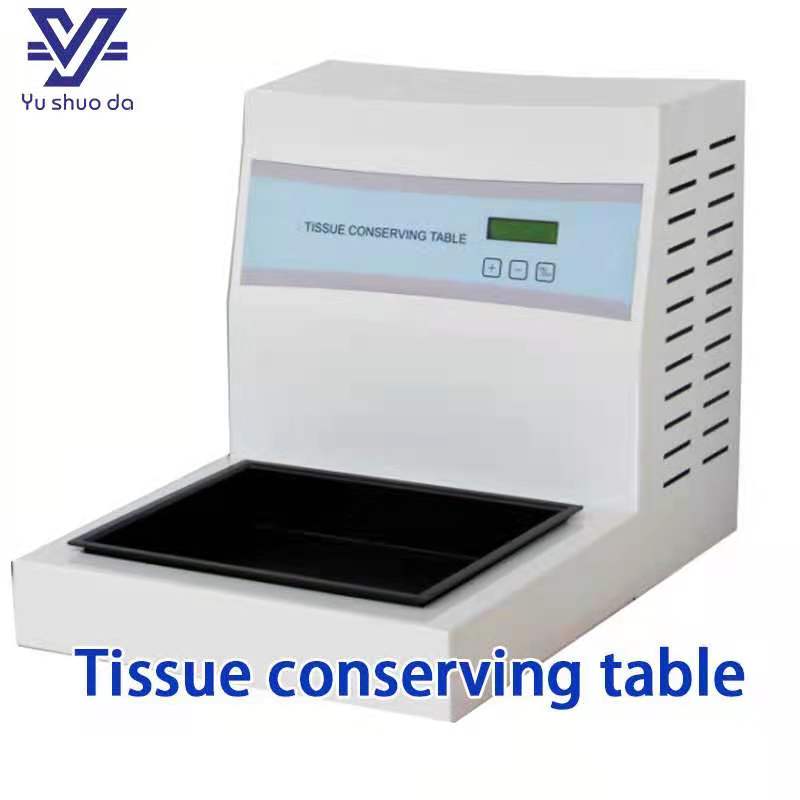

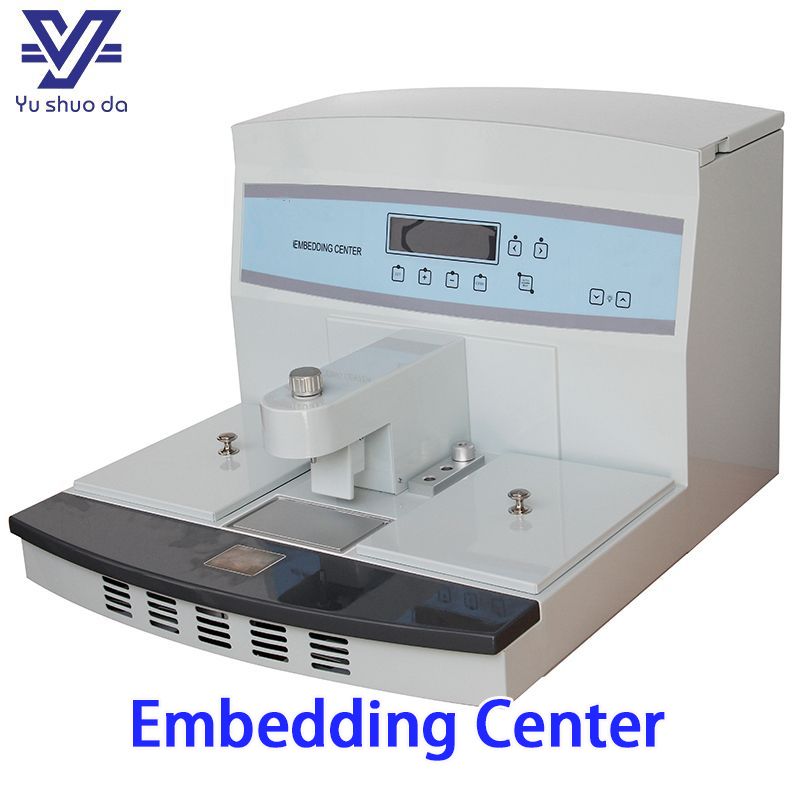

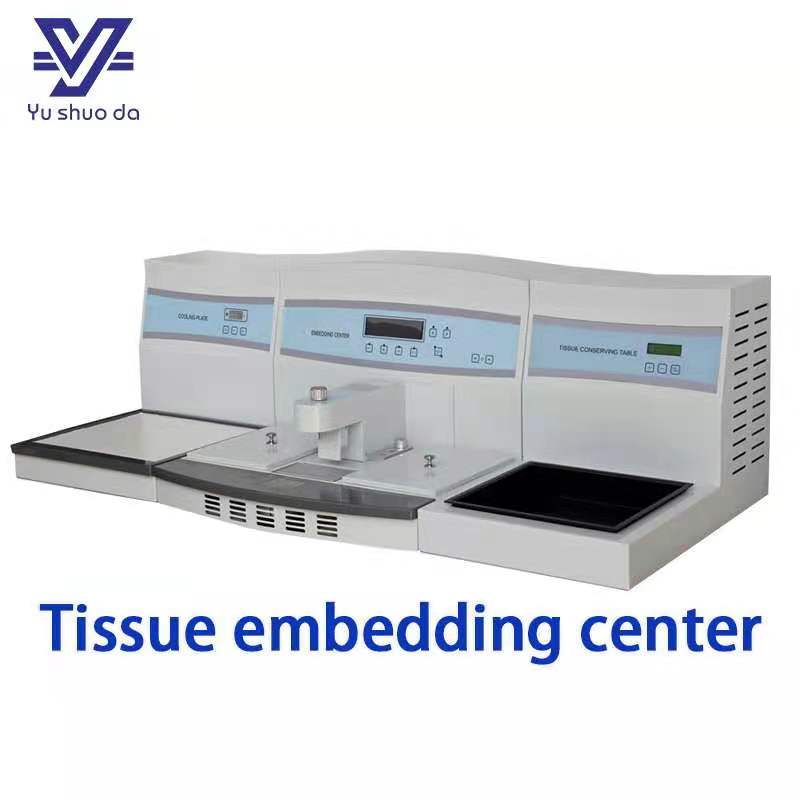

Tissue embedding is a station with cooling plate, embedding center and conserving table. In embedding center,

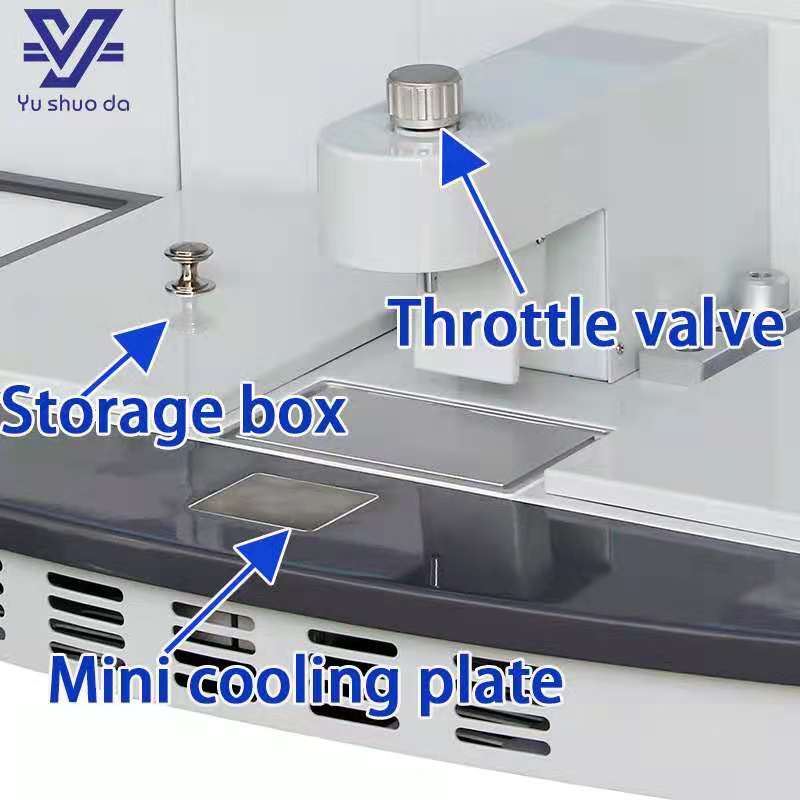

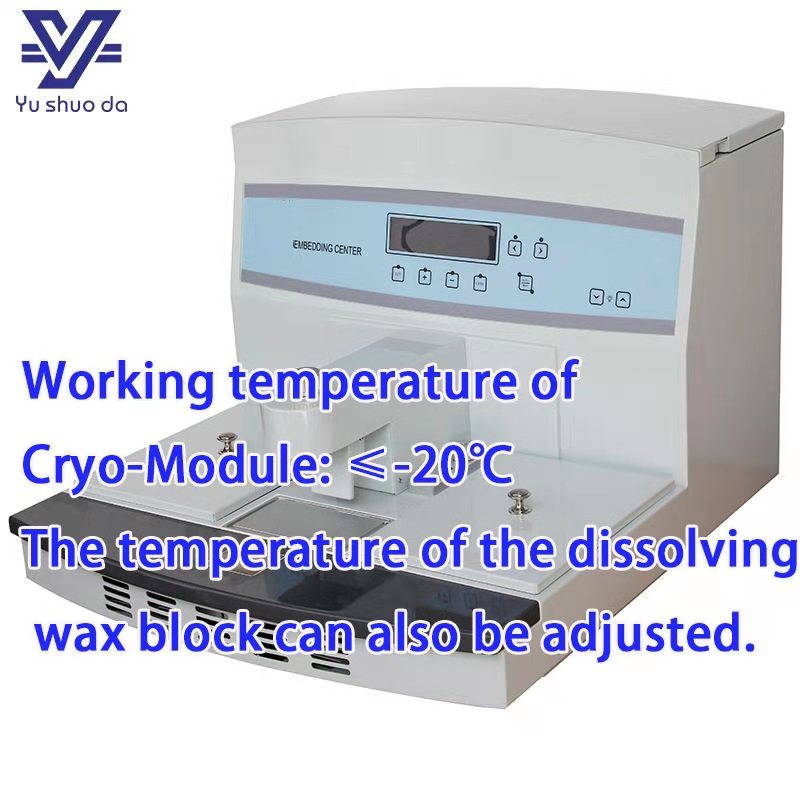

the temperature of dissolving paraffin can be adjusted through the electronic display. The minimum working temperature can be less than or equal to minus 20 degrees Celsius. There are a mini cooling plate and storage box in embedding center.
Brand:
YU SHUO DAItem NO.:
YSD-300Payment:
L/C D/A D/P T/T Western Union MoneyGramProduct Origin:
Liaoning ChinaGoods Stock:
50Shipping Port:
Dalian, ShanghaiLead Time:
7~10 days after paymentSize:
231.5*69*61cm(W*D*H)Capacity:
4L
Product Description
High quality pathology 4L tissue embedding and cooling plate station
Reliability And Key Features
1. Fully programmable computer control allows automatic system start and stop anytime (weekly).

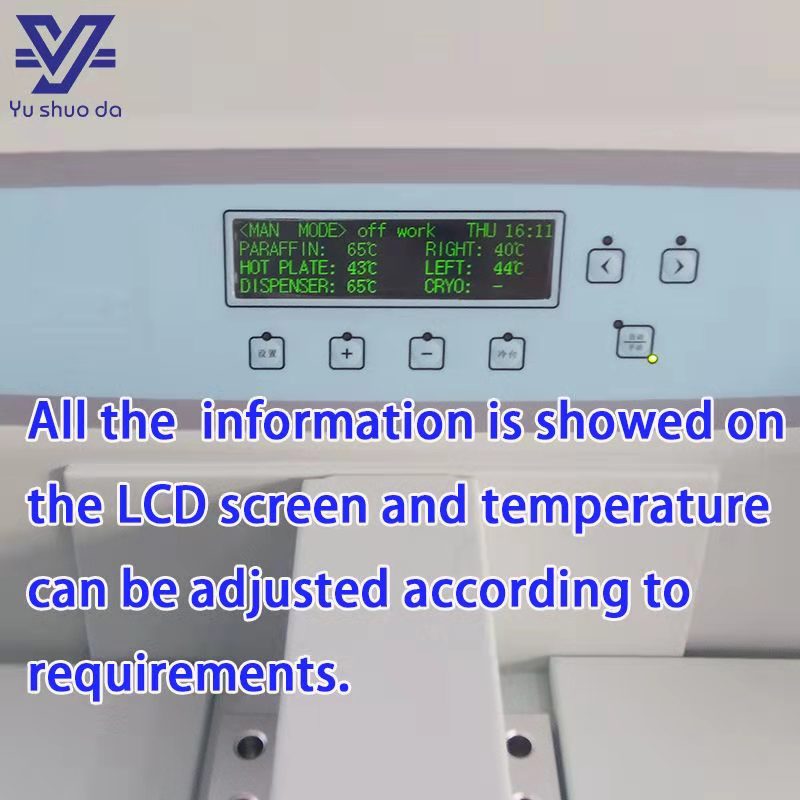

2. Temperature is precisely measured by temperature-sensing integrated blocks made in USA, and is LCD-displayed with icons demonstrating current working status.
3. Five heated areas, including Paraffin Chamber, Paraffin Dispenser, left and right Thermal Storage Compartments, and heating plate (working area), are individually controlled and work independently without interference from each other.
4. Five temperature-control channels and multiple overheating protection mechanisms provide safe, reliable, and energy-saving protection.
5. Automatic memory and restoration functions: After start up, all preset temperature data are automatically stored in the system.
Ergonomic Design

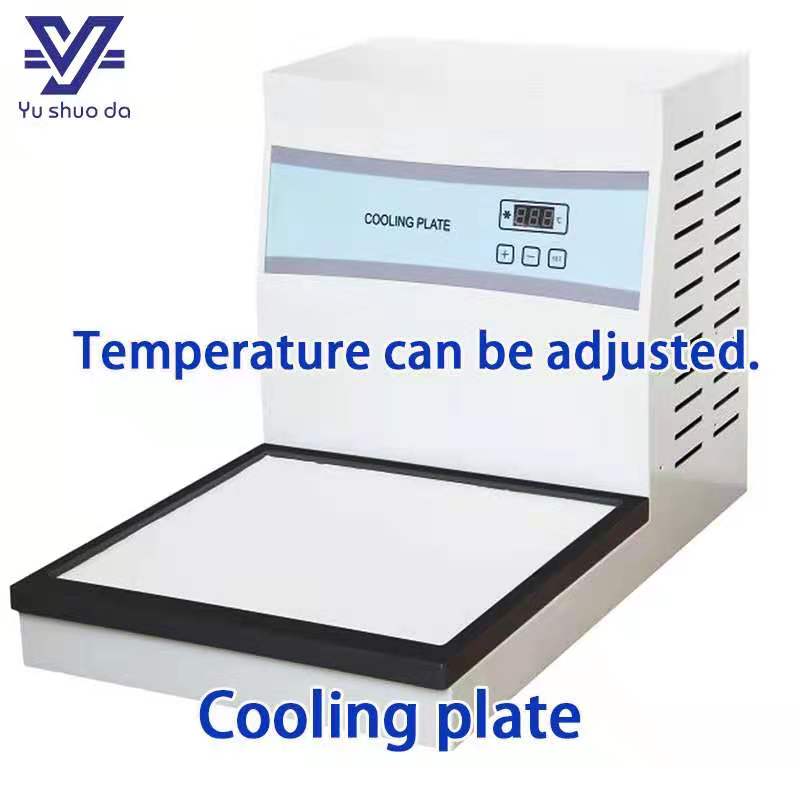

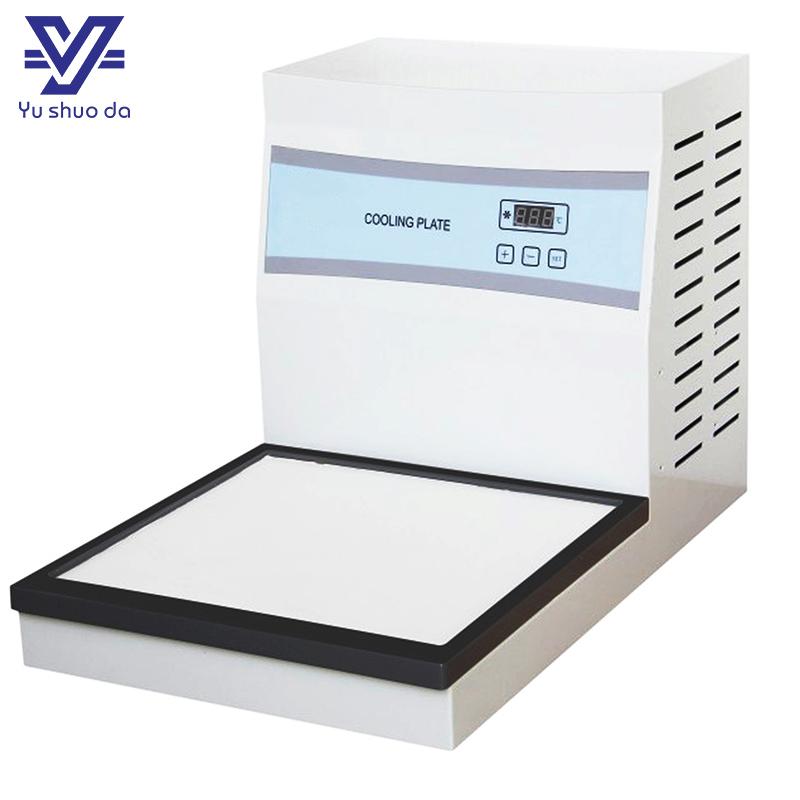

1. The temperature of the Cryo plate equipped with this system is controlled independently and can be used to freeze tissue more conveniently, particularly for small specimens.
2. Flexible module configuration options through a design which separates the Cryo Module from Embedding Module, enabling easy maintenance.
3. Paraffin Chamber with super large capacity enables embedding a large number of specimens at same time;
4. Safe and reliable low-voltage illuminating system with two ON/OFF control options.

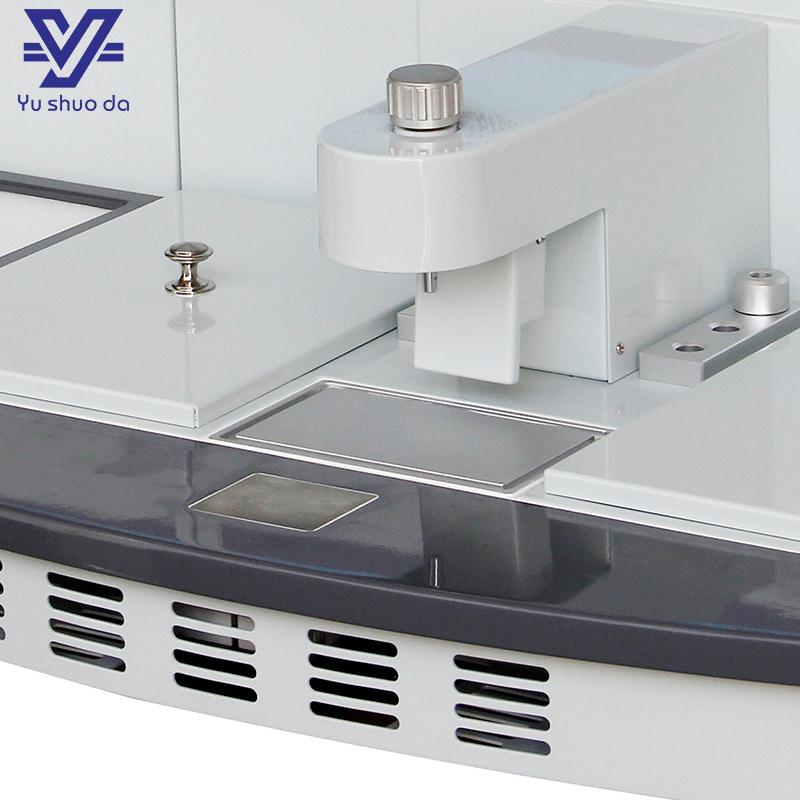

5. Heated working plate and forceps wells make tissue embedding more convenient;
6. High-precision clock makes time setting more convenient and accurate.
7. This unit set the control power socket, 3 part can work at same time.
Net weight
124KG
Size
231.1cm*69cm*61cm
Product
Tissue embedding and cooling plate
Temperature range of Cryo-Module
Room temperature to 85℃
Temperature range of Paraffin-melting chamber
Room temperature to 85℃
Temperature range of thermal storage compartments
Room temperature to 85℃
Tissue Embedding center and cooling plate station
