Tissue embedding is a station with cooling plate, embedding center. In embedding center, the temperature of dissolving paraffin can be adjusted through the LED. There are a mini cooling plate and thermal chamber, paraffin dispenser, paraffin tank, paraffin waste tray, forceps holder, cooling plate in the whole set. The equipment can be purchased as a whole or separately.
Brand:
YU SHUO DAItem NO.:
YSD-310Payment:
L/C D/A D/P T/T Western Union MoneyGramProduct Origin:
Liaoning ChinaGoods Stock:
50Shipping Port:
Dalian, ShanghaiLead Time:
7~10 days after paymentSize:
26.5”*22.75”*16.5”(D*W*H)Capacity:
6L
Product Description

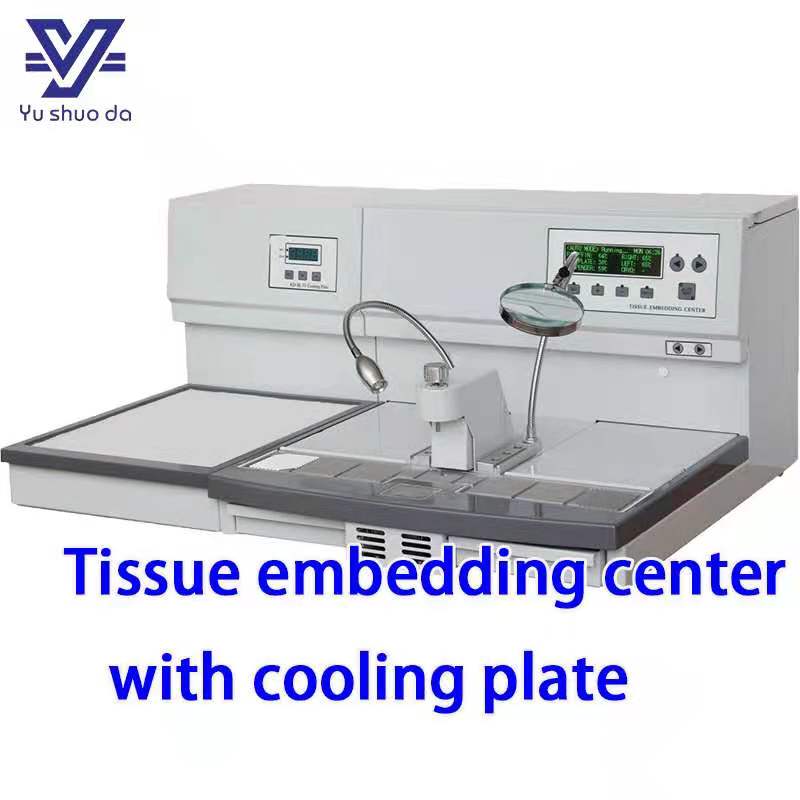

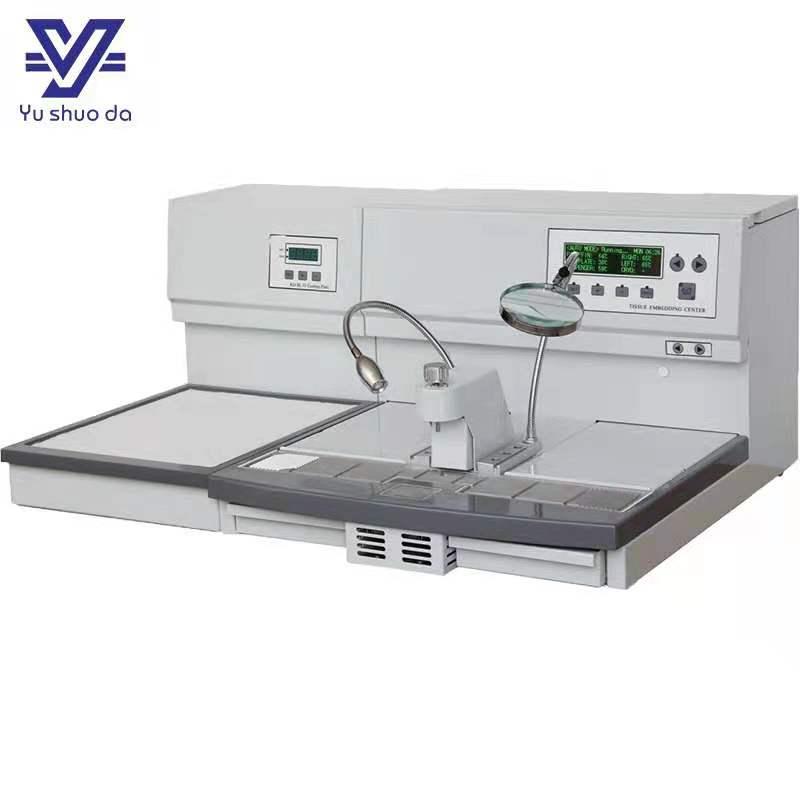

Biological tissue embedding center with cooling plate

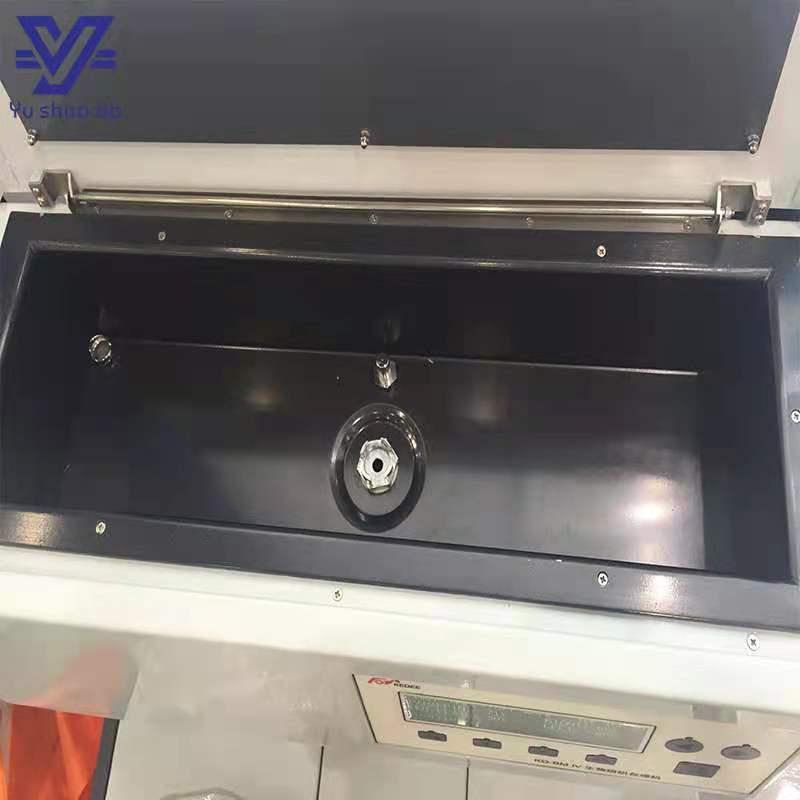

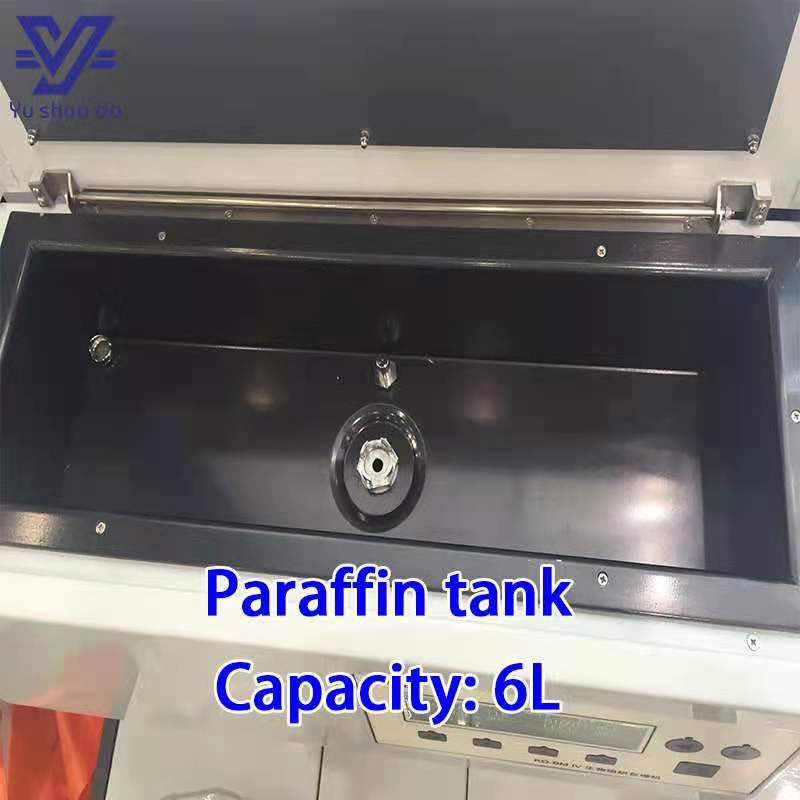

1) Paraffin Tank : holds up to 6 liters of paraffin ; temperature can be adjusted in a range from 0 ℃ to 85 ℃; reservoir is overheat protected in the event of a temperature control failure

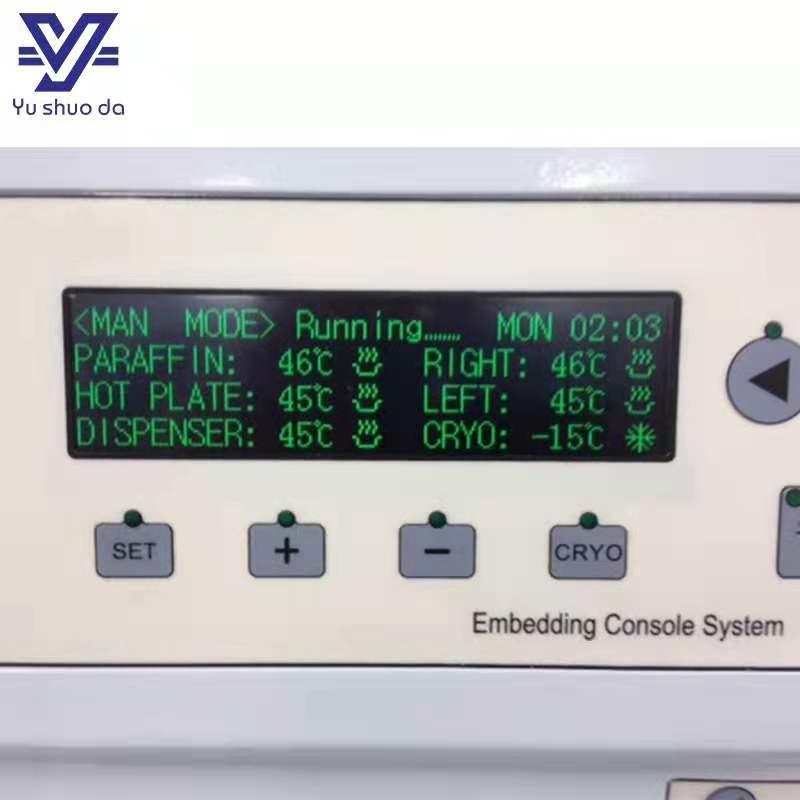

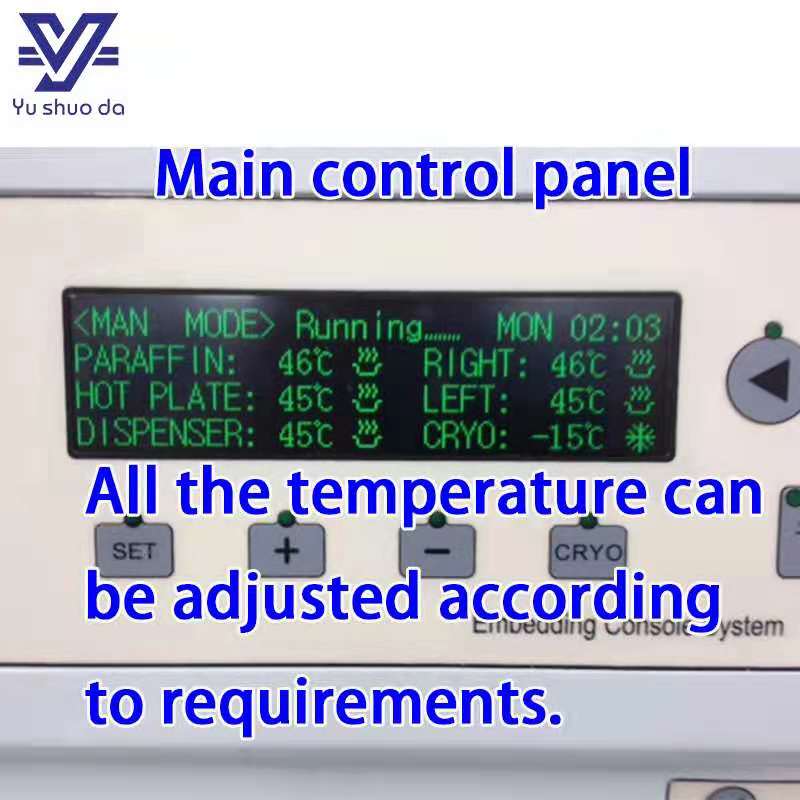

2) Main Control Panel: press any key ( Except cryo ) to light up the display screen, screen will enter into power save mode after 15 minutes of no contact.
3) LED Light Control: press key , the LED light will become brighter and darker.

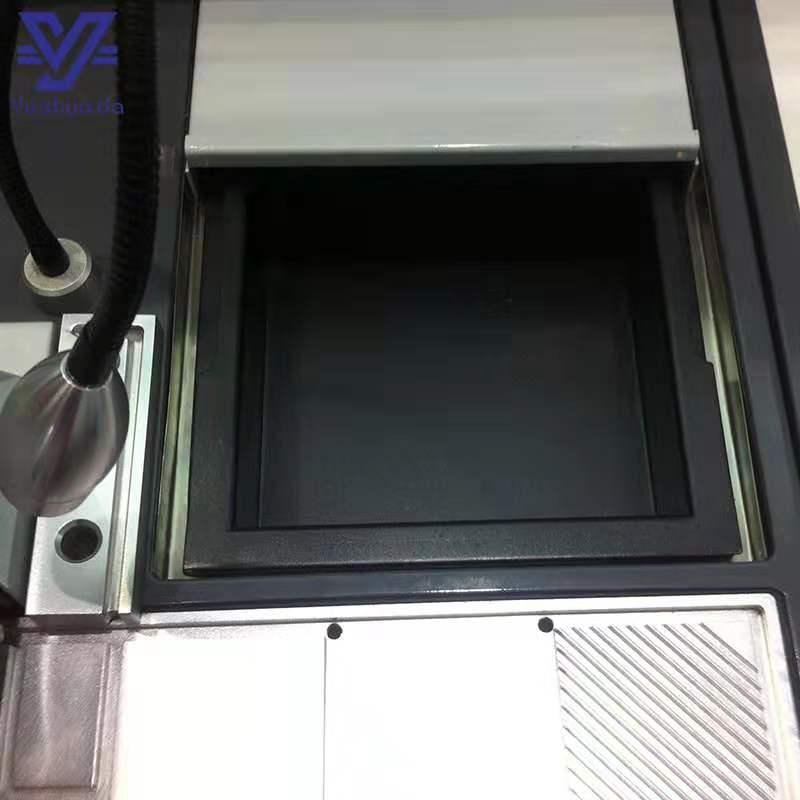

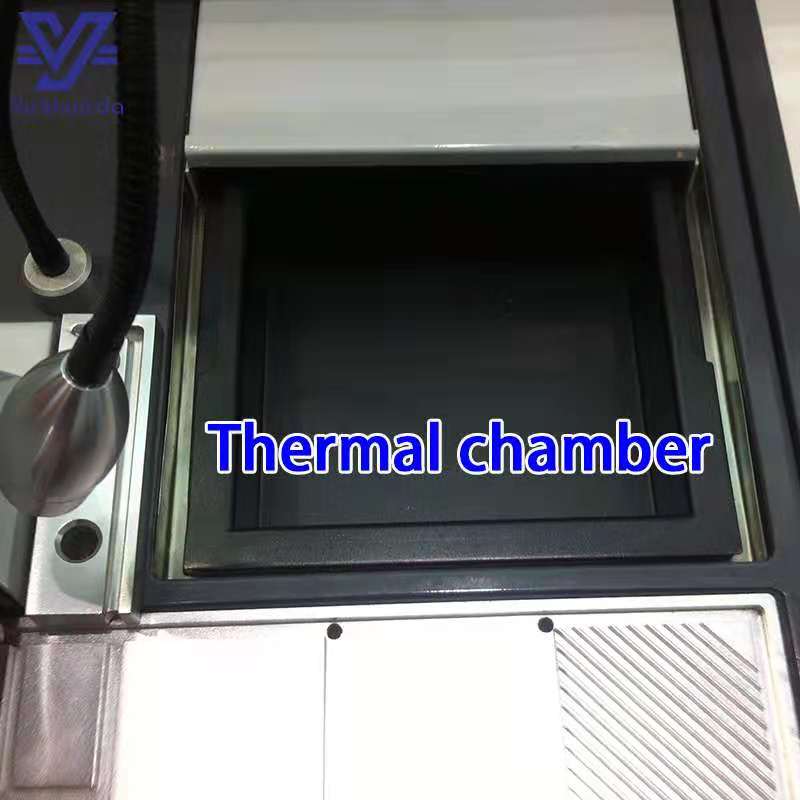

4) Therm Chambers : used to keep THE “blocks “ warm; programmable temperature control; removable transfer trays

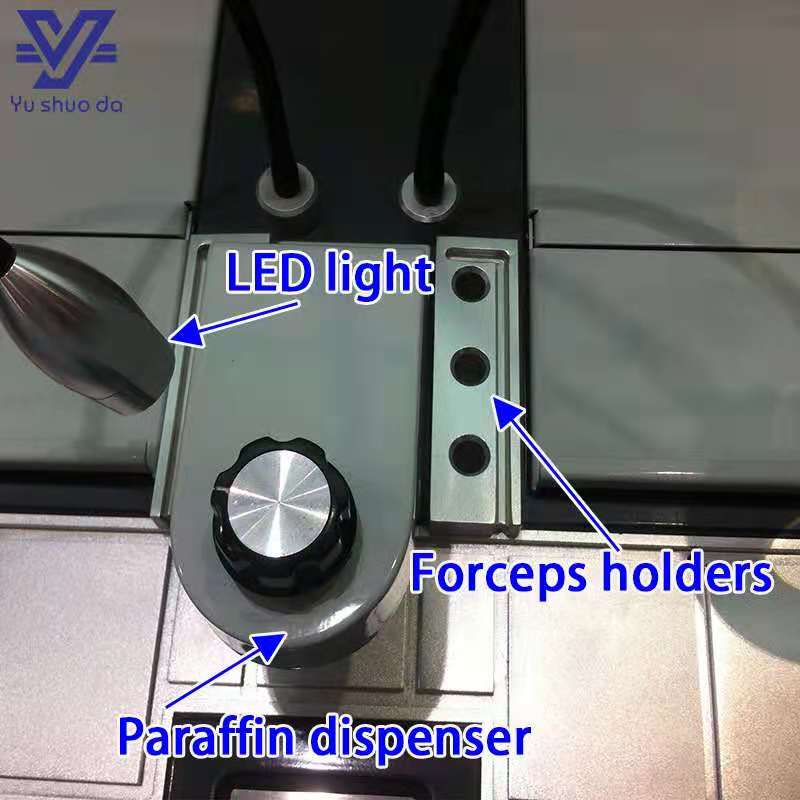

5) Paraffin Dispenser: Programmable temperature control; flow control is adjustable

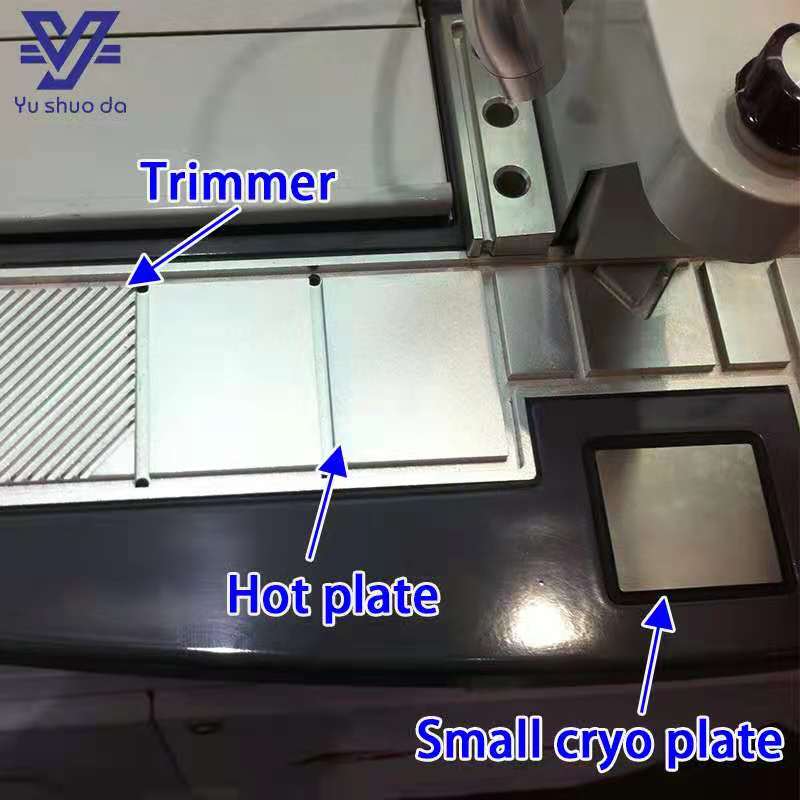

6) Small Cryo Plate: located directly in the front of the embedding area to ensure consistent , low temperature during the filing of the molds
7) Paraffin Waste Trays : two removable trays are located under the heated work areas to collect the excess paraffin drained from the surface

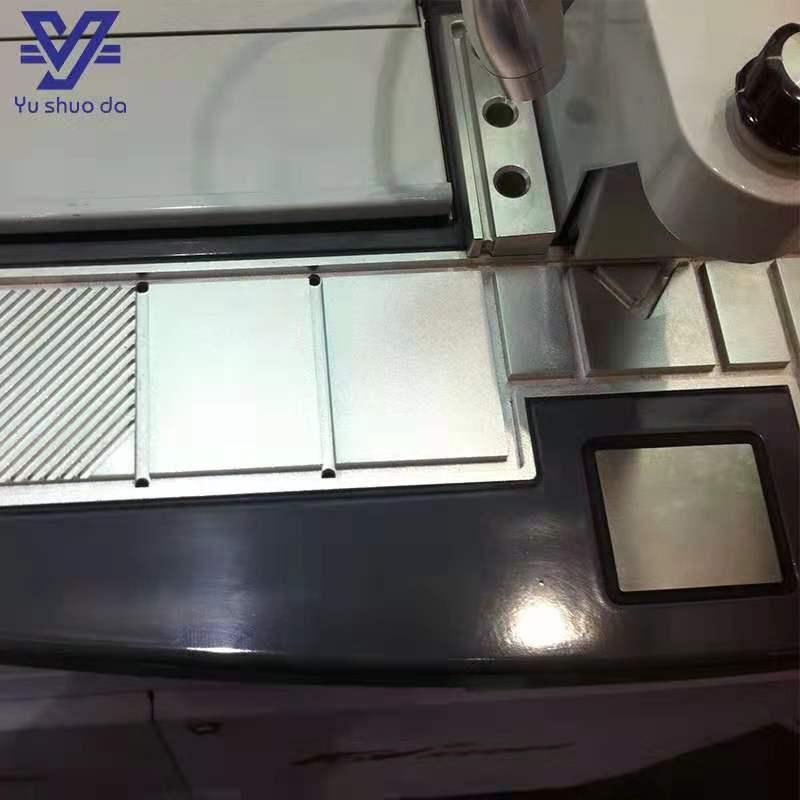

8) Hot Plate : features a paraffin trimmer on both the left and right sides; programmable temperature control

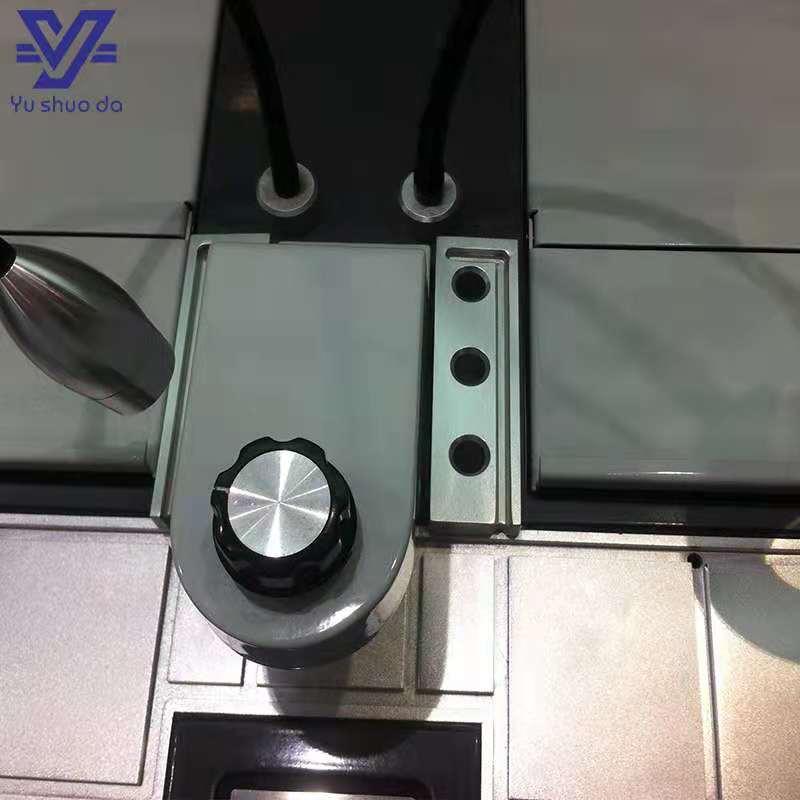

9) Forceps holder: maintains independent temperature
Features :
1. Pre-set On/off timer for every day of the week
2. Histo-trimmers on both ends of the ho plate are convenient for both left and right hands users

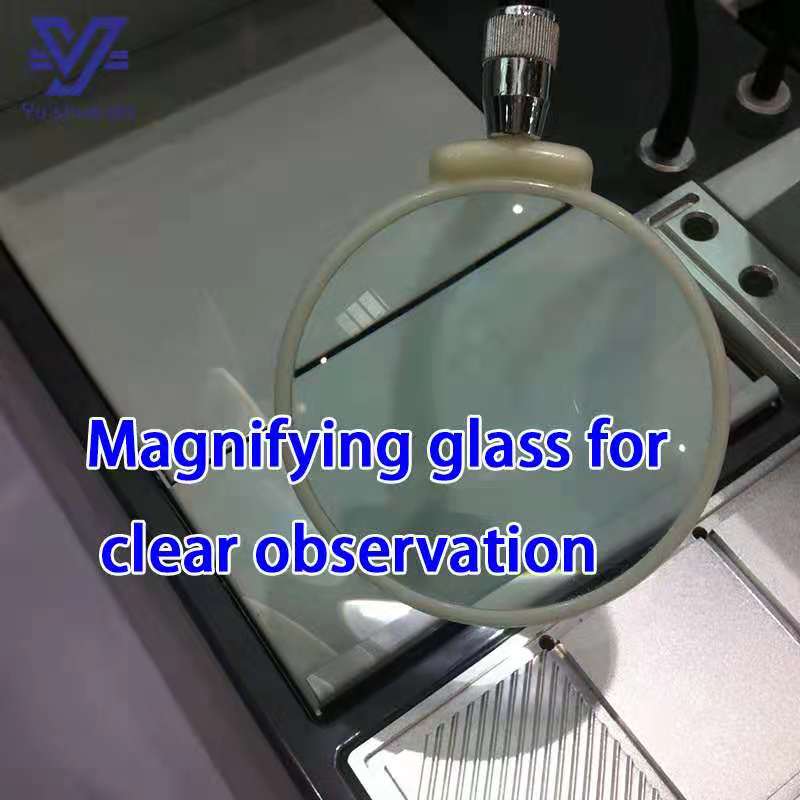

3. Adjustable magnifier for easy voewing
4. Two models of operation :Automatic and manual
5. Temperature control functions
6. Multiple over-heat protection devices
7. Keys with light indicator
8. Low voltage and adjustable LED illumination system and flow tube
9. Tow module configurable options ( left to right or right to left )

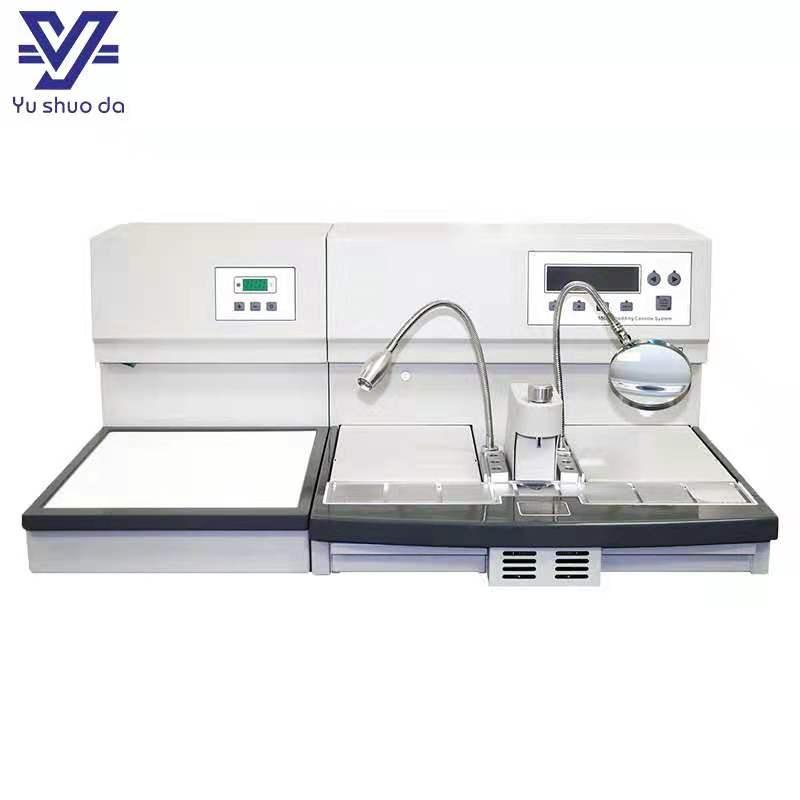

Biological tissue embedding center with colling plate
Net weight
Size
26.5*22.75*16.5cm(D*W*H)
Product
Tissue embedding and cooling plate
77 labs
Power supply
110V/60HZ or 220V/50HZ
Power consumption
100VA
Operating Temperature Range
15
Cooling system
DC 12/24V compressor
Refrigerant
R134A
Paraffin reservior
6L
Thermal chamber
Approx. 1.5L
Cold plate
Approx. 80 cassettes
Operating temperature
5-40℃
Humidity
<80%
Atmospheric pressure
860Hpa-1060Hpa
Temperature range of paraffin reservoir
0-85℃
Temperature range of paraffin dispenser
0-85℃
Temperature range of thermal chamber
0-85℃
Temperature range of hot plate
0-85℃
Temperature range of cold plate
0-85℃
Temperature range of forceps holders
0-85℃
Tissue Embedding center and cooling plate
