-86℃ Ultra low temperature freezer

/Lab -86 degree ultra low temperature vaccine freezer

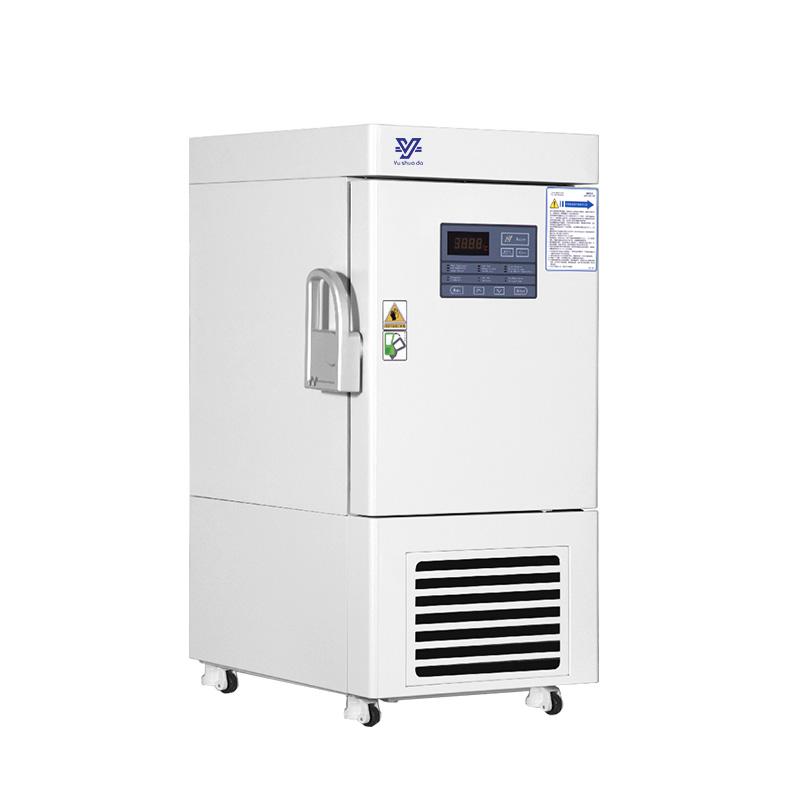

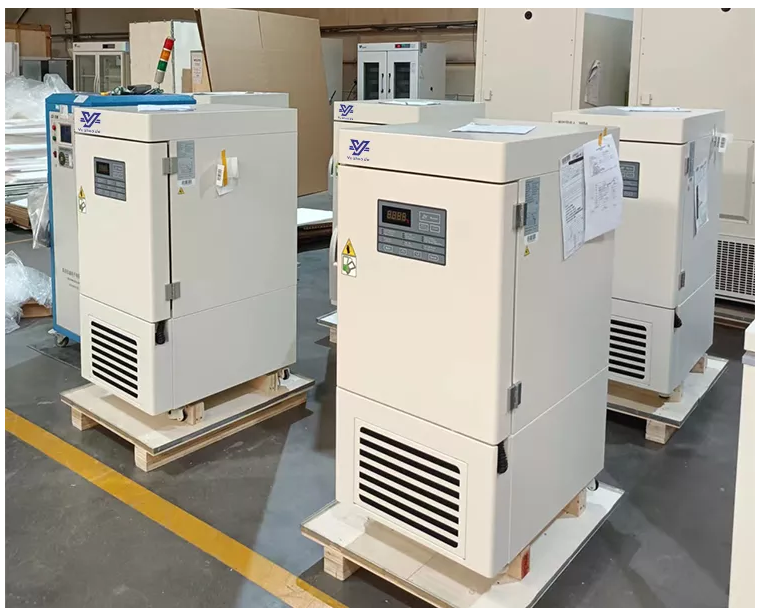

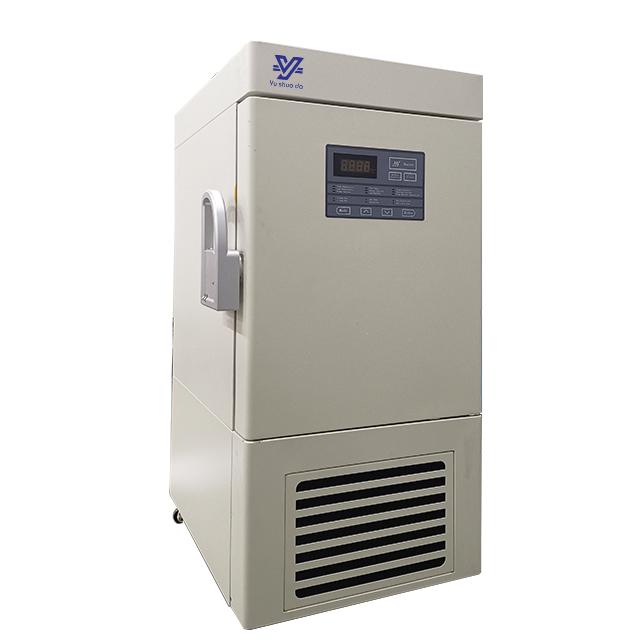

Lab -86 degree ultra low temperature vaccine freezer

YSD-86V58 -86 degree ultra Low temperatrue freezer , capacity is 58L , tempertuare : -40~-86℃ , inner material : stainless steel 304

  • Brand:

    YU SHUO DA
  • Item NO.:

    YSD-86V58
  • Goods Stock:

    10
  • Product weight:

    95 kg
  • Lead Time:

    3~5 days after we confirm the order
  • Capacity:

    58L
  • Material:

    inner size : stainless steel 304
Share To :
  • Product Detail

Lab -86 degree ultra low temperature vaccine freezer

-86 C Ultra Low Temperature Freezerideal for long term preservation of virus , germ ,vaccines ,biological tissue and organs , special food ,medicines ,reagents etc.

Control System:

ultra low temperature freezer

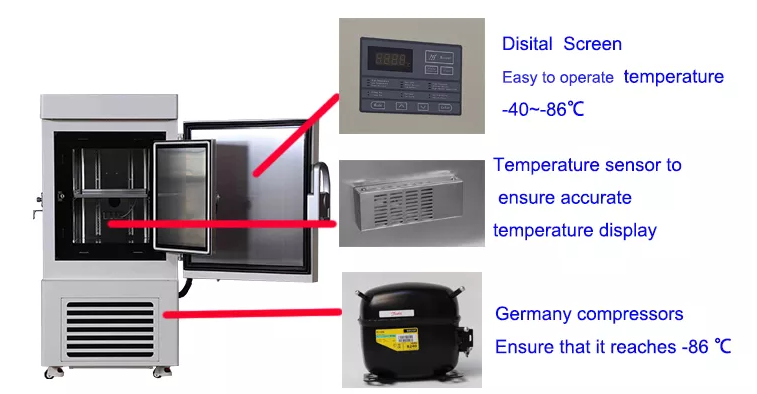

●Microprocessor-based temperature controller,-40°C~-86°Ccan be set freely , controlling precision is 1°C, Digital temperature display.

●Keyboard lock and password protected configuration page,Delayed start and safe stop interval between restart and being terminated.

●Audible and visual alarm: High or low temperature alarm, Power failure alarm, Low battery alarm, Door open alarm, Filter blocking alarm,system failure alarm.

●Power supply:220V /50Hz1 phase, can be changed as 220V 60HZ or 110V 50/60HZ.


-86 vaccine freezer

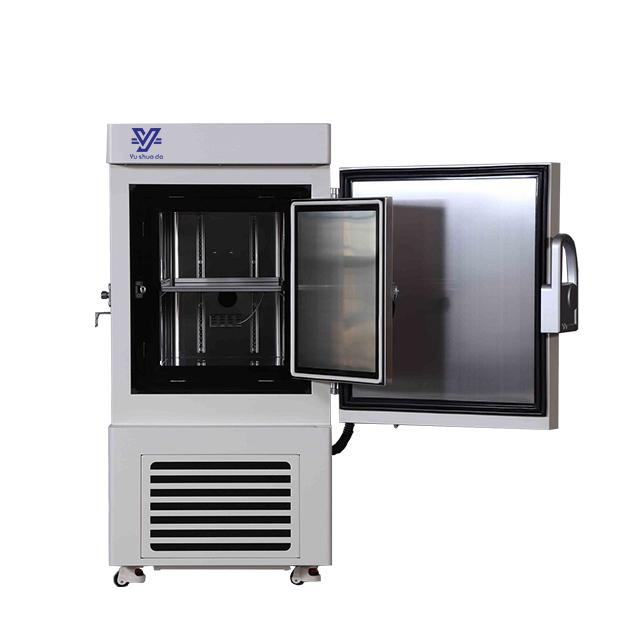

Structure Design:

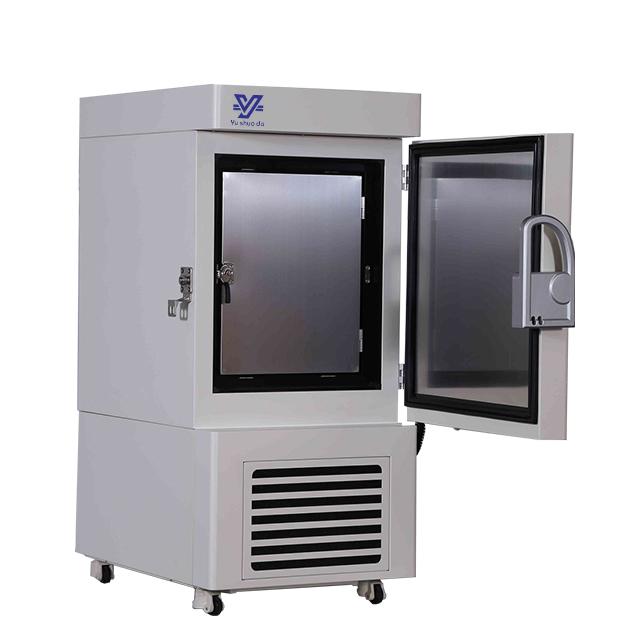

●Upright type , Stainless steel interior, Outer is painted steel panel, 4units Casters for easy handing.

●Adjustable 1-2 stainless steel shelves with inner door, double silicon gasket seal.

●Optional: Chart recorder, CO2 back up system, storage racks/boxes, Remote alarm system.

Refrigeration System:

●Imported Danfoss compressor, Tow units compressors in parallel connection, to reduce noise and improve the cooling temperature cometo -86°C steady.

●Fan electromotor with internationally famous of Germany EBM.

●China Patent technology of mixture refrigerant, which composed of R134a,R404a,R23,R410A,N2and so on,CFC free.

low temperature vaccine freezer

Ultra low temperature freezer Specifications

Product

YSD-86V58

Shelf/drawer QTY

Stainless steel shelf/1

Cooling method

Direct cooling

Defrost

Manual

Refrigerant

Mixed-gas

Energy consumption(kWh/24h)

6.5

Temperature range(℃)

-40~-86℃

Compressor brand/QTY

SECOP/1

Capacity(L/cu.ft)

50

NT./GT.(kg)

75/95

Exterior size(W*D*H)(mm)

540×620×1115

Interior size(W*D*H)(mm)

361×429×406

Package size(W*D*H)(mm)

690×760×1170

ultra low temperature freezer



-86 vaccine freezer

ultra low temperature freezer

ultra low temperature freezer

-86 vaccine freezer

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
ultra low temperature freezer
Details

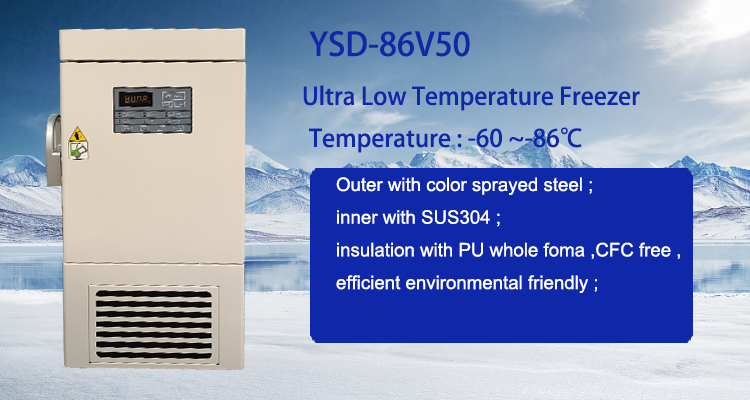

50L ultra low temperature freezer price

YSD-86V50 -86 degree ultra Low temperatrue freezer , capacity is 50L , tempertuare : -40~-86℃ , inner material : stainless steel 304

ultra-low temperature freezer
Details
188L ultra cold ultra low temperature freezer

YSD-86V188 -86 degree ultra Low temperatrue freezer , capacity is 188L , tempertuare : -40~-86℃ ,Famouse Secop Compressor

low temperature refrigerators
Details
Medical low temperature vaccine freezers

YSD-86V588 -86 degree ultra Low temperatrue freezer , capacity is 588L , tempertuare : -40~-86℃ ,touch screen easy to operate

 Urine Cup
Details
60ml Multi Purpose Specimen Cup PP Urine Sample Container PE Screw Cap Liquid Solid Food Medicine Sample Collection

Urine Sample Collection Cup 60ml PP urine cup with writing area and red cap, dual molded graduations every 10ml up to 60ml (dual 0.5 fl.oz graduations up to 2.0 fl.oz), vertical stripes on cup bottom, pre-assembled, non-sterile, individually plastic packed, 600 pcs per carton.

microtome blade holder
Details
Stainless steel histology microtome disposable blade holder

Medical disposable low cutting profile Microtome Trimming knife handle The blade matched with the material handle can be an obsolete or used feather blade leica blade 819 , feather S35 ,R35 ,C35 , N35 and so on Features: Knife handle resistant to high temperature Easy to install and remove blades

LCD Digital magnetic stirrer
Details
Yushuoda Laboratory cheap price 550 LCD Digital Magnetic Hotplate Stirrer

550°C series magnetic stirrer is developed for demanding applications. It is widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc. Combining with glass ceramic work plate, brushless DC motor and external temperature sensor, the work plate temperature is optimized up to 550°C.

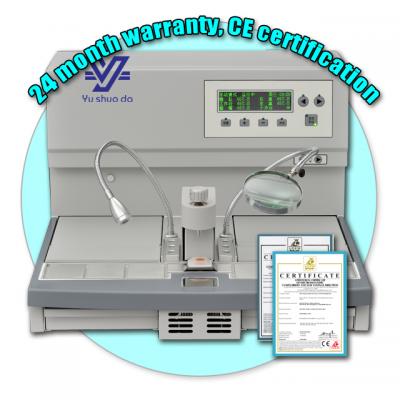

tissue embedding and cooling plate station
