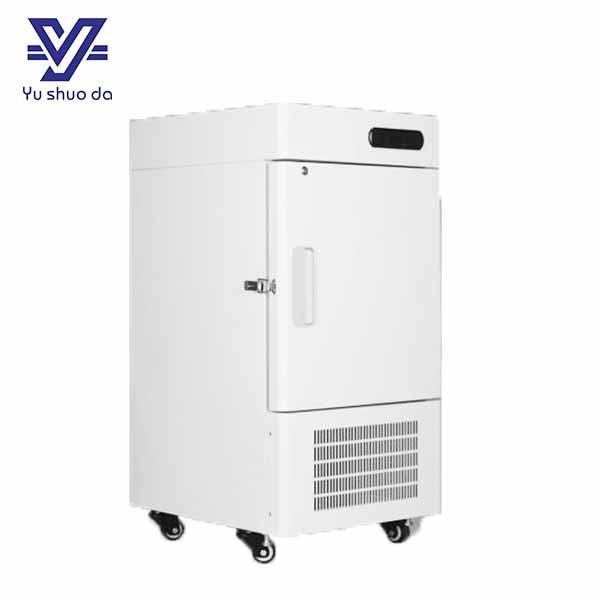

YSD-86V50 -86 degree ultra Low temperatrue freezer , capacity is 50L , tempertuare : -40~-86℃ , inner material : stainless steel 304
Brand:
YU SHUO DAItem NO.:
YSD-86V50Goods Stock:
10Product weight:
95 kgLead Time:
3~5 days after we confirm the orderCapacity:
50LMaterial:
inner size : stainless steel 304
Product Description
YSD-86V50 ultra low temperature freezer is specially designed for long term storage of various biological product,including viruses, germs. erythrocytes, leucocytes and cutis.
Ultra low temperature freezer Specifications
YSD-86V50
Shelf/drawer QTY
Stainless steel shelf/1
Cooling method
Direct cooling
Defrost
Manual
Refrigerant
Mixed-gas
Energy consumption(kWh/24h)
6.5
Temperature range（℃）
-40~-86℃
Compressor brand/QTY
SECOP/1
Capacity（L/cu.ft)
50
NT./GT.（kg)
Exterior size(W*D*H)(mm)
Interior size(W*D*H)(mm)
361×429×406
Package size(W*D*H)(mm)
690×760×1170
Product
75/95
540×620×1115
Low temperature freezers Details
Ultra low temperature freezer specification:
Filed proven reliability
Unique insulated inner door design for Chamber storage compartments to minimize frost buildup inside the chamber.
Specialized control system design for a well-balanced operation of cascade refrigeration system.
Positive filed proven reliability record.
Safety
Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high
ambient.
Capable of producing two types of alarm outputs: audible buzzer and visible flashing light.
Installation and Application
Wide rage operating voltage system from 185V to 260v designed to allow units installed in areas with poor voltage
condition
Suitable for 10℃ to 32℃ambient temperature
Energy saving
Unique door seal design for the minimum loss of cold temperature during a door opening.

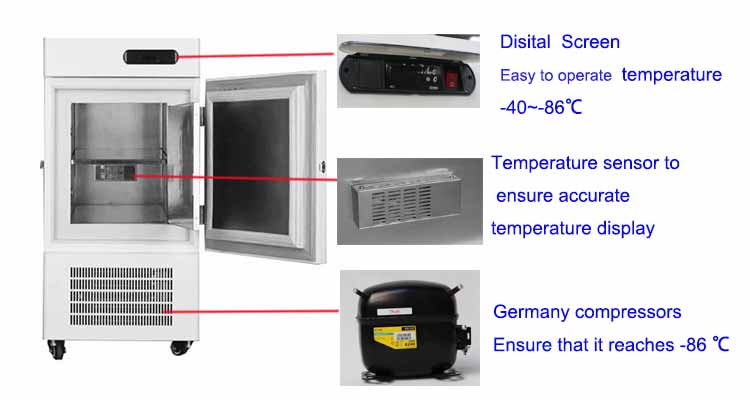

Key design features
Microprocessor-controlled system designed for controlled rage of -40℃ to -86℃ for cabinet space with 1℃ increment
Settable high temperature and low temperature alarms.
Automatic clean-filter alarm and sensor error alert.
Adjustable storage shelf height
Optional temperature recorder. storage racks and storage box
Leave A MessageYSD-86V188 -86 degree ultra Low temperatrue freezer , capacity is 188L , tempertuare : -40~-86℃ ,Famouse Secop Compressor
YSD-86V588 -86 degree ultra Low temperatrue freezer , capacity is 588L , tempertuare : -40~-86℃ ,touch screen easy to operate
YSD-86V58 -86 degree ultra Low temperatrue freezer , capacity is 58L , tempertuare : -40~-86℃ , inner material : stainless steel 304
Lab serological pipettes Designed for quantitatively transferring and dispensing exact volumes of liquid. There aresixdifferent specifications of serological pipettes to choose from
pharmaceutical refrigeration medical refrigerator for vaccines

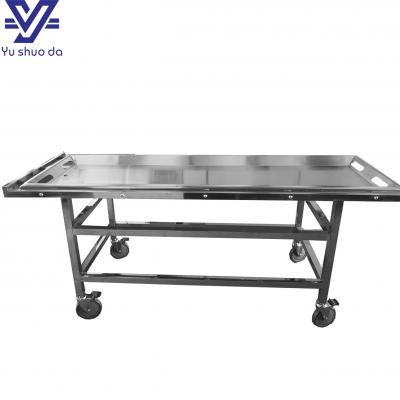

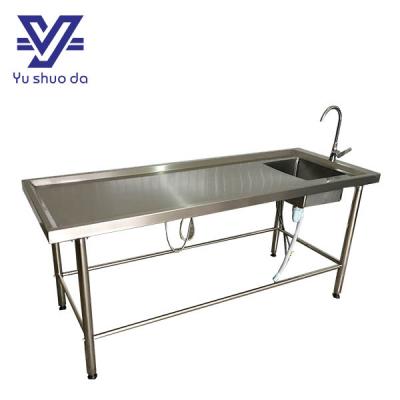

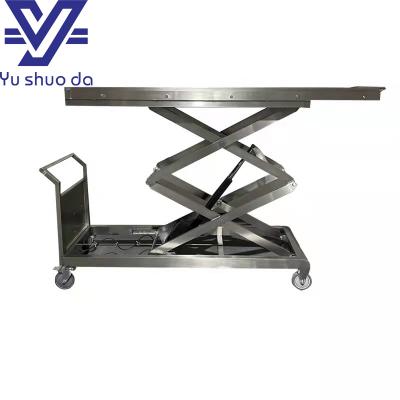

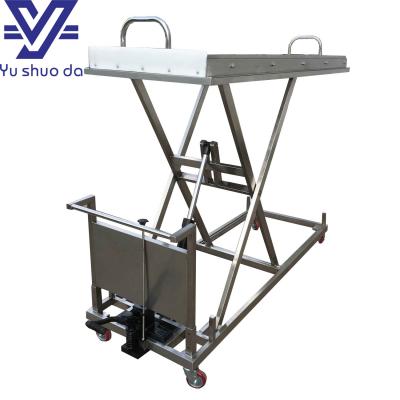

YS-AT104 Hydraulic adjustable embalming table for morgue room . Large load weight : 250 kg .

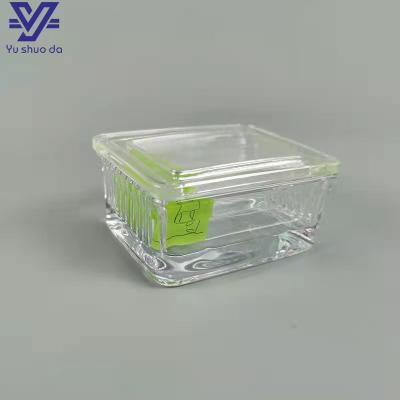

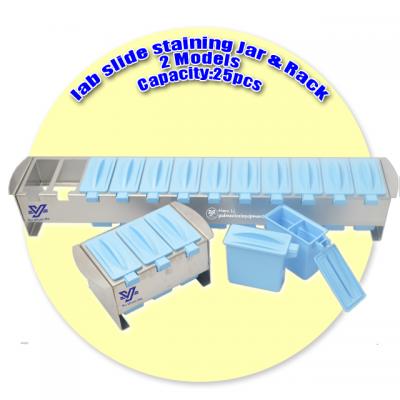

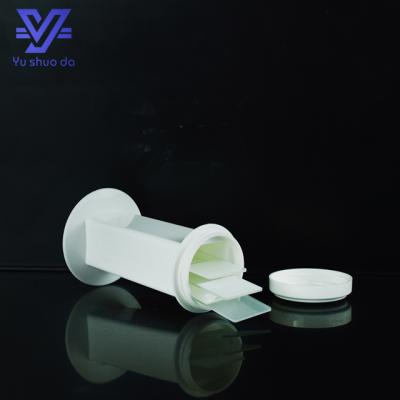

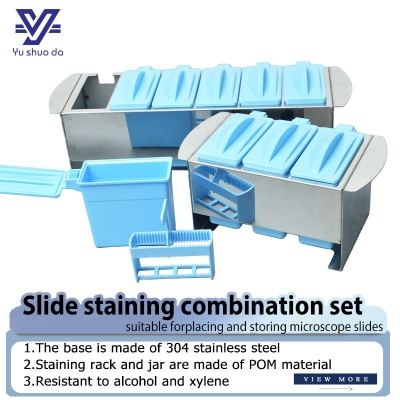

Suitable for glass slide staining in routine operations. Made of plastic material with plastic lid. It can hold 5 piece.
