550°C series magnetic stirrer is developed for demanding applications. It is widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc. Combining with glass ceramic work plate, brushless DC motor and external temperature sensor, the work plate temperature is optimized up to 550°C.
Brand:
YU SHUO DAItem NO.:
YSD-MS7-H550-ProPayment:
L/C D/A D/P T/T Western Union MoneyGramProduct Origin:
Liaoning ChinaShipping Port:
Dalian, ShanghaiLead Time:
15 days after paymentSize:
W215*D360*H112mmPower:
1050W
Yushuoda Laboratory cheap price 550℃ LCD Digital Magnetic Hotplate Stirrer
Features:
• LCD display for precise monitoring of speed and temperature
• Built-in PID controller ensures safe heating of the medium with overheating protection
• Max. heating plate temperature 550°C
• Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
• External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.2°C
• Digital speed controlling, max. speed at 1500rpm
• Outstanding brushless DC motor enables more stirring power
• Two rotating knobs enable easy adjustment of speed and temperature
• The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
• Remote function provides PC control and data transmission
• Max. stirring quantity of H2O at 5L

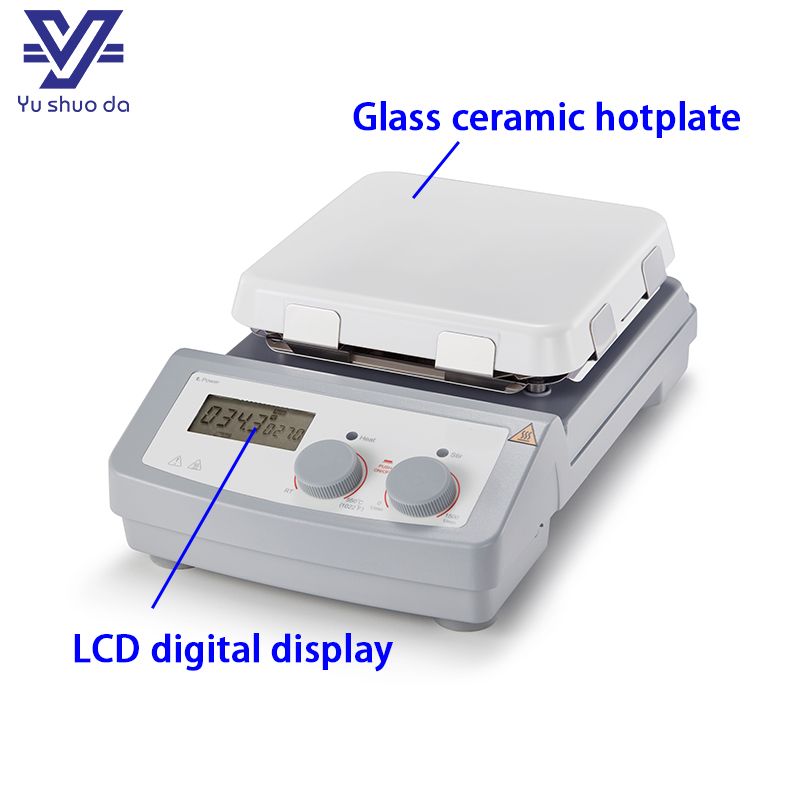

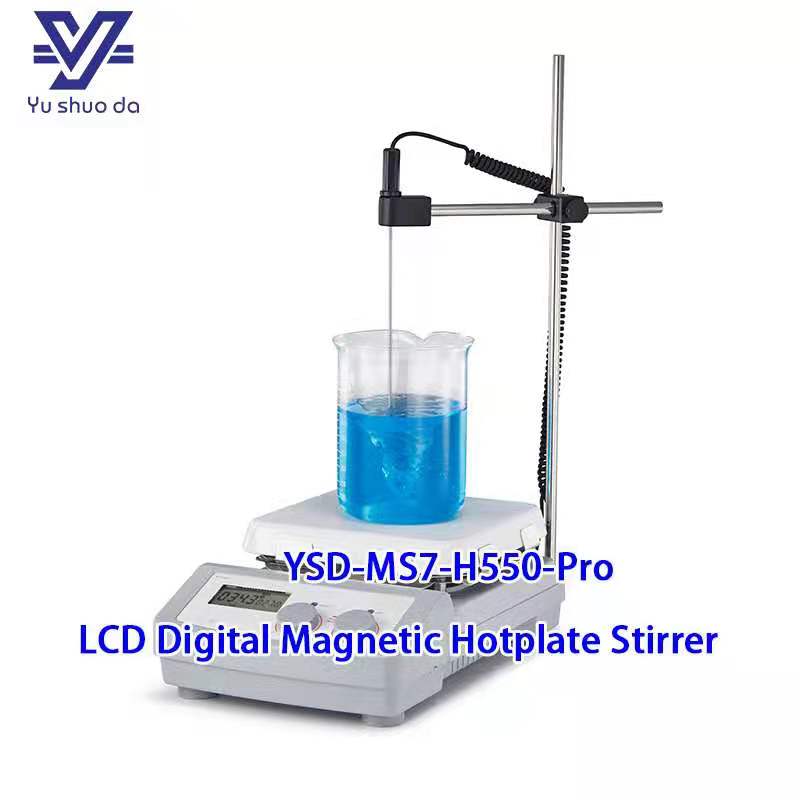

LCD Display Digital Magnetic Hotplate Stirrer
Product name |
Yushuoda Laboratory LCD Digital Magnetic Stirrer |
Motor type | Brushless DC motor |
Work plate dimension[W*D] | 184*184mm(7 inch) |
Work plate material |
Glass creamic |
Weight | 5.3kg |
Speed display | LCD |
Temperature display | LCD |
Voltage | 100-120/200-240V, 50/60HZ |
Protection class | IP21 |
Power |
1050W |
Heating output | 1000W |
Dimension(D*W*H) | 360*215*112mm |
Permissible ambient temperature and humidity | 5-40℃,80%RH |
Overheat protection | 580℃ |
Max. stirring quantity[H2O] |
20L |
Max. magnetic bar[length] | 80mm |
Speed range |
100-1500rpm resolution ±1rpm |
Motor rating input | 18W |
Motor rating output | 10W |
Stirring position | 1 |
Heating temperature range |
Room Temp.-550°C, increment 1°C |
Temperature control accuracy |
±1°C(<100°C) ±1%(>100°C) |
Temperature display accuracy | ±0.1℃ |
Protection class | IP21 |
Data connector | RS232 |
External temperature sensor |
PT1000 (accuracy ±0.2) |
LCD Display Magnetic Hotplate Stirrer
