YSD-D3024, YSD-D3024R High speed refrigerated micro centrifuge is a new type centrifuge with special cooling design and pre-cooling design to ensure fast cooling of the rotor and low energy consumption.
Brand:
YU SHUO DAItem NO.:
YSD-D3024; YSD-D3024Payment:
L/C D/A D/P T/T Western Union MoneyGramProduct Origin:
Liaoning ChinaGoods Stock:
50Shipping Port:
Dalian, ShanghaiLead Time:
15 days after paymentSize:
280×364×266mm; 338×580×324mm
Product Description
YSD-D3024 High speed micro centrifuge
Unique features:
• Special multi-flow air cooling design with patent ensures fast cooling of the rotor and low energy consumption
• Unique temperature display appropriate for gentle handling of sensitive samples
• Bio-safe rotor/anti-sample overflow prevents accidental leakage during centrifugal process allowing risk-free microbial contamination
• High strength aluminum alloy rotor can be fully autoclaved for unlimited service life
• Four rotors are optional complete with 24 places 1.5/2.0mL tubes, bigger 5.0mL, smaller 0.2mL and 0.5mL tubes with adapters

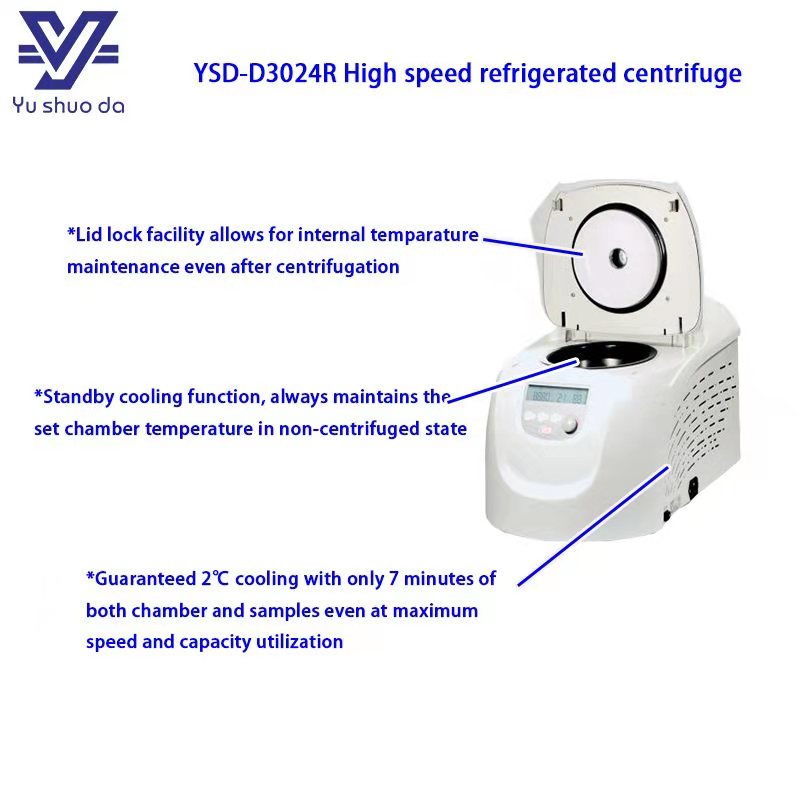

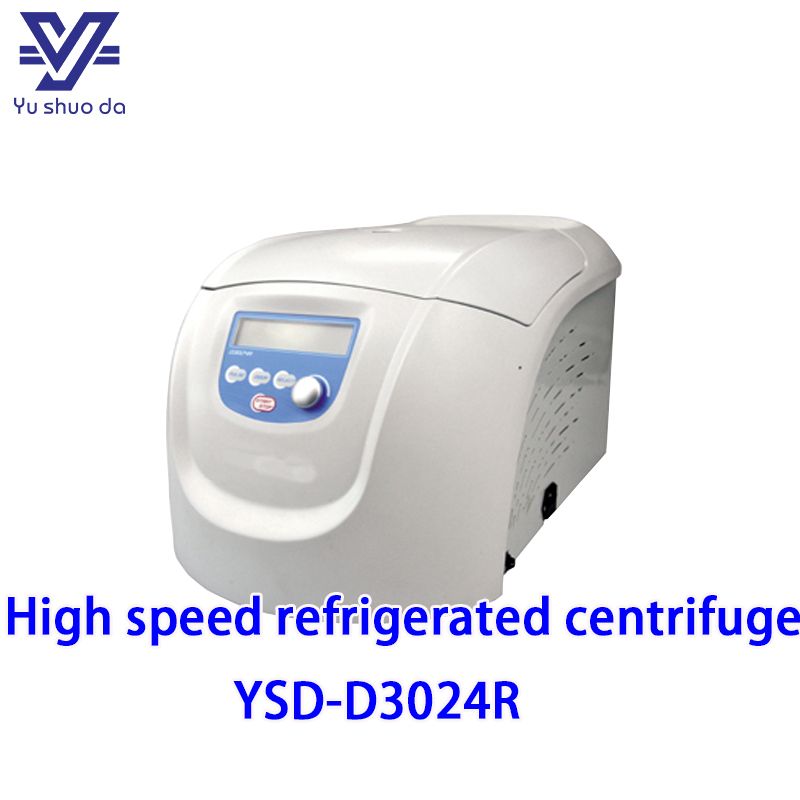

YSD-D3024R High speed refrigerated micro centrifuge
Powerful cooling system for precise temperature control
• Pre-cooling program ensures optimal protection of the sample before warming
• Guaranteed 2°C cooling within only 7 minutes of both chamber and samples even at maximum speed and capacity utilization
• Sound-alert allows your undivided attention on other tasks warming
• Lid lock facility allows for internal temperature maintenance even after centrifugation
• Intermittent temperature control mode, CFC-free refrigerant and lowcarbon life rotor capacity
• Bio-safe rotor/anti-sample overflow prevents accidental leakage during centrifugal process allowing risk-free microbial contamination
• High strength aluminum alloy rotor can be fully autoclaved for unlimited service life
• Four rotors are optional complete with 24 place 1.5/2.0mL tubes,bigger 5.0mL, smaller 0.2mL and 0.5mL tubes with the use of adapters
• Quiet running, noise level ≤ 54dB
Max speed
15000rpm(200-15000rpm), increment:10rpm
15000rpm(200-15000rpm), increment:10rpm
Speed accuracy
±20rpm
±20 rpm
Dimension(W*D*H)
280×364×266mm
338×580×324mm
21380×g, increment:10×g
21380×g, increment:10×g
5mL×18, 5mL culture tubex12; 0.2mL/0.5mL/1.5mL/ 2mL×24;0.5mL×36;PCR8×4
5mL×18, 5mL culture tubex12;0.2mL/0.5mL/1.5mL/ 2mL×24;0.5mL×36;PCR8×4
30sec-99min/Continuous
30sec-99min/Continuous
≤64dB
30KG
Dual door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis
Single-phase, AC200V-400V, 50Hz/60Hz, 5A, AC100V-120V, 50Hz/60Hz, 8A 200W
Single-phase, AC200V-400V, 50Hz/60Hz, 5A,AC100V-120V, 50Hz/60Hz, 8A 200W
CE cTÜVus FCC MCA
CE cTÜVus FCC MCA
Acceleration /Braking time
25s↑25s↓
25s↑25s↓
Advanced features
Speed/RCF switch, Short-time run function, sound-alert function
Speed/RCF switch; Short-time run function; sound-alert function
Product
YSD-D3024 High speed Micro centrifuge
YSD-D3024R High speed refrigerated micro centrifuge
Temperature range
-
-20℃-40℃
Max. RCF
Rotor capacity
Run time
Driving motor
Brushless DC motor
Brushless DC motor
Noise level
≤56dB
Weight
12KG
Safety Devices
Door interlock, Over-speed detection, Over-temperature detection,Automatic internal diagnosis
Power
Certfication
High speed micro refrigerated centrifuge
