The spectrophotometer is an indispensable instrument routinely used in colleges,universities and research institutes for quantitative analysis in fields including biotechnology and quality control of new material developed. V-series provides high resolution, high performance and excellent stability.
Brand:
YU SHUO DAItem NO.:
YSD-SP-UV1100Payment:
L/C D/A D/P T/T Western Union MoneyGramProduct Origin:
Liaoning ChinaProduct weight:
14000Shipping Port:
Dalian, ShanghaiLead Time:
15 days after paymentSize:
W490*D360*H210mmPower:
120W

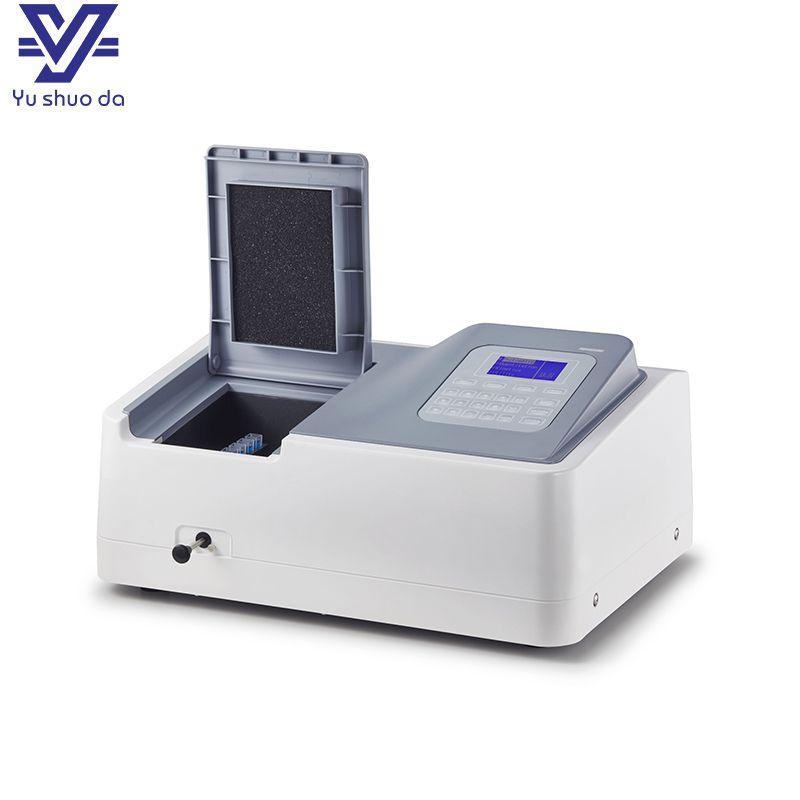

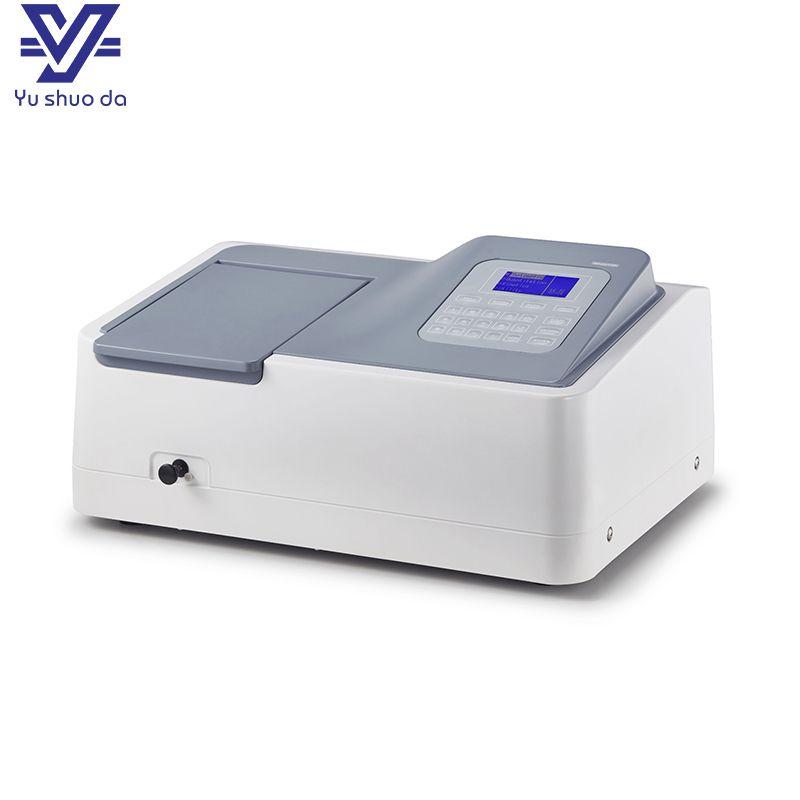

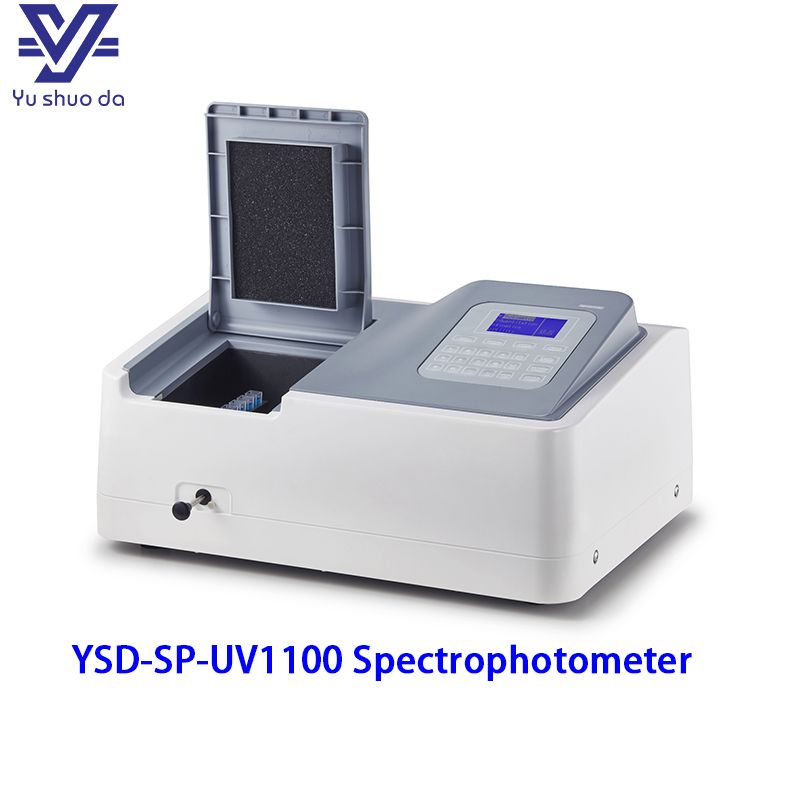

YSD-SP-UV1100 LCD display digital spectrophotometer

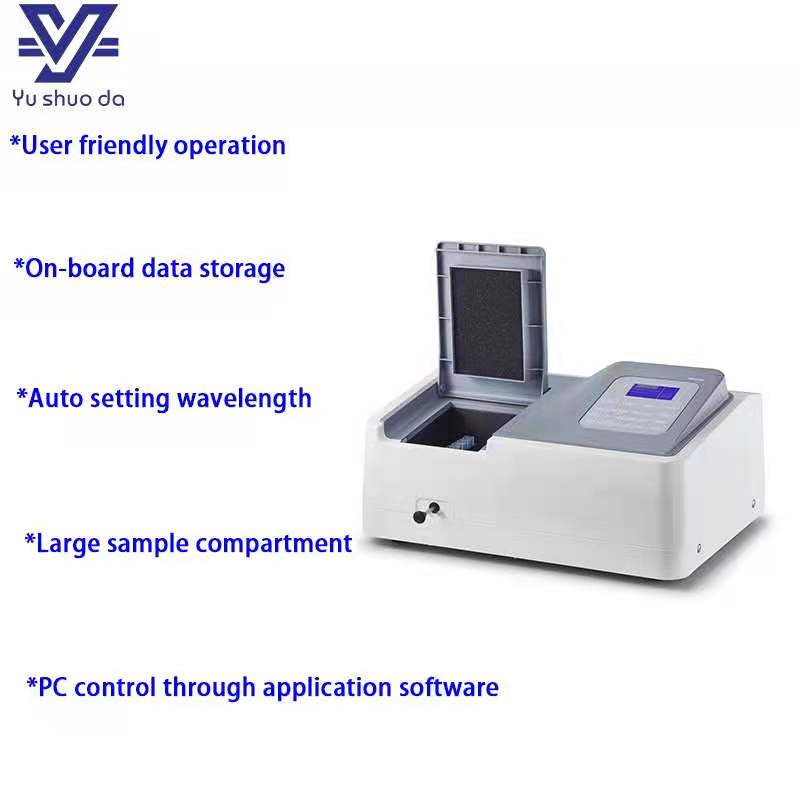

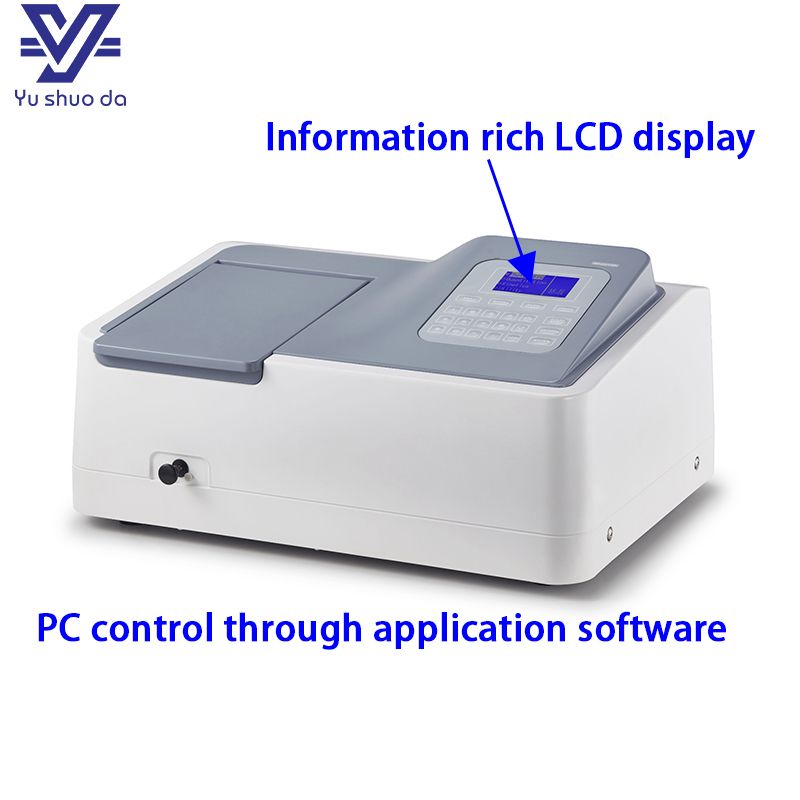

*User friendly operation and information rich LCD display: the large 128*64 dots, backlit LCD screen with adjustable brightness control displays a large array of data also in graphic format.
*On-board data storage: the system can save the test results, up to 200 groups of data and 200 standard curves in the RAM memory. Data can be restored after a sudden power failure.
*Auto setting wavelength: to set wavelength automatically to calibrate the system through arrow keys to avoid operation errors
*Automatic switching: Tungsten and Deuterium lamps switching is automatic. Selectable from a wavelength range of 190 to 1100nm
*PC control through application software: the spectrometer is fully equipped and capable of executing all functions in stand-alonemode. The optional application software “wave professional” provides computer control for the spectrophotometer (through the bulit-in USB port), apart from other functions such as spectrum scan, Time scan(kinetics), multiwavelength scanning&Nucleic Acid/Protein measurement.

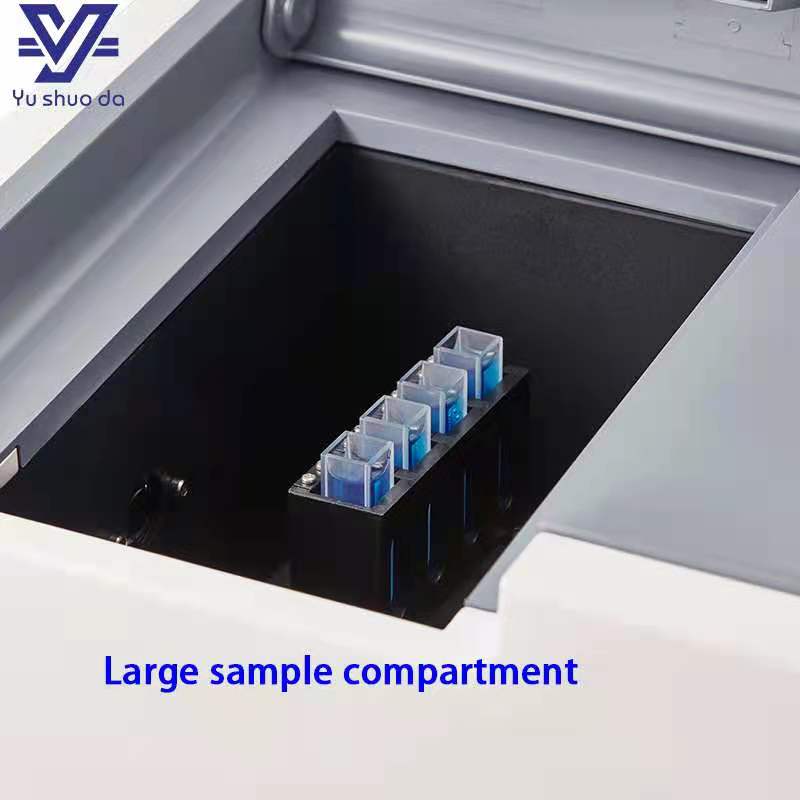

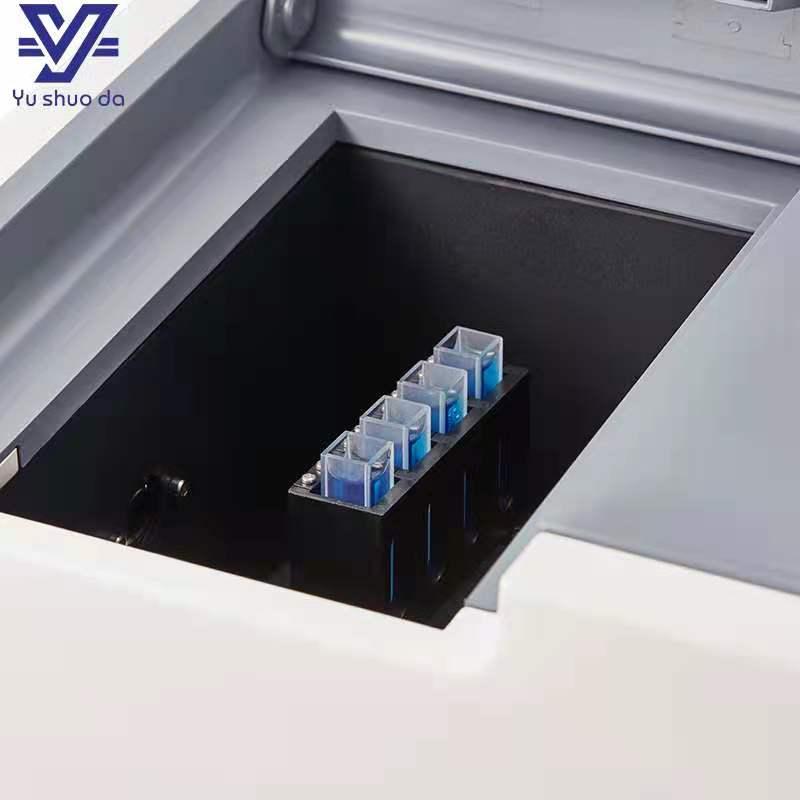

*Large sample compartment: to accommodate 5-100mm path length cuvettes with optional holders. A variety of optional accessories areavailable.
Laboratory LCD display uv visible spectrophotometer
Product name |
Laboratory LCD display uv visible spectrophotometer |
Optical system |
Single beam |
Light source |
Tungsten lamp & Deuterium lamp |
Spectral handwidth | 2.0nm |
Wavelength range |
190-1100nm |
Wavelength accuracy |
±0.5nm |
Wavelength repeatability |
≤0.3nm |
Photometric repeatability |
-0.3-3.0A, 0-200%T |
Photometric accuracy |
±0.003A@0.5A, ±0.006A@1.0A, ±0.5%T@100%T |
Photometric repeatability |
≤0.0015A@0.5A, ≤0.003A@1.0A, ≤0.25%T@100%T |
Stability |
≤0.002A/h@500nm(after preheat 2 hours) |
Stray light |
≤0.2%T@ 360nm |
Sample compartment |
4-position, 10mm pathlength cuvette |
Display |
LCD |
Output |
USB Port& Parallel port (printer) |
Weight |
14kg |
Dimensions[W*D*H] |
490*360*210mm |
Power | 110/220VAC, 50/60Hz, 120W |
Laboratory LCD display digital uv visible spectrophotometer
