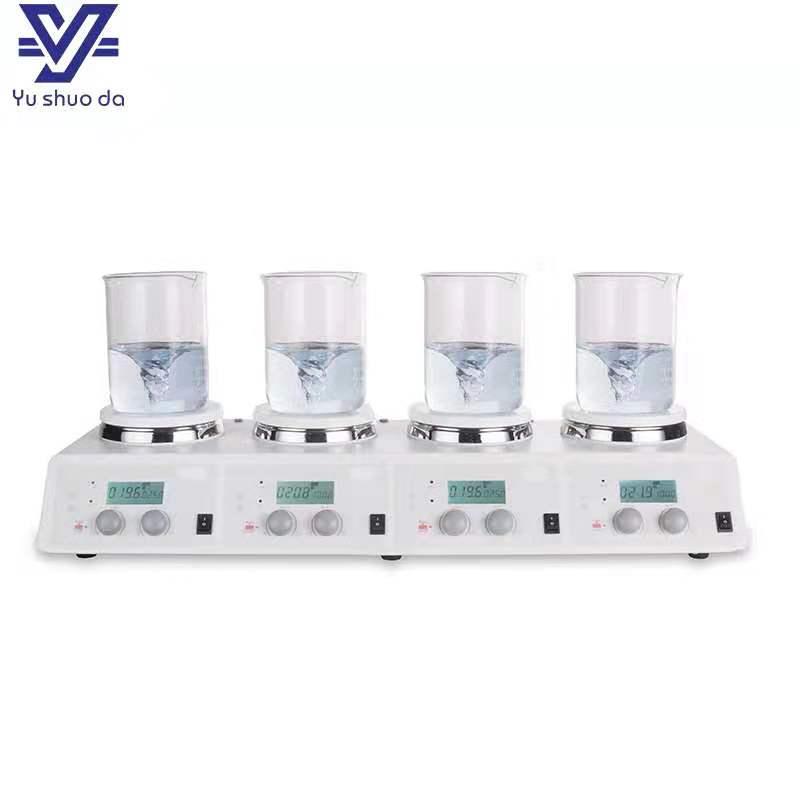

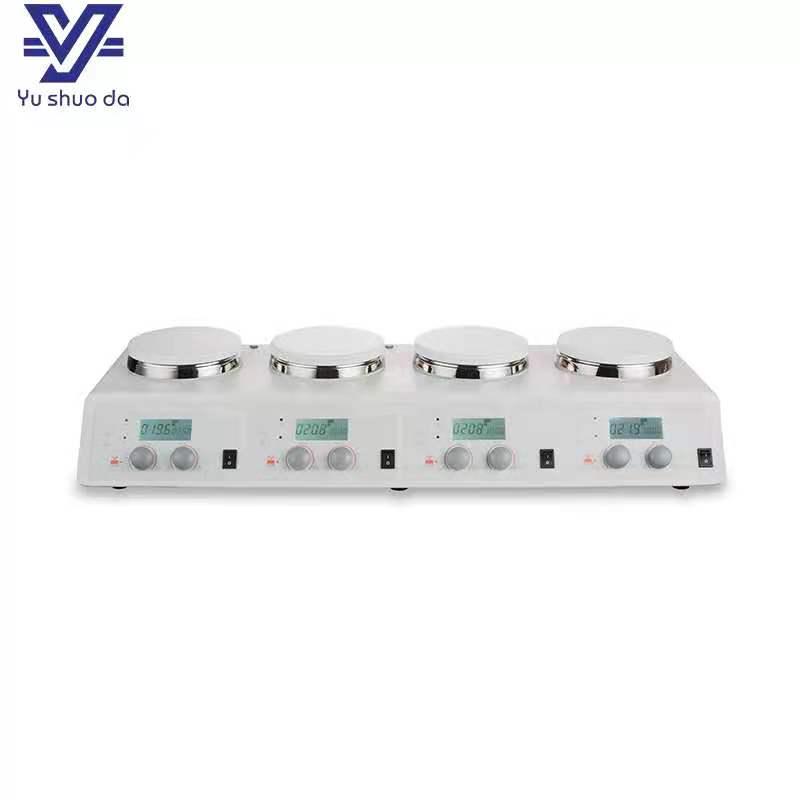

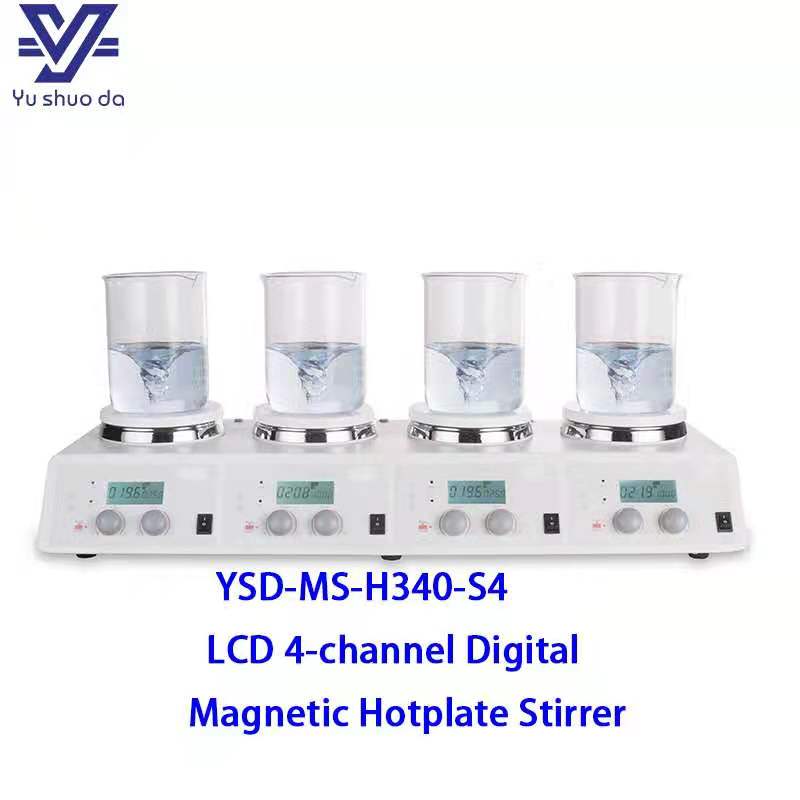

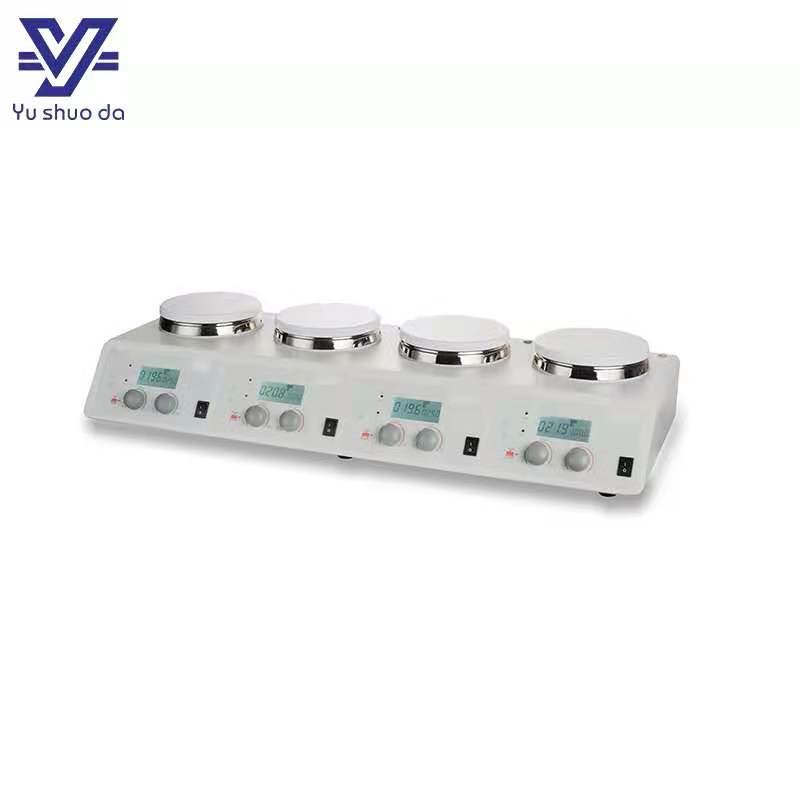

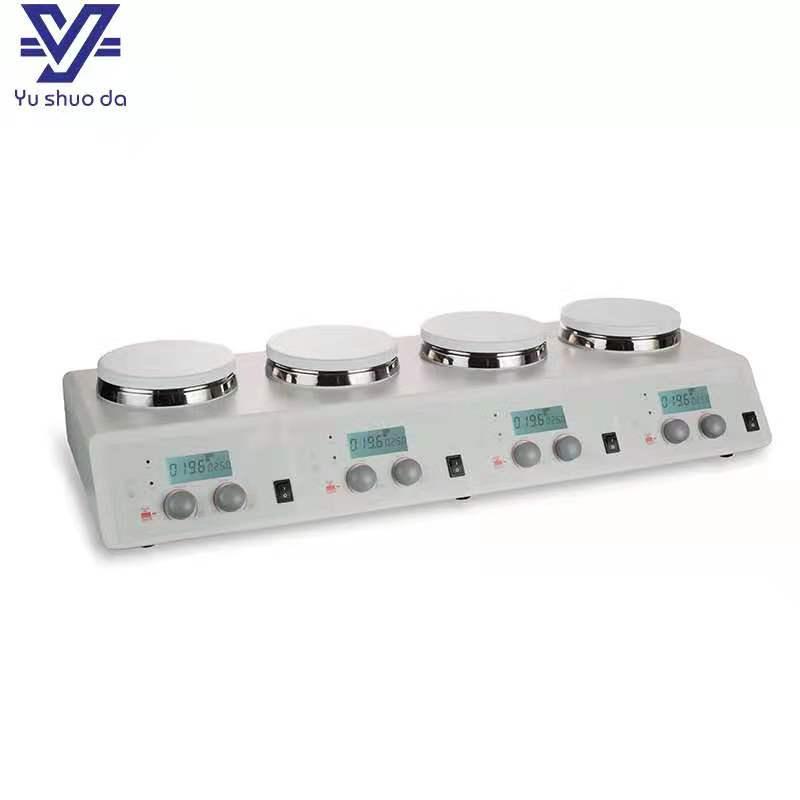

4-channel digital magnetic hotplate stirrer


 Magnetic hotplate stirrers include all leading safety standardsand is chemically-resistant with stainless steel ceramic work plate. They can be used in physical, chemical, analytical and biological laboratories.




  • Brand:

    YU SHUO DA
  • Item NO.:

    YSD-MS-H340-S4
  • Payment:

    L/C D/A D/P T/T Western Union MoneyGram
  • Product Origin:

    Liaoning China
  • Shipping Port:

    Dalian, Shanghai
  • Lead Time:

    15 days after payment
  • Size:

    W698*D270*H128mm
  • Power:

    515W*4
Share To :
  • Product Detail

4-Channel LCD digital magnetic hotplate stirrer

Magnetic stirrer is widely used in chemical synthesis, physical and chemical analysis, biopharmaceuticals etc.

Features:

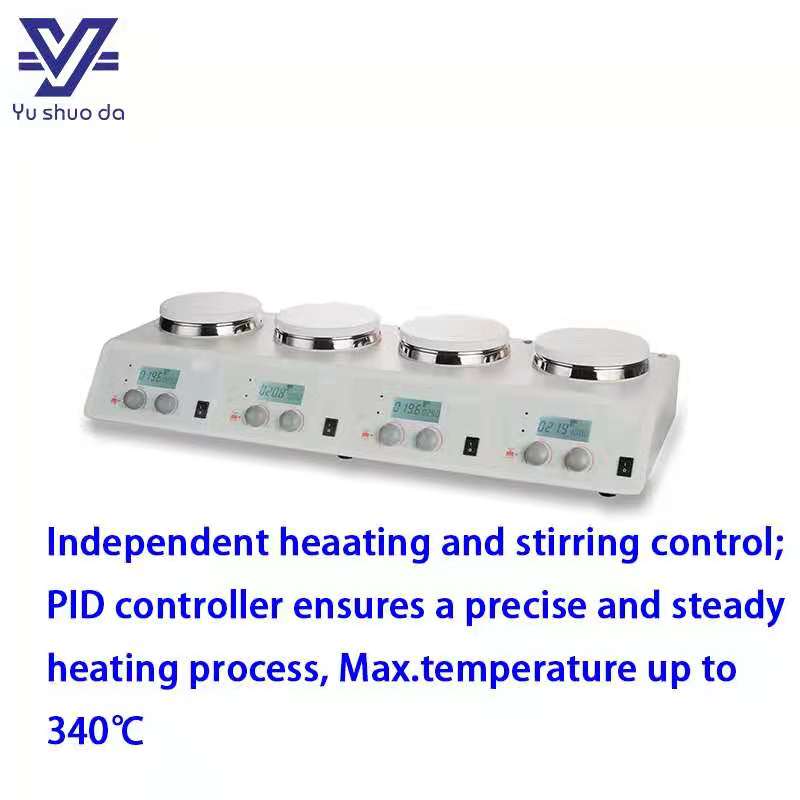

*Independent heating and stirring control

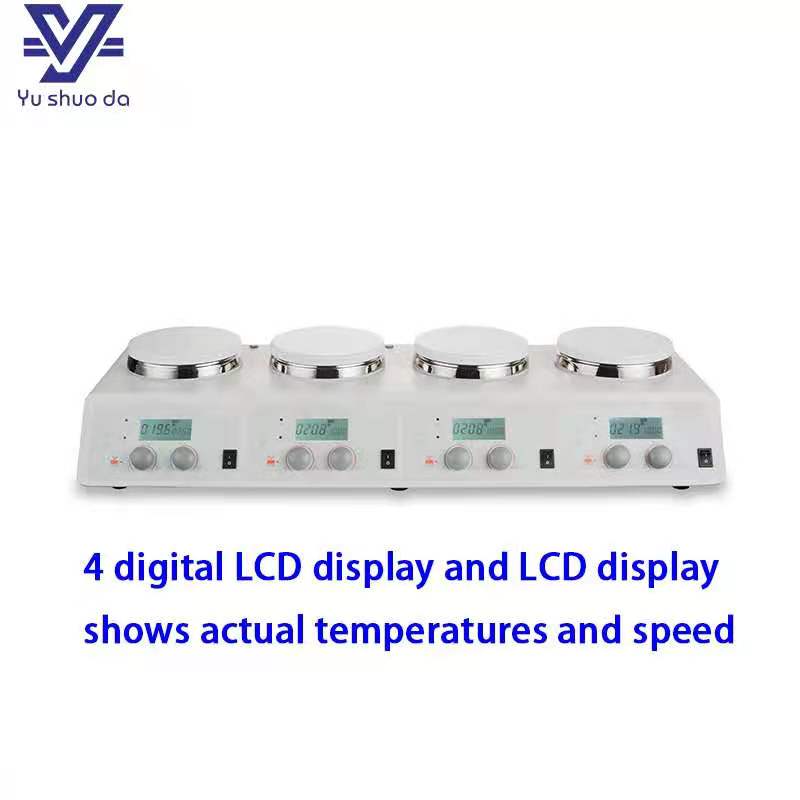

*LCD display shows actual temperatures and speed

*PID controller ensures a precise and steady heating process, Max. temperature up to 340℃

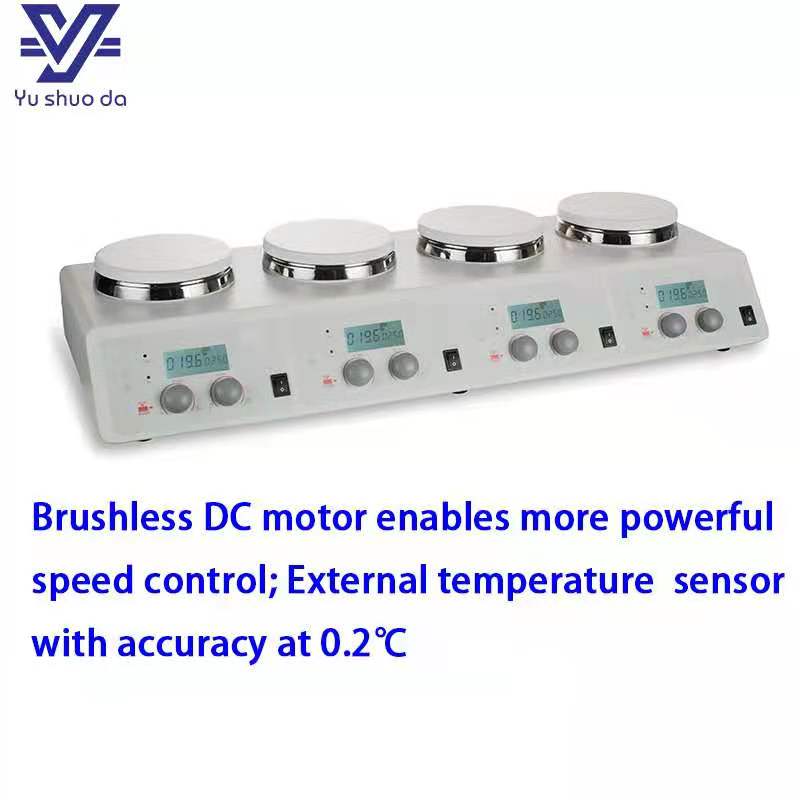

*Brushless DC motor enables more powerful speed control

*External temperature sensor with accuracy at 0.2℃

*Overheating protection temperature at 420℃

*Stainless steel work plate with ceramic coating provides good chemical-resistant performance

*A wide variety of accessories are available


4-channel LCD Digital magnetic hotplate stirrer

Product name

 4-channel LCD Digital magnetic hotplate stirrer

Work plate dimension[W*D]

5inch

Motor type Brushless DC motor
Work plate material

Stainless steel with ceramic coating

Weight 9.5kg
Speed display

LCD

Temperature display LCD
Heating temperature range Room temp. +5℃-340℃
Over heat protection 420℃
Temperature diaplay accuracy ±0.1℃
External temperature sensor PT1000(accuracy±0.2℃)
Voltage 100-120/200-240V, 50/60Hz
Power 515W*4
Motor rating power 1.8W*4
Heating power 500W
Heating output 500W
Max. stirring quantity of single position[H2O]
10L
Max. magnetic bar[Length] 40mm
Dimension(W*D*H) 698*270*128mm
Permissible ambient temperature and humidity

5-40℃,80%RH

Speed range

200-1500rpm

Control accuracy of sensor ±20rpm
stirring  positions 4
Protection class IP21

4-channel LCD Digital magnetic hotplate stirrer

magnetic hotplate stirrer


magnetic stirrer

magnetic hotplate stirrer

digital magnetic stirrer




 magnetic hotplate stirrer

magnetic stirrer

digital magnetic stirrer
