YSD-MS-H280-Pro is a perfect device for handling small volume task on daily application, as a low temperature magnetic stirrer with max. temperature at 280°C.
Brand:
YU SHUO DAItem NO.:
YSD-MS-H280-ProPayment:
L/C D/A D/P T/T Western Union MoneyGramProduct Origin:
Liaoning ChinaShipping Port:
Dalian, ShanghaiLead Time:
15 days after paymentSize:
W150*D260*H100mmPower:
515W
Laboratory Double LED Digital 280℃ magnetic hotplate stirrer
Features:

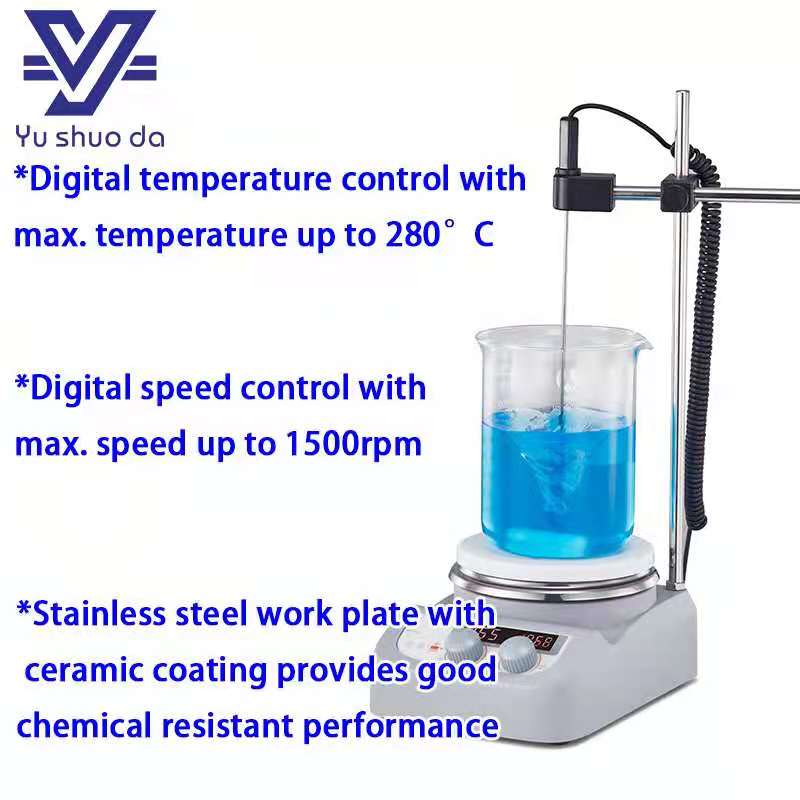

• Digital temperature control with max. temperature up to 280°C
• Digital speed control with max. speed up to 1500rpm

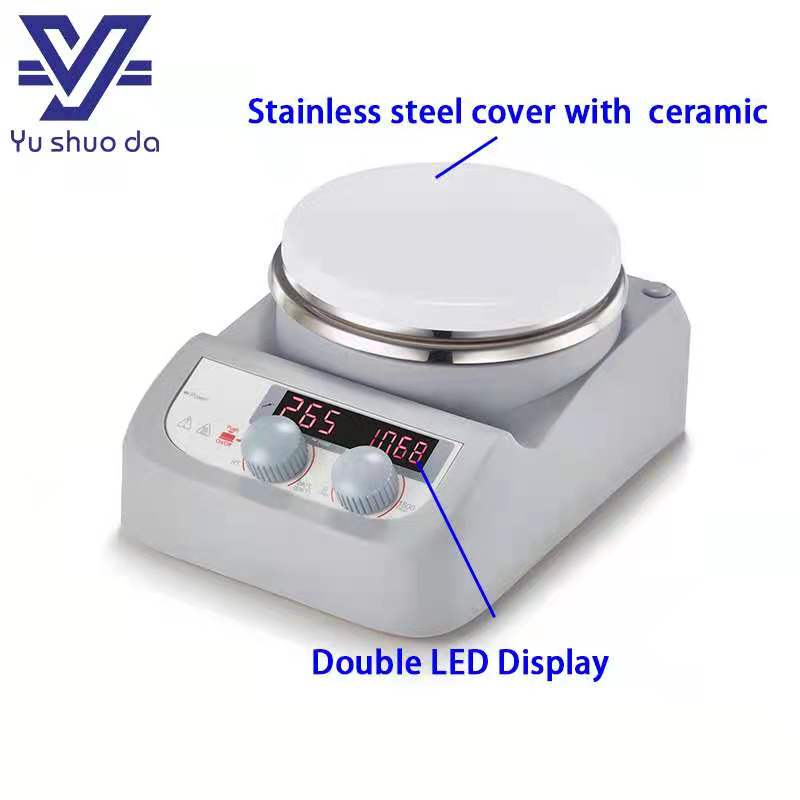

• Stainless steel work plate with ceramic coating provides good chemical resistant performance

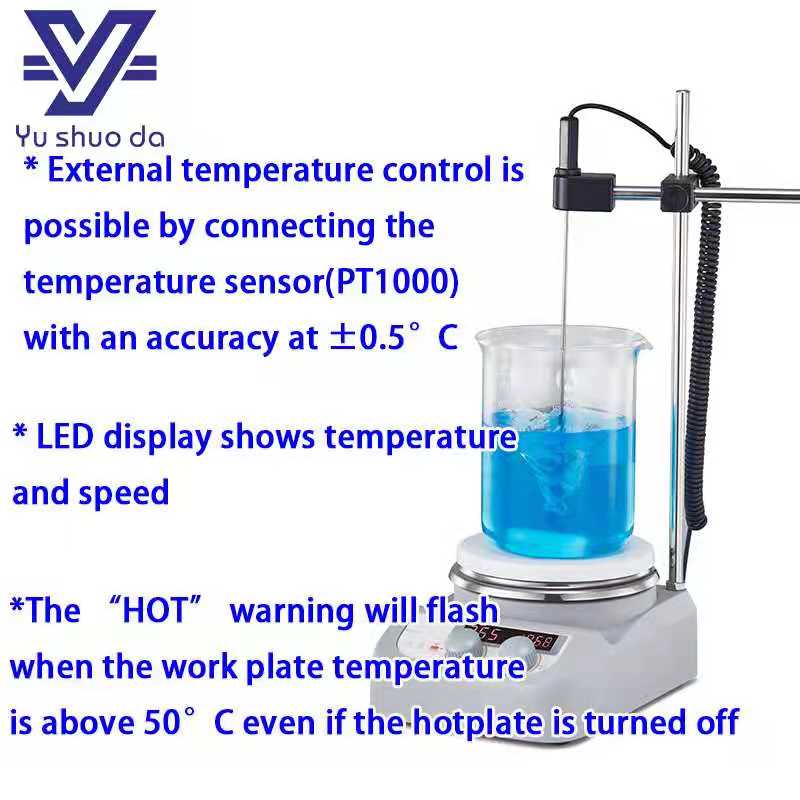

• External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.5°C
• LED display shows temperature and speed
• The “HOT” warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off
Laboratory Double LED Digital 280℃ Magnetic Hotplate Stirrer
Product name |
Laboratory Double LED Digital 280℃ Magnetic Hotplate Stirrer |
Motor type | Brushless DC motor |
Work plate dimension[W*D] |
φ135mm(5 inch) |
Work plate material |
Stainless steel with creamic |
Weight | 1.8 kg |
Speed display | LED |
Temperature display | LED |
Voltage | 100-120/200-240V, 50/60HZ |
Protection class | IP21 |
Power |
515W |
Heating output | 500W |
Dimension(D*W*H) | 260*150*80mm |
Permissible ambient temperature and humidity | 5-40℃,80%RH |
Max. stirring quantity[H2O] |
3L |
Max. magnetic bar[length] | 50mm |
Speed range |
200-1500rpm |
Speed display resolution | ±1 rpm |
Motor rating input | 5W |
Motor rating output | 3W |
Stirring positions | 1 |
Heating temperature range |
Room Temp.-280°C, increment 1℃ |
External temperature sensor | PT(accuracy±0.5℃) |
Control accuracy of work plate | ±1℃(<100℃)±1%(>100℃) |
Overheating protection | 320℃ |
Temperature display accuracy | ±1℃ |
Protection class | IP21 |
