340°C magnetic hotplate stirrers include all leading safety standards and features for superior ease of use and are cost-effective. They are widely used in chemical synthesis, physical and chemical analysis, bio pharmaceuticals, etc.
Brand:
YU SHUO DAItem NO.:
YSD-MS-H-SPayment:
L/C D/A D/P T/T Western Union MoneyGramProduct Origin:
Liaoning ChinaShipping Port:
Dalian, ShanghaiLead Time:
15 days after paymentSize:
W160*D280*H85mmPower:
530W

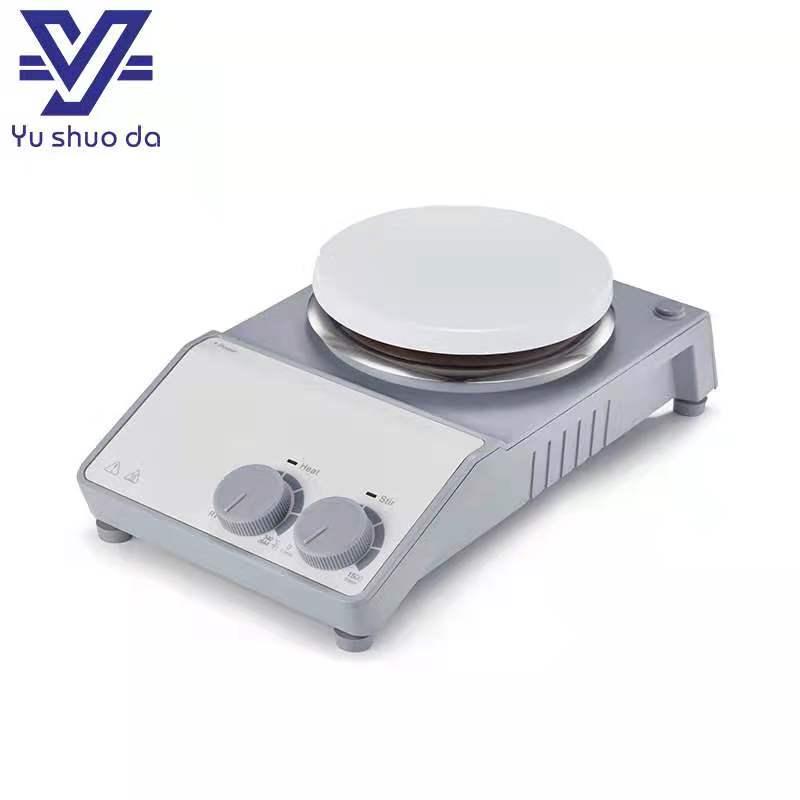

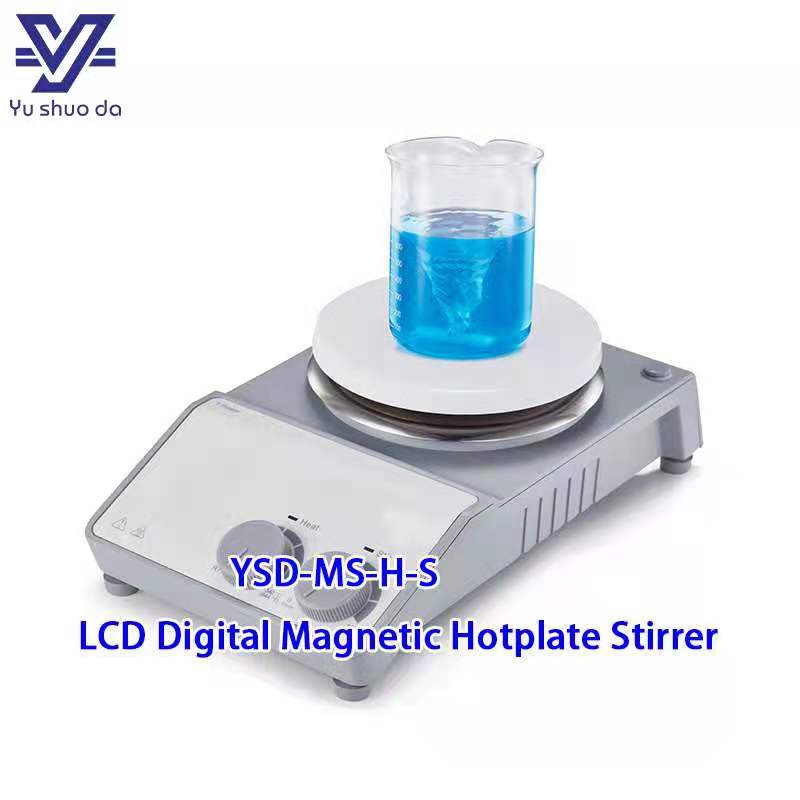

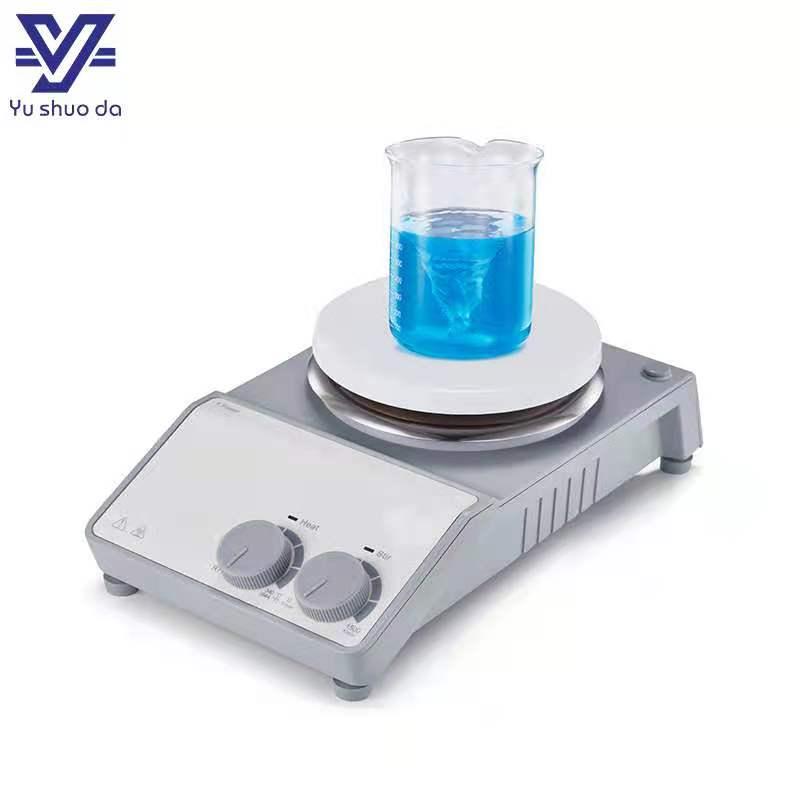

340℃ 5 inch Laboratory Large Magnetic Hotplate Stirrer
Features:

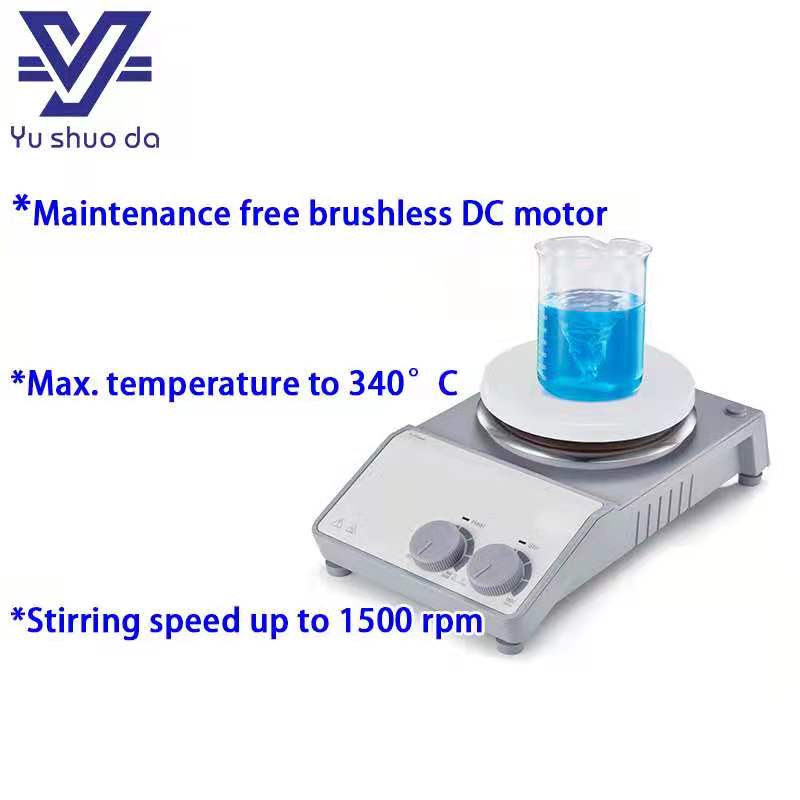

• Maintenance free brushless DC motor
• Max. temperature to 340°C
• Stirring speed up to 1500 rpm

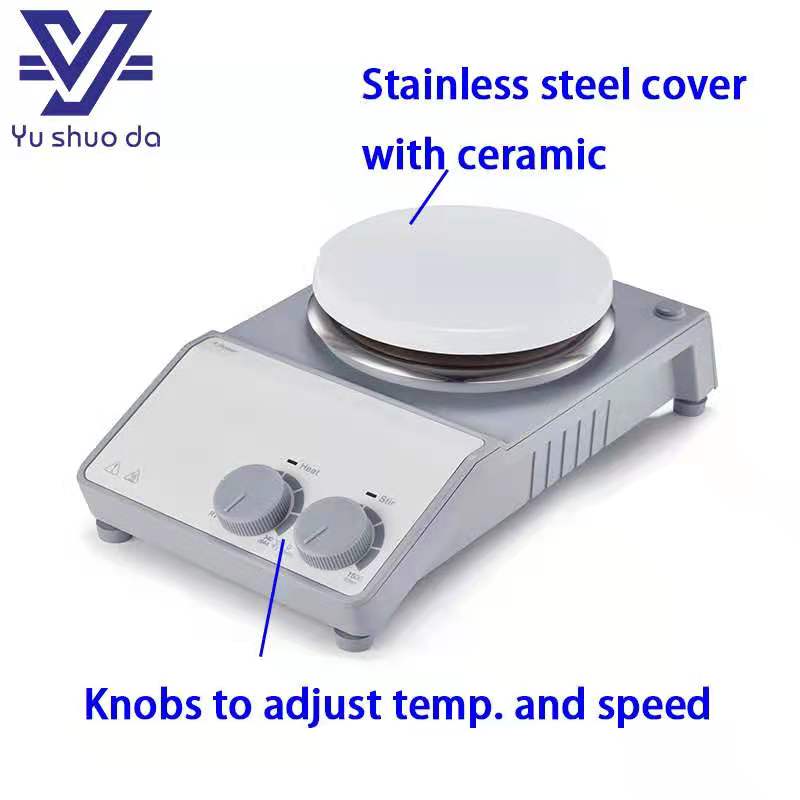

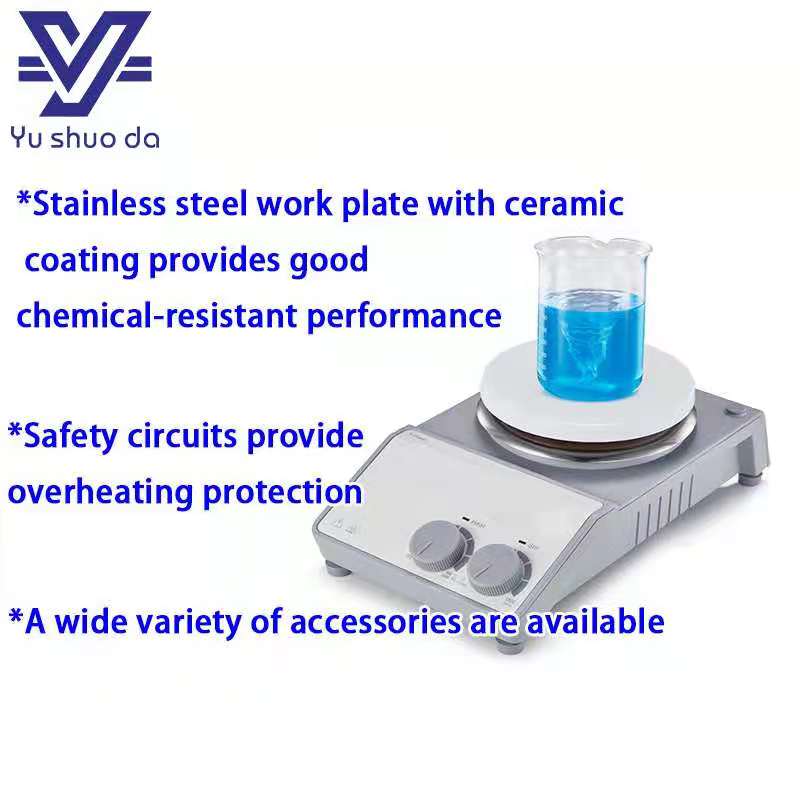

• Stainless steel work plate with ceramic coating provides good chemical-resistant performance
• Safety circuits provide overheating protection
• A wide variety of accessories are available
340℃ 5 inch Laboratory Large Magnetic Hotplate Stirrer
Product name |
340℃ 5 inch Laboratory Large Magnetic Hotplate Stirrer |
Motor type | Brushless DC motor |
Work plate dimension[W*D] |
φ135mm(5 inch) |
Work plate material |
Stainless steel with creamic |
Weight | 2.8 kg |
Speed display | Scale |
Temperature display | Scale |
Voltage | 100-120/200-240V, 50/60HZ |
Protection class | IP21 |
Power |
530W |
Heating output | 500W |
Dimension(D*W*H) | 280*160*85mm |
Permissible ambient temperature and humidity | 5-40℃,80%RH |
Max. stirring quantity[H2O] |
20L |
Max. magnetic bar[length] | 80mm |
Speed range |
0-1500rpm, resolution±1rpm |
Motor rating input | 18W |
Motor rating output | 10W |
Stirring positions | 1 |
Heating temperature range |
Room Temp.-340°C |
Over temperature protection |
420℃ |
Protection class | IP21 |
Laboratory Large Magnetic Hotplate Stirrer
