Histology automated mechanical tissue slide stainer is used in Hospital, Medical College, Sanitation and Anti-epidemic Station, Biological Research Lab, etc.
Brand:
YU SHUO DAItem NO.:
YSD-360Goods Stock:
10Lead Time:
15~25 days after we confirm the orderSize:
705*300*280mm(W*D*H)Power:
100WCapacity:
20 stations, each stations 135MLProduct Description

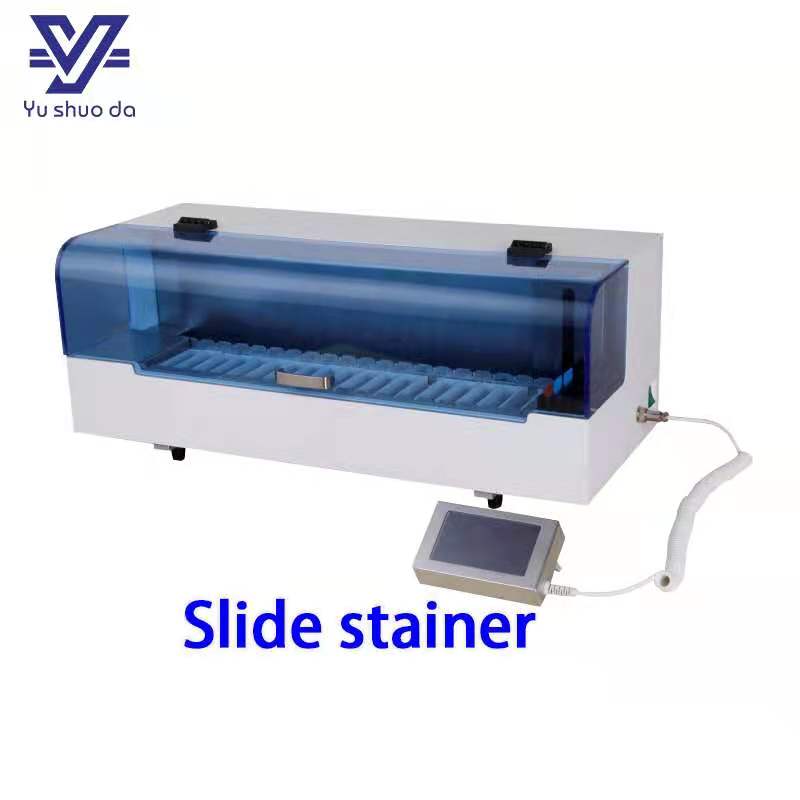

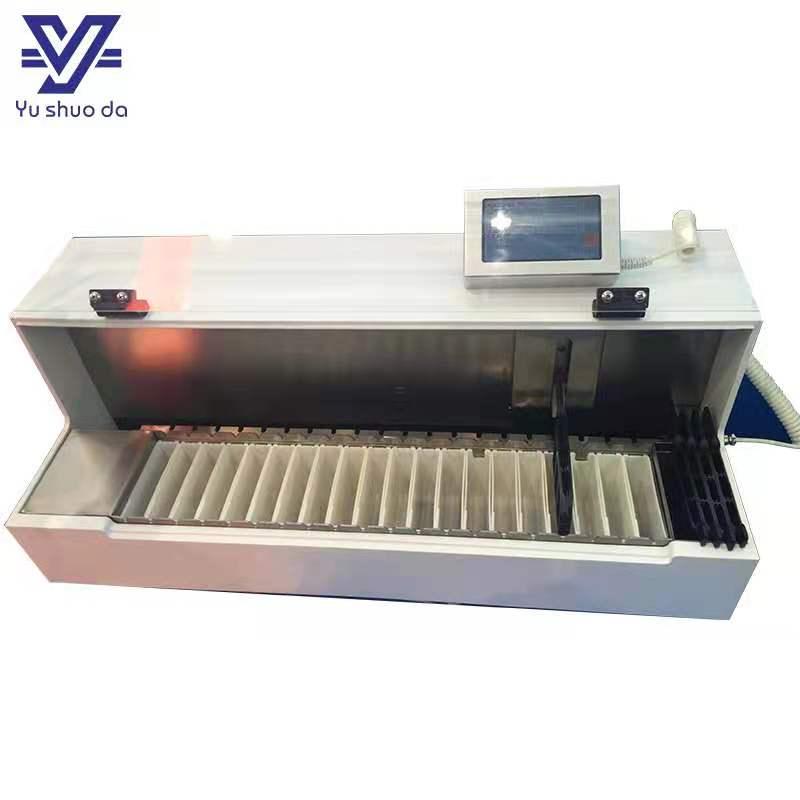

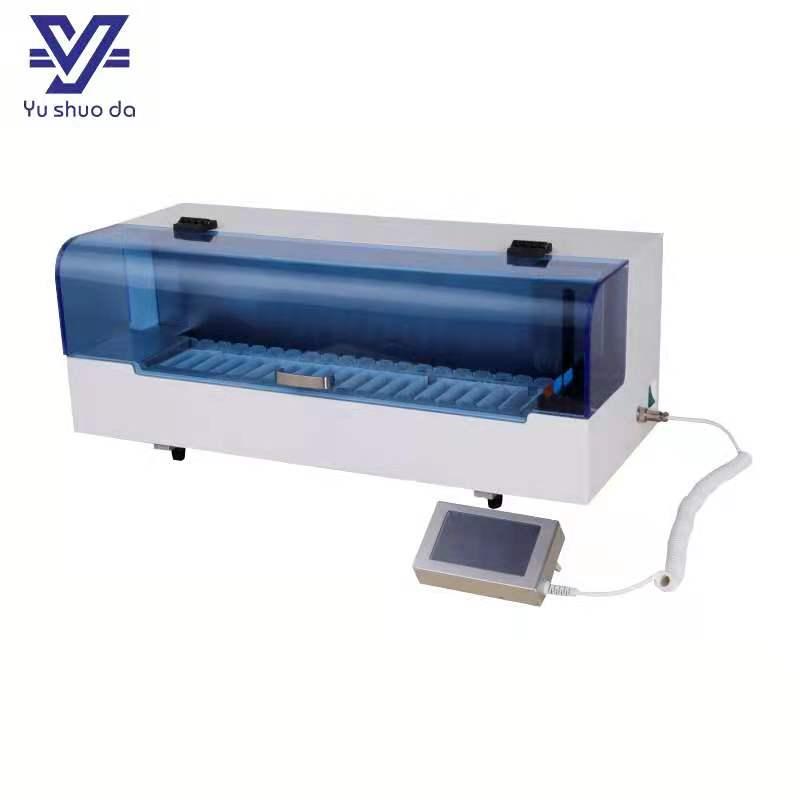

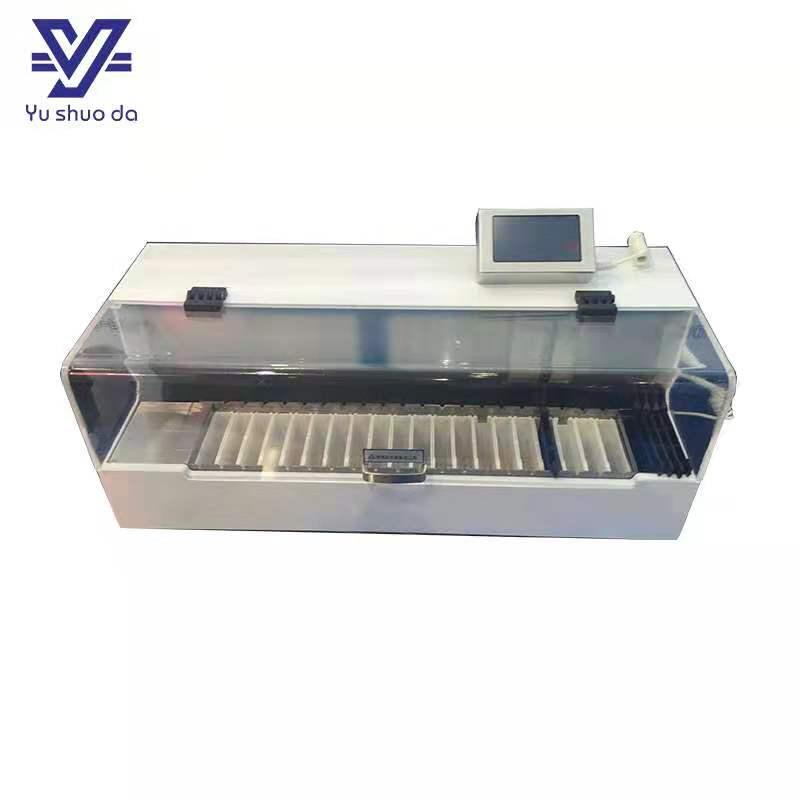

Histology automated mechanical tissue slide stainer
The stainer has many advantages for users, such as fast staining, comfortable and safe operation. And also the unit has an optical plastics cover and the air exhausting device to make it more safety and environmental. The Slide rack can be put in any station, it will run after self-induction. The unit has high efficiency on staining progress.
Feature:

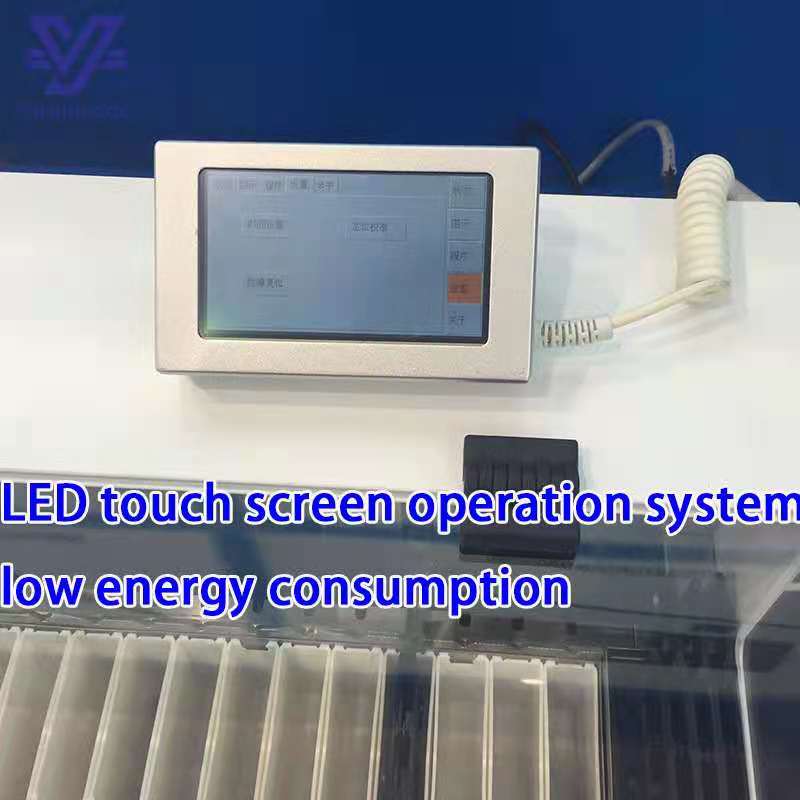

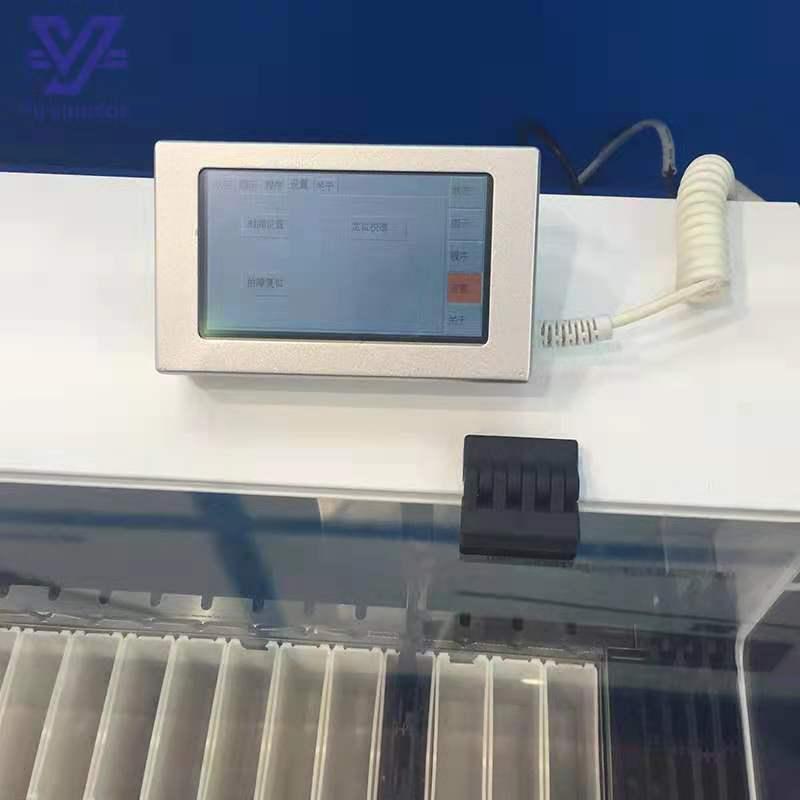

1.Small Size for the unit. With LED touch operation system. It has unique design for the mechanical arm with low energy consumption.
2. Sample can be added anytime for continuous staining.
3. When one station takes longer working time, more repeat station can be set for speed up working process.

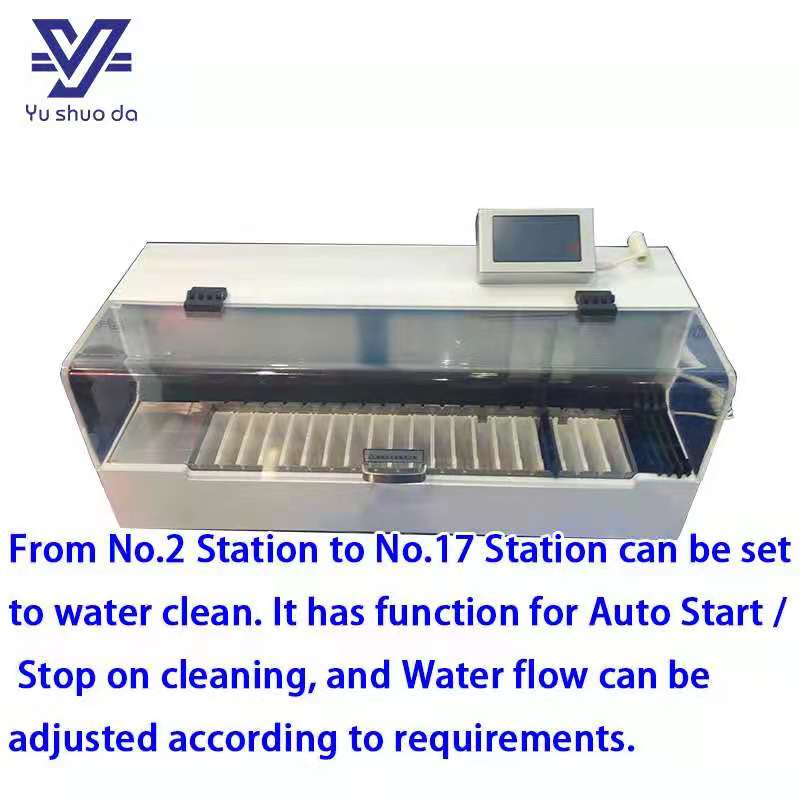

4. From No.2 Station to No.17 Station can be set to water clean. It has function for Auto Start / Stop on cleaning, and Water flow can be adjusted according to requirements.
5. Any station can be set for end station; it will buzz until staining work finished.
6. With water protection device, when water blockage, it will shut off water resource itself and make the warning cue.

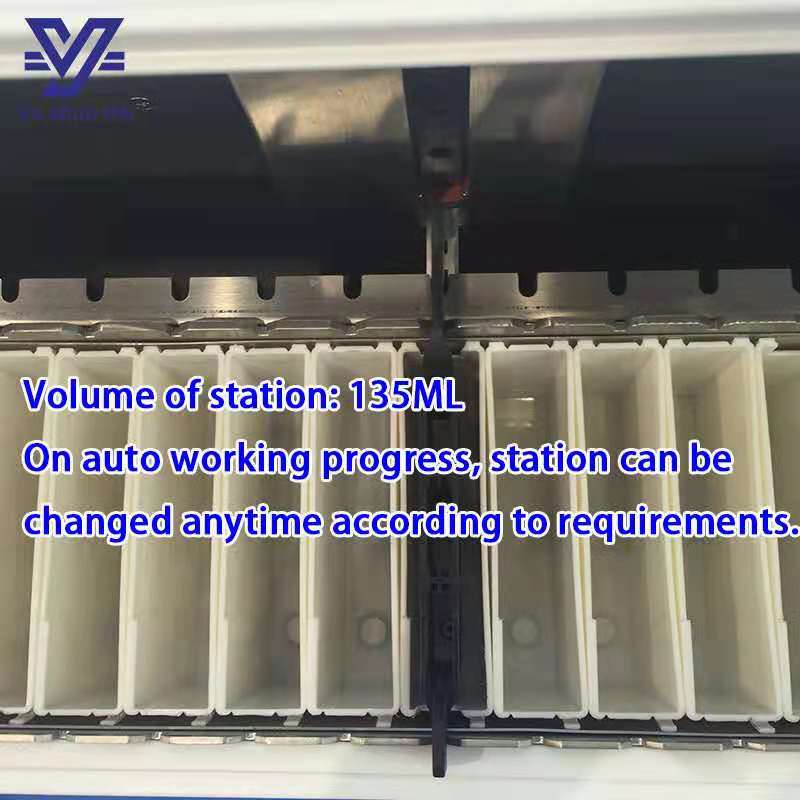

7. On auto working progress, station can be changed anytime according to requirements.
8. Staining Work State shown by Dynamic Graph.
Histology automated mechanical tissue slide stainer
Capacity of single cup

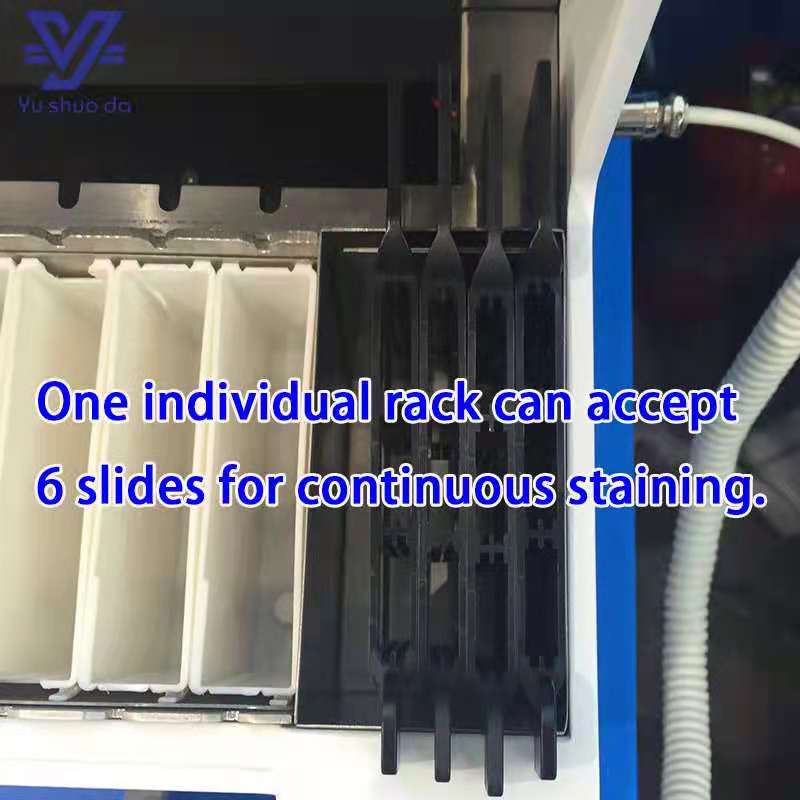

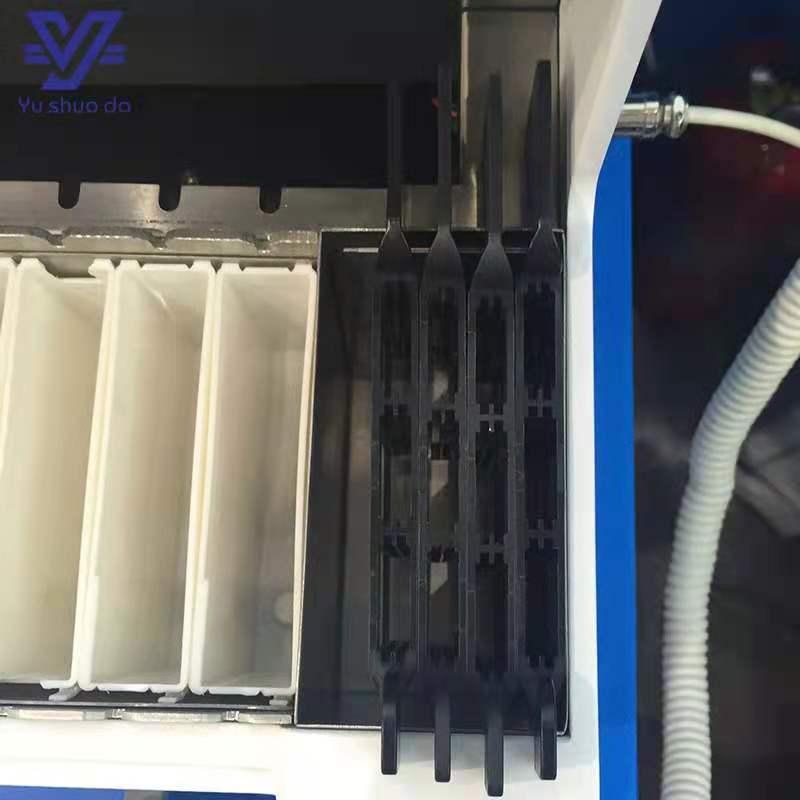

6 pcs slides in each holder, for continuous staining process
Number of station

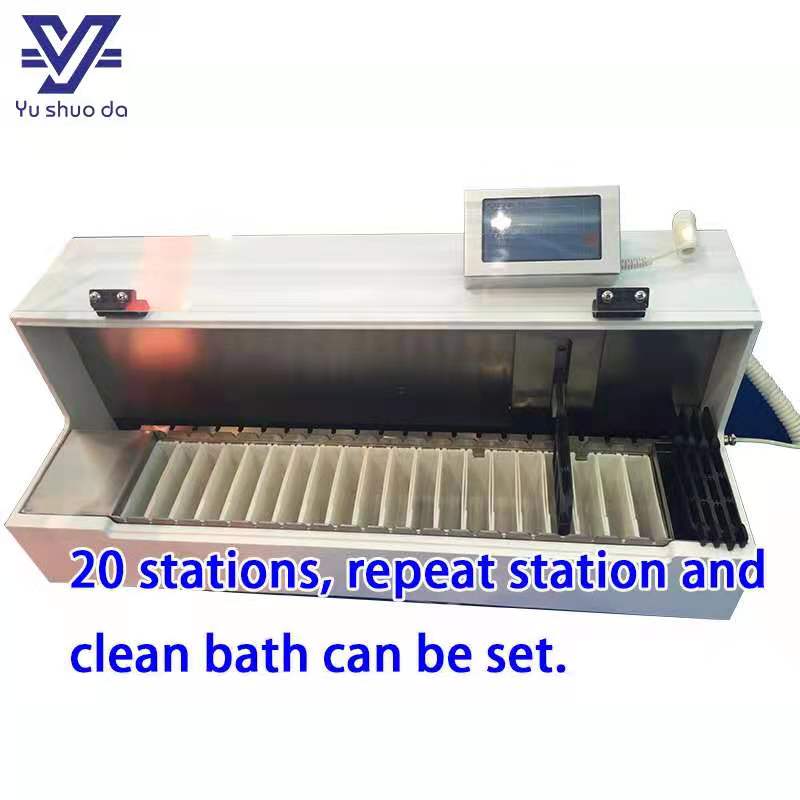

20 pcs, repeat station and clean bath can be set.
Volumn of station
135ML
Length of processing time in the cup
Adjustable within 0-59 minutes and within 0-59 seconds
Time for changing station, stay and leaching liquid
10s
Number of program
10 pcs, with remind code for online faulty.
Working Voltage
AC220V±10% 50HZ/ AC110V± 10% 60HZ
Product
Histology automated mechanical tissue slide stainer
Frequency
50HZ/60HZ
Power
100W
Dimensions
705*300*280mm(W*D*H)
Net weight
21KG

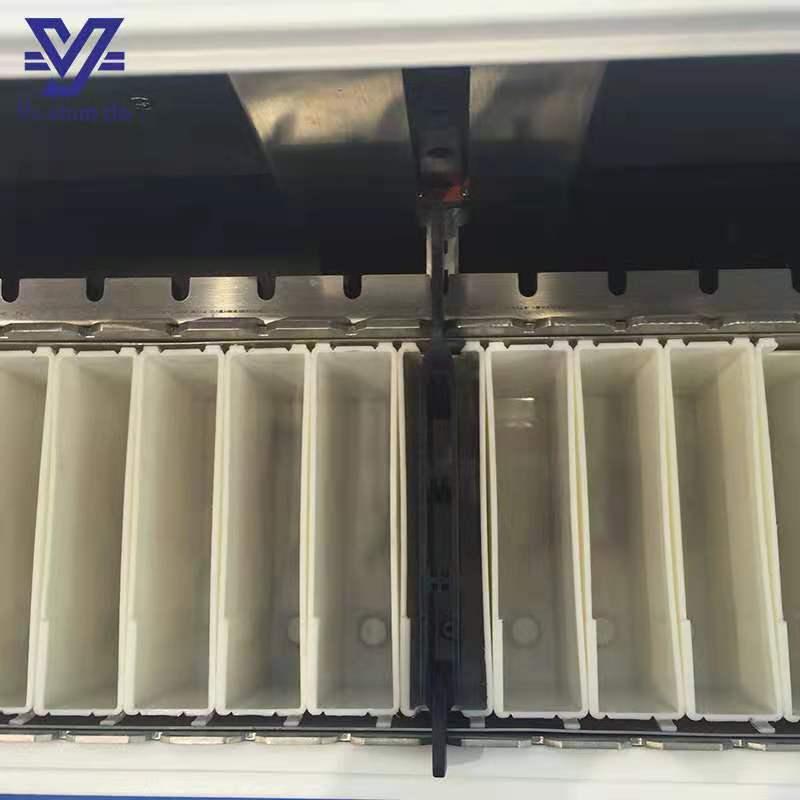

Tissue slide stainer Details
