Automatic tissue slide stainer is an efficient stainer that provides powerful staining capability at a reasonable price.
Brand:
YU SHUO DAItem NO.:
YSD-350Goods Stock:
10Lead Time:
15~25 days after we confirm the orderSize:
925*250*260mm(W*D*H)Capacity:
15 stationsProduct Description
Automatic tissue slide stainer
1.Processing time for each station: 0 seconds to 59 minutes
2.Agitation frequency during container stay can be programmed ranging from 0 to 6 minutes.
3.Dripping duration can be programmed ranging from 0 to 60 seconds.
4.There can be a total of 10 users, including 1 public user (no password - user#: 0) and 9 individual users who require a password (user#: 1-9).

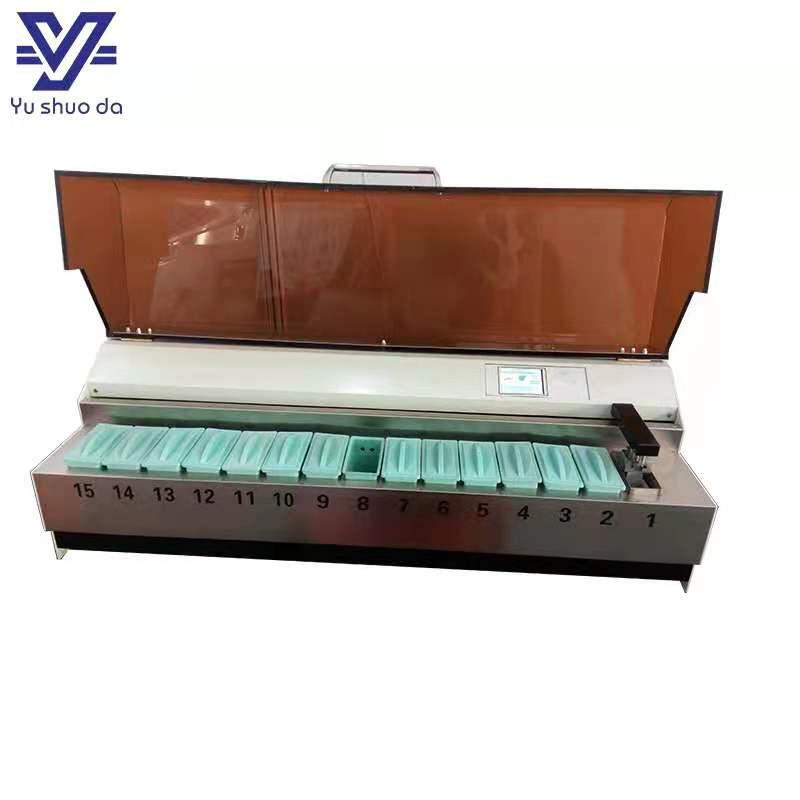

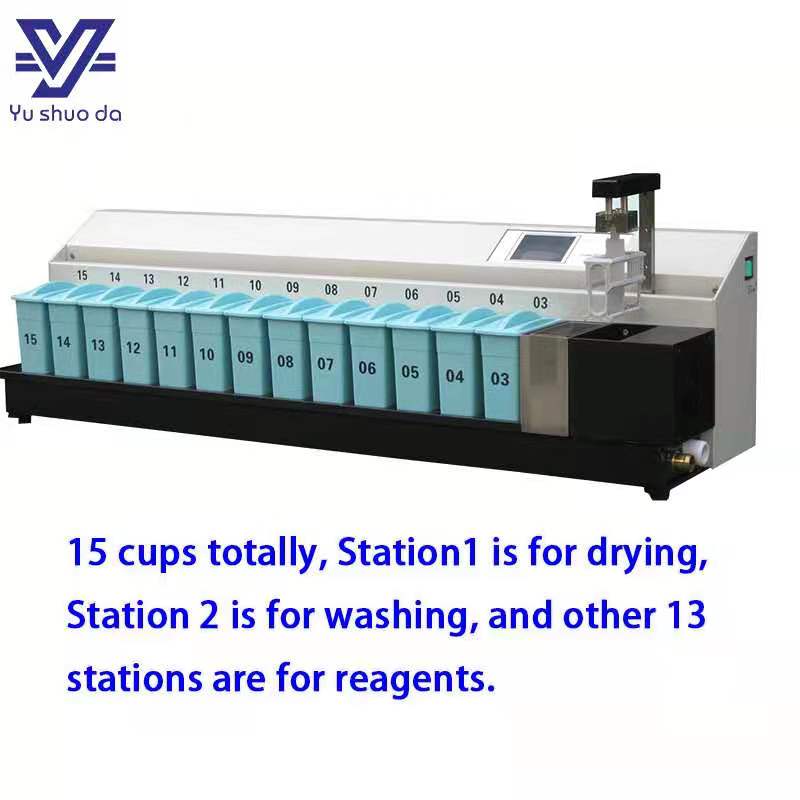

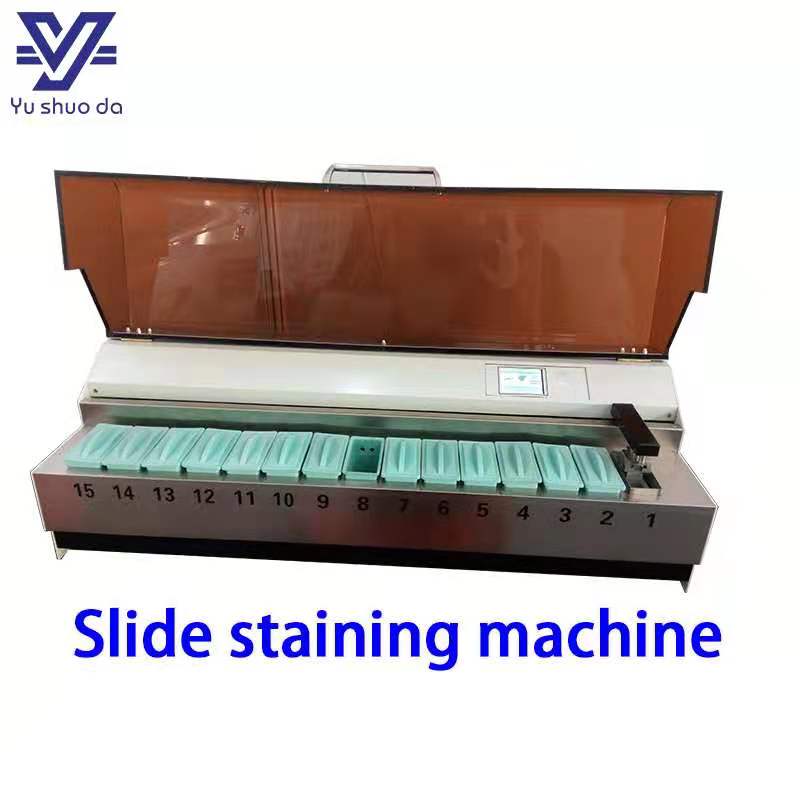

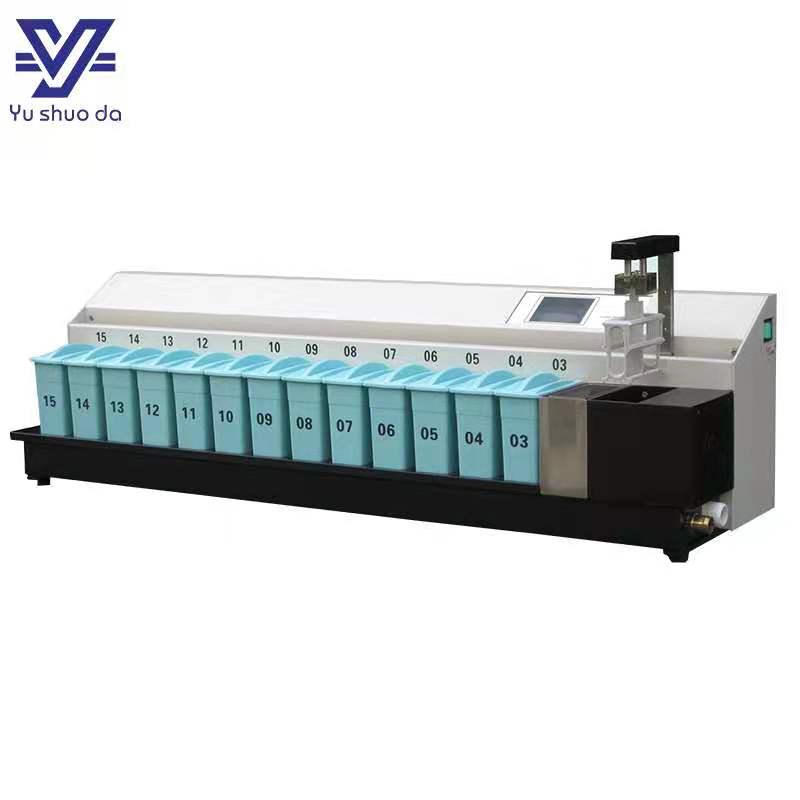

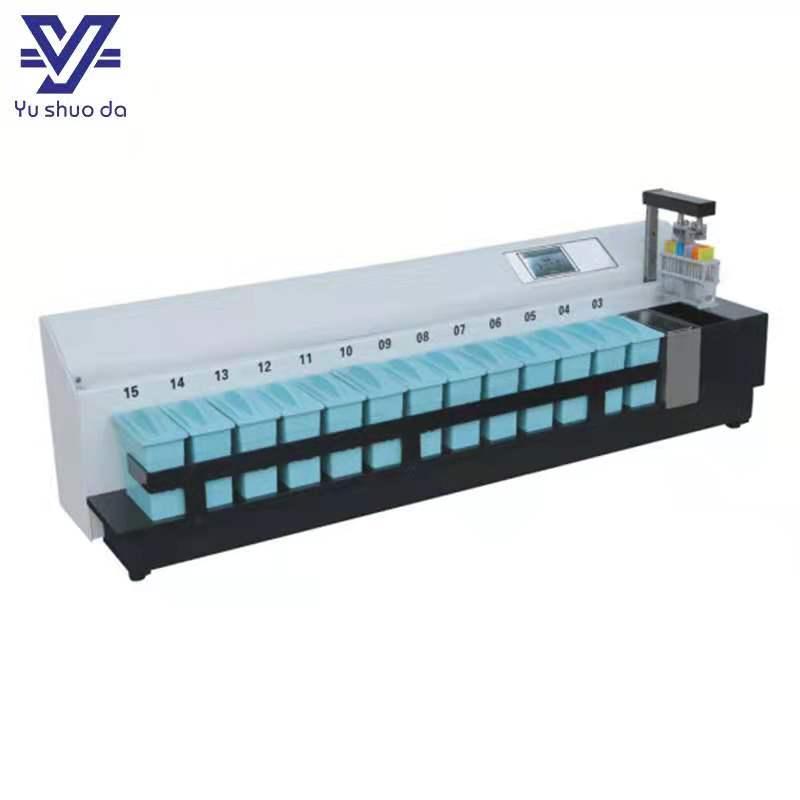

5.15 total stations - The first bath is the dryer station, the second bath is the rinsing station, the rest of the baths are reagent stations.
6.The unit is only 36 inches long and 9 inches high
7.Fully programmable dip time, drip time and agitation
8.Ideal for frozen section staining
9.Holds 30 programs with 25 steps each
10.Manual or automatic modes
11.Password protected user area

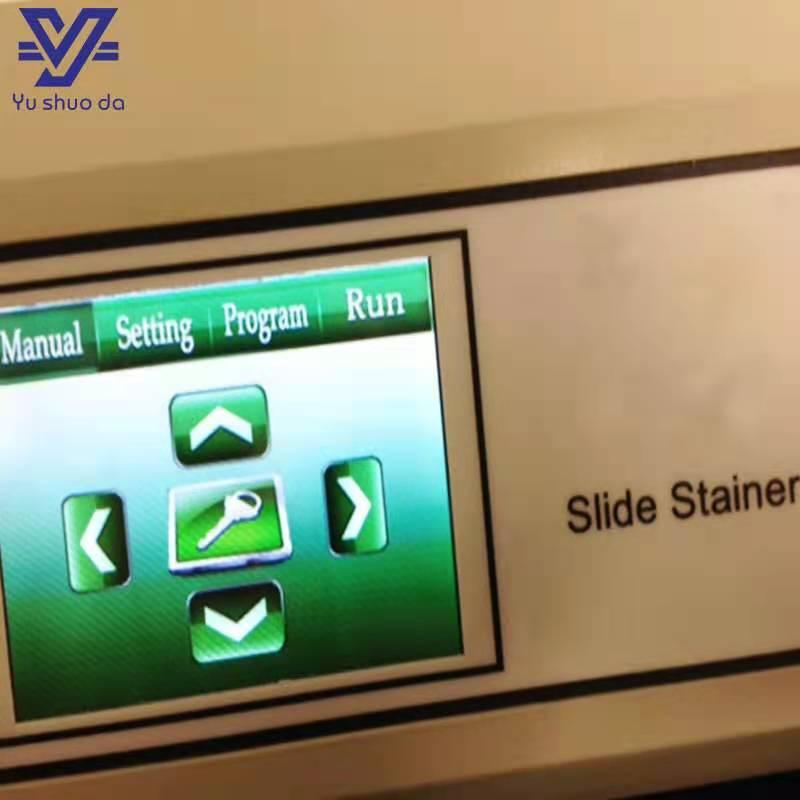

12.Touch screen programming and status view
Feature:

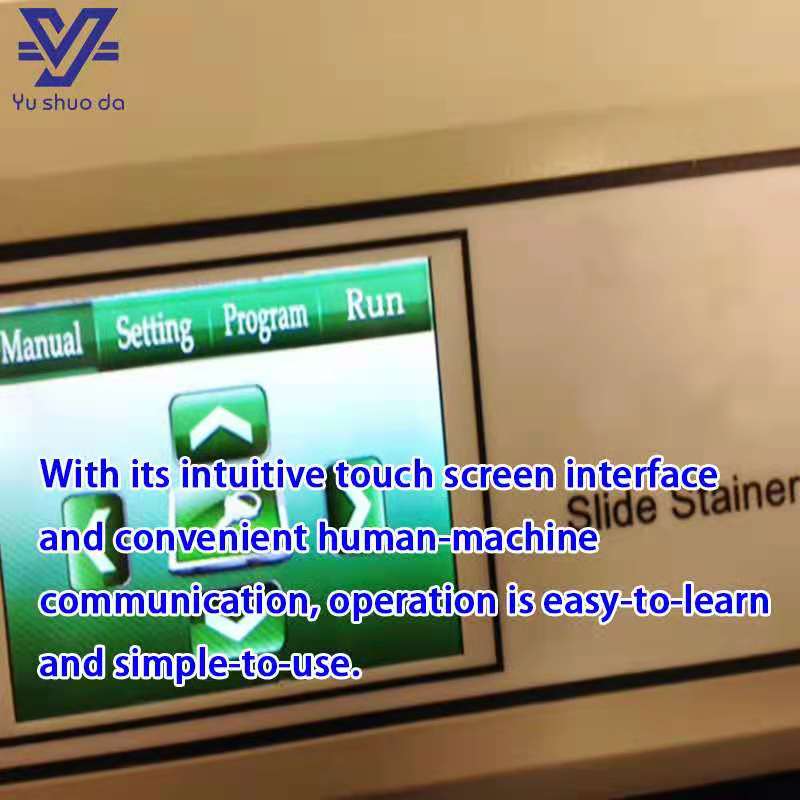

1. With its intuitive touch screen interface and convenient human-machine communication, operation is easy-to-learn and simple-to-use.
2. Integrated touch screen with intuitive high-intelligence control system offers a full set of functions, reliable performance, and simple operation.
3. The APS coated, streamline-designed, easy-to-clean sturdy housing with high resistance to corrosion.

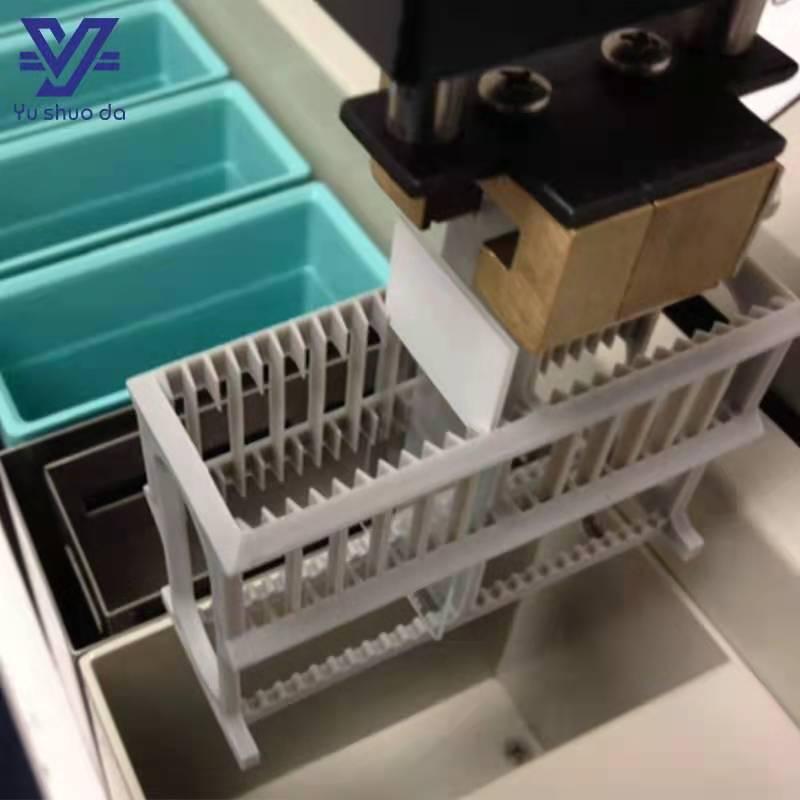

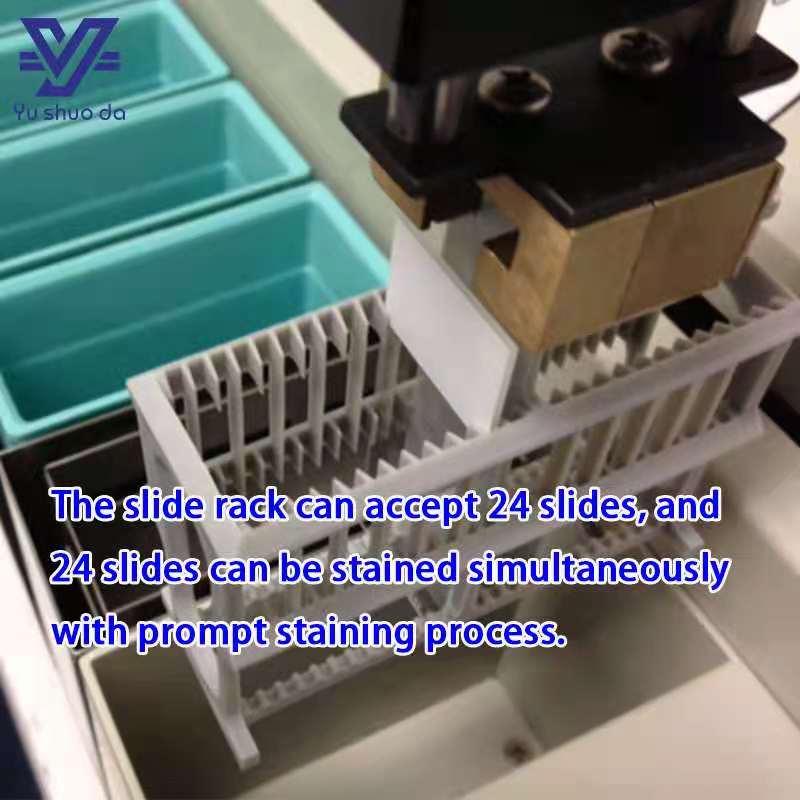

4. 24 slides can be stained simultaneously with prompt staining process.
5. The slide rack can be optionally stopped either above or submerged in cup based on user’s selection after the staining process ends, with beeping to alert the user.

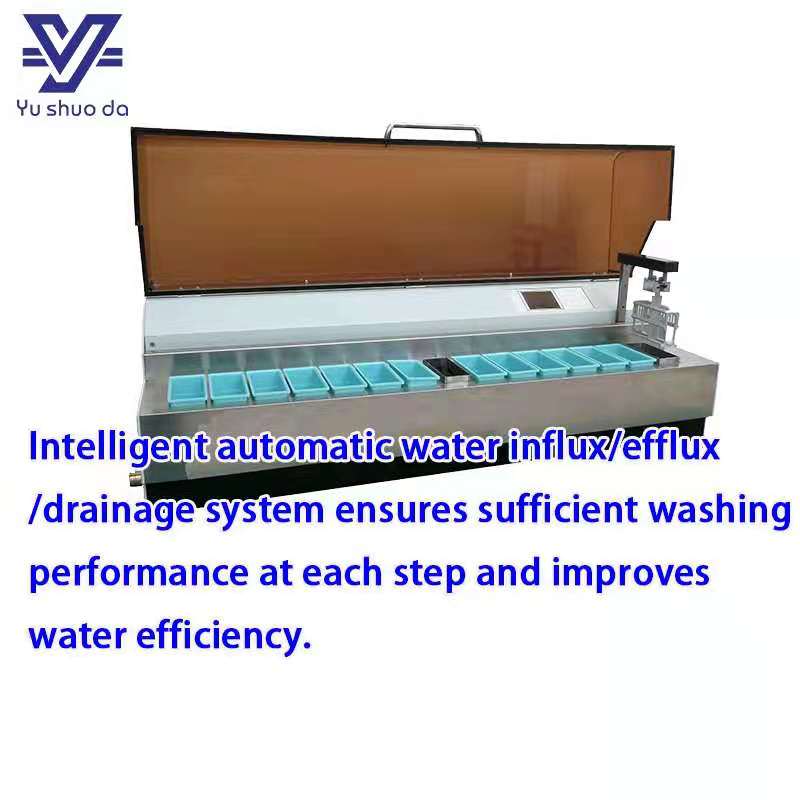

6. Intelligent automatic water influx/efflux /drainage system ensures sufficient washing performance at each step and improves water efficiency.

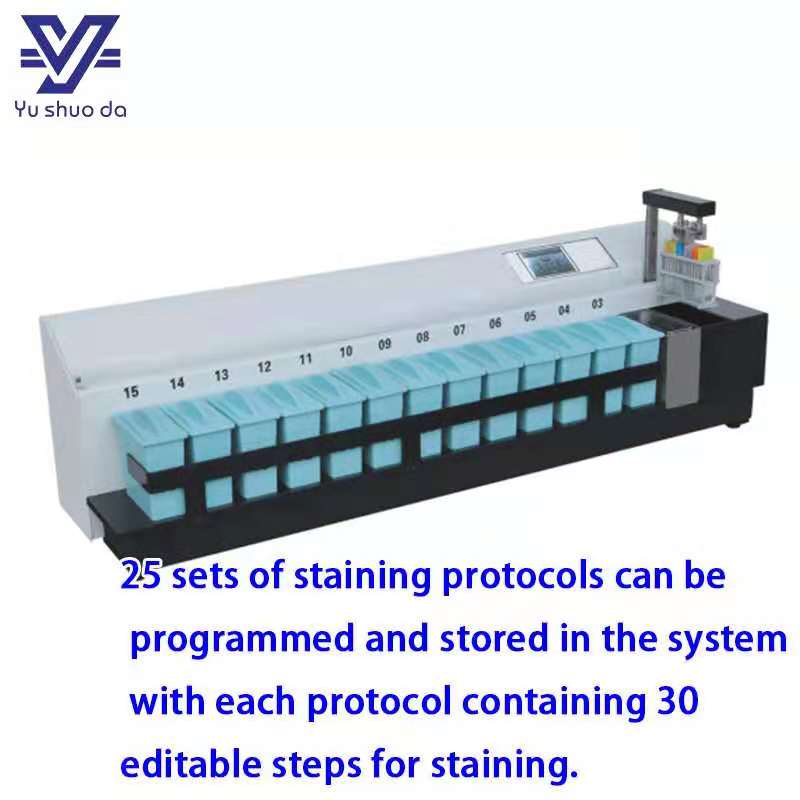

7. 25 sets of staining protocols can be programmed and stored in the system with each protocol containing 30 editable steps for staining.
8.Operation error alert.
Automatic tissue slide stainer
Dimensions
925*250*260mm(W*D*H)
Clearance height
18.2'' 47cm
Weight
27KG
Staining time
Adjustable within 0-59 minutes and within 0-59 seconds
Agitation
0-60s adjustable
Number of reagent stations
15
Exit tank capacity
24 slides
Product
Automatic tissue slide stainer
Reagent container volumn
350ML
Tissue slide stainer Details
