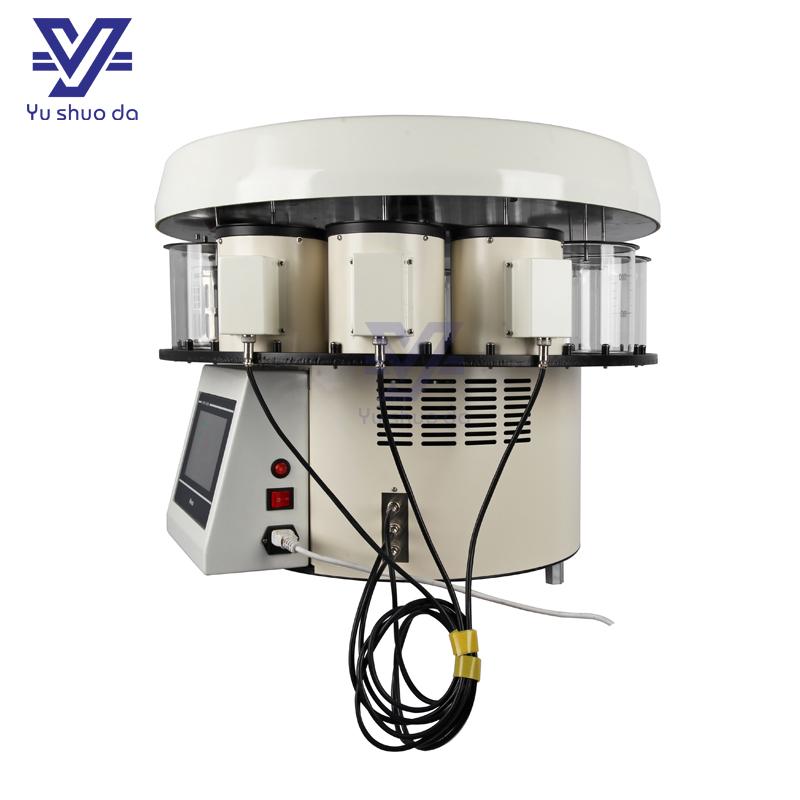

Spin tissue Processor with glass jars easy to operate
Brand:
YU SHUO DAItem NO.:
YSD-260Goods Stock:
10Lead Time:
15~25 days after we confirm the orderSize:
Capacity :2.3L /1.3LProduct Description
YSD 260 automatic spin tissue processor and YSD 260-V automatic Vacuum spin tissue processor are equipment that perform tissue infiltration , through the combination of an efficient and well-tested technology
It is widely applied in pathologic laboratories , medical colleges and universities , animal and plan scientific research institute and food inspection department
The combination of a silent and robust and robust precision mechanism , plus new software , enable the user to attain the highest degree of felicity , as all function can be programmed
TISSUE PROCESSOR
|
|||
|
Model No.
|
YSD-260 Auto tissue processor
|
YSD-260V Vacuum tissue processor
|
Vacuum
|
x
|
0.053MPa
|
|
Temperature range
|
45℃ to 85℃
|
45℃ to 85℃
|
|
Tissue processing steps
|
12 steps
|
12 steps
|
|
Number of reagent cups
|
9 (with a volume of 1.3L/
2.3L for a larger volume) |
9 (with a volume of 1.3L/
2.3L for a larger volume) |
|
Number of paraffin cups
|
3 (with a volume of 1L/
1.8L for a larger volume) |
3 (with a volume of 1L/
1.8L for a larger volume) |
|
Minimum time interval setting
|
1 min
|
1 min
|
|
Frequency of basket stirring
|
≥10 times/hour, 30 sec for each time
|
≥10 times/hour, 30 sec for each time
|
|
Program:Duration in each cup
|
0-10 hours(10 programs)
|
0-10 hours(10 programs)
|
|
Program:Maximal turn-on dely
|
1 month
|
1 month
|
|
Size of basket
|
95mm*80mm
|
95mm*80mm
|
|
Technical Data
|
Voltage and frequency
|
AC 220V±10% 50Hz (standard model)
|
AC 220V±10% 50Hz (standard model)
|
Power
|
500W (1.3L), 1000W (2.3L)
|
500W (1.3L), 1000W (2.3L)
|
|
Dimension
|
Net weight
|
60KG
|
60KG
|
Size
|
670(D)*540(H),680mm at the highest point
|
670(D)*540(H),680mm at the highest point
|
|
|
Capacity:1.3L
|
Main box:72.5*72.5*67cm 60KG
Accessories box:50.5*50.5*47.5 cm 31KG
|
Main box:72.5*72.5*67cm 60KG
Accessories box:50.5*50.5*47.5 cm 31KG |
Capacity:2.3L
|
Main box:86.5*86.5*71cm 64KGAccessories box:68*46.7*47.5cm 35KG
|
Main box:86.5*86.5*71cm 64KGAccessories box:68*46.7*47.5cm 35KG
|
●Through this versatility , each user can adjust the unit to the specific requirements
●Microprocessor operation control to ensure operating convenience and working stability
●Tissue basket relocating controlling enabling the tissue to be put in any tank
●Electricity protection and obstacle protection functions
●Agitation model to guarantee the complete mix and contact with the tissue , solvent and paraffin so as to achieve good dehydrate effect .
●Large touch-scene LCD screen shows every step puff processing and easy for monitoring Timing :
A . Delay timing up to 30 days
B. Tank process timing up to 10 hours
C. Timing increment :1 min
