LED Digital Rotary Evaporator is an essential instrument in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It offers an excellent distilling solution in a wide range of applications.
Brand:
YU SHUO DAItem NO.:
YSD-RE100-SPayment:
L/C D/A D/P T/T Western Union MoneyGramProduct Origin:
Liaoning ChinaShipping Port:
Dalian, ShanghaiLead Time:
15 days after paymentSize:
W320*D440*H450mmPower:
1245W

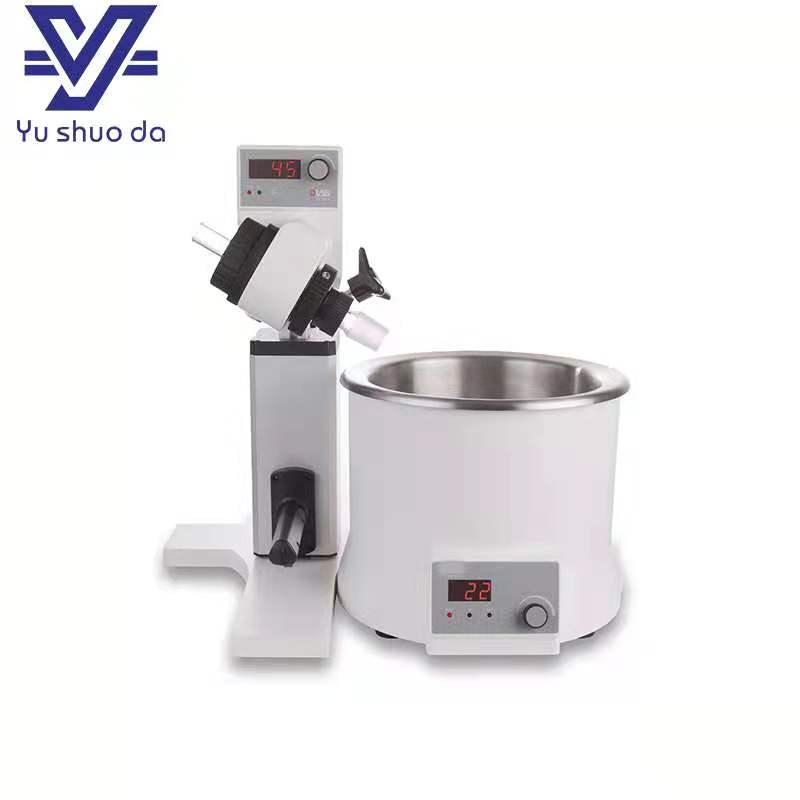

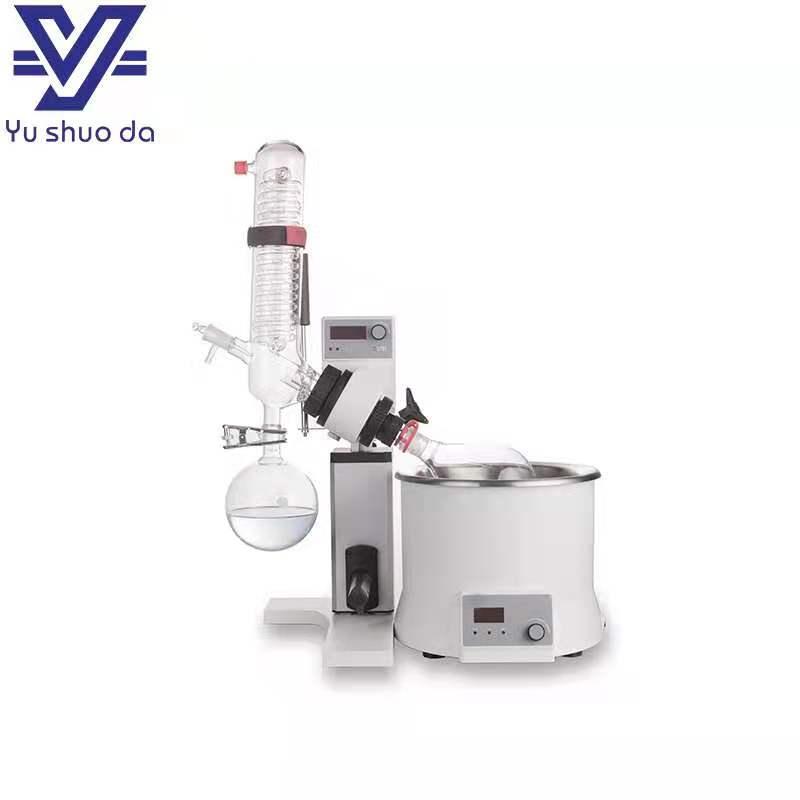

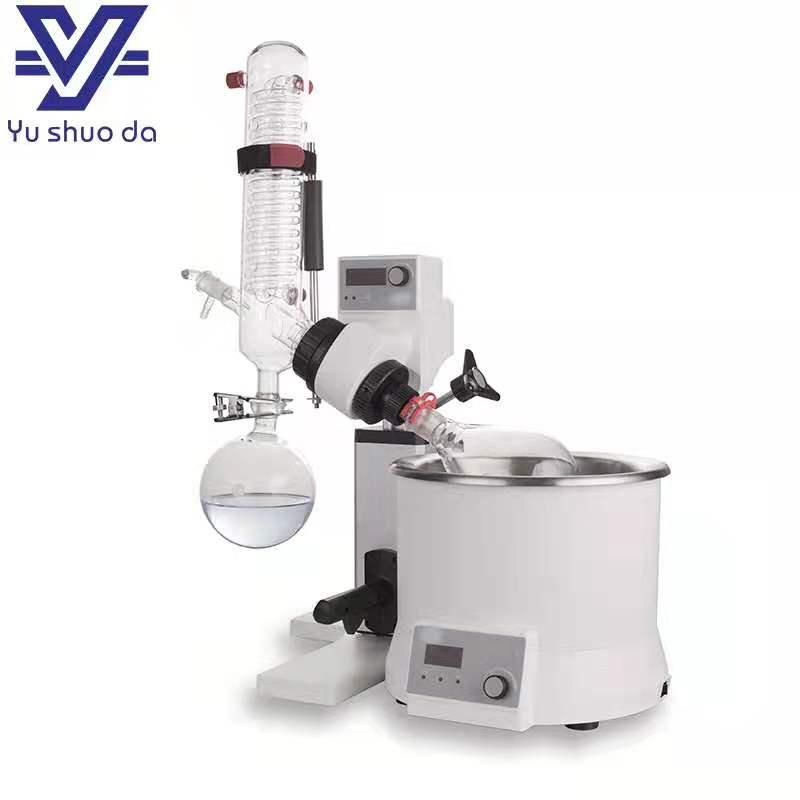

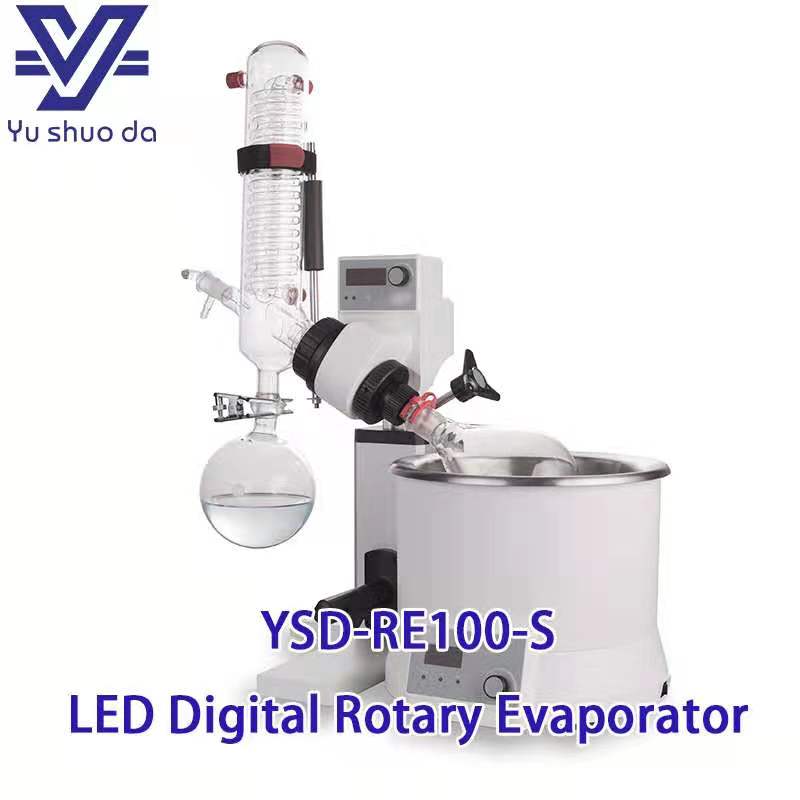

YSD-RE100-S LED Digital rotary evaporator
RE100-S LED Digital Rotary Evaporator is a basic chemical laboratory instrument suitable for evaporation, distillation and separation of chemicals. It can be used as a multifunctional system in combination with vacuum pump,vacuum controller and circulating refrigerators to provide excellent distillation solutions in many laboratory applications.
Features:

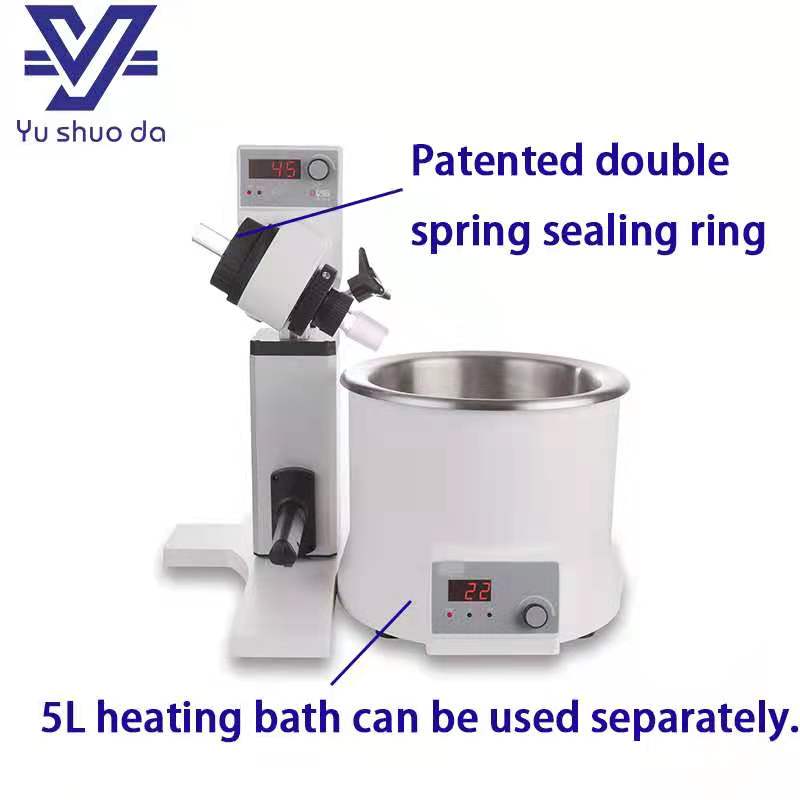

*5L heating bath with a wide temperature range(room temp. to 180C), independent temperature control, make it can be used separately. Water/ oil heating mode can be changed only through a switch.

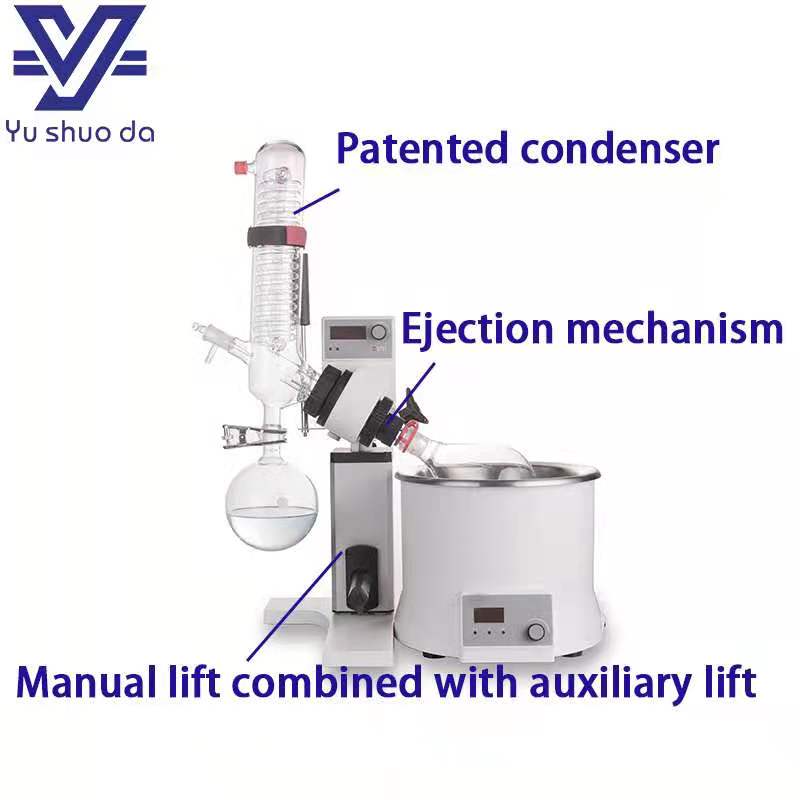

*Manual lift combined with auxiliary lift for precise positioning of the glassware
*PID control ensures high temperature accuracy at ±1℃(water)
*Overheating protection temperature at 220C
*Boil-dry protection, automatically power-off if heating without water-oil in the heating bath
LED Digital rotary evaporator
Product name |
LED digital rotary evaporator |
Motor type |
Brushless DC motor |
Speed range |
20-200rpm |
Display | LED(speed, temperature, time) |
Clockwise and Anti-clockwise |
Yes |
Heating temperature Range |
Room temp. to 180℃ |
Control accuracy | water: ±1℃; oil: ±3℃ |
Heating power | 1200W |
Stroke Displacement |
Manual 110mm+auxiliary 100mm |
Time setting range |
1-999s |
Dimension[D*W*H] |
Main unit:440*320*450mm Heating bath: 300*300&*240mm |
Weight |
Main unit: 7kg Heating bath: 3kg |
Permissible ambient temperature |
5-40℃ |
Permissible relative humidity |
80%RH |
Protection class |
IP20 |
USB interface | Yes |
Voltage/Frequency |
100-120/200-240V 50/60Hz |
Power | 1245W |
LED digital rotary evaporator
