Overhead Stirrers can accomplish the most demanding tasks and provide high safety and increased performance. They are widely used in chemical synthesis, pharmaceutical synthesis, physical and chemical
analysis,petrochemical industries, etc.
Brand:
YU SHUO DAItem NO.:
YSD-OS40-ProPayment:
L/C D/A D/P T/T Western Union MoneyGramProduct Origin:
Liaoning ChinaShipping Port:
Dalian, ShanghaiLead Time:
15 days after paymentSize:
W83*D186*H220mmPower:
130W

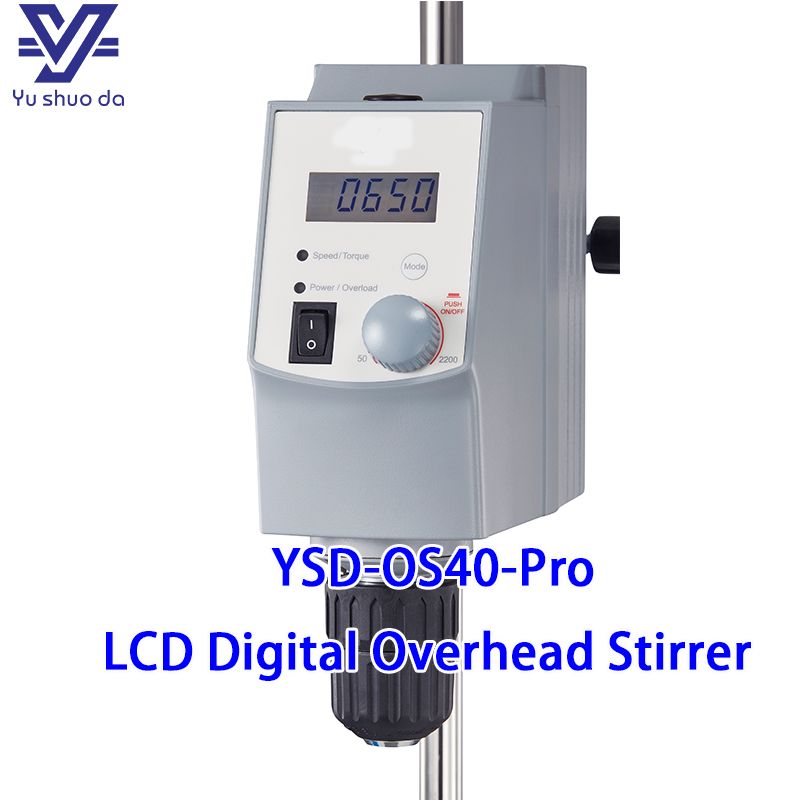

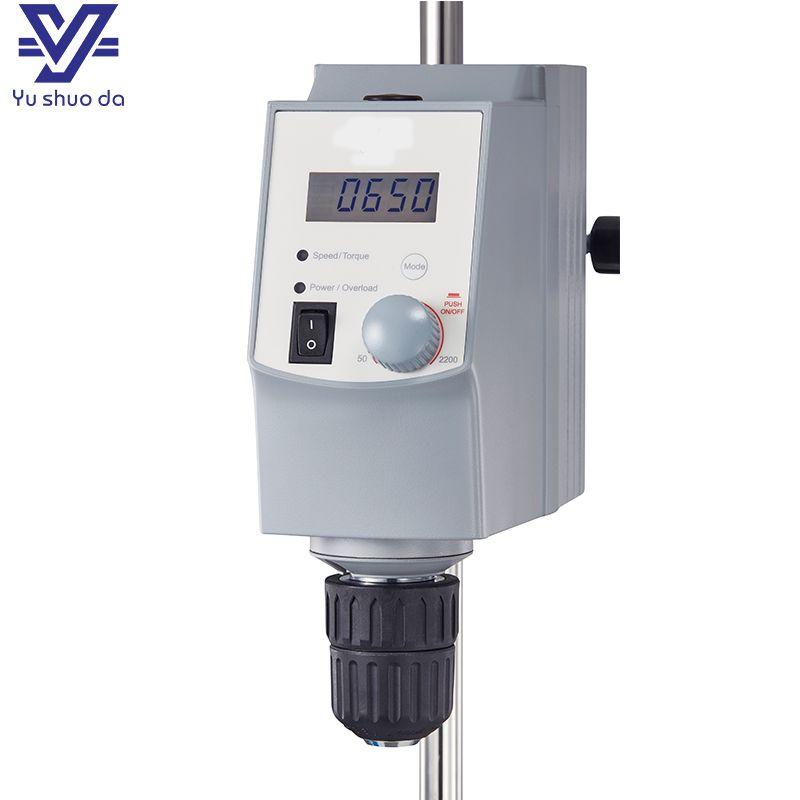

YSD-OS40-Pro High Quality LCD Digital Overhead Stirrer

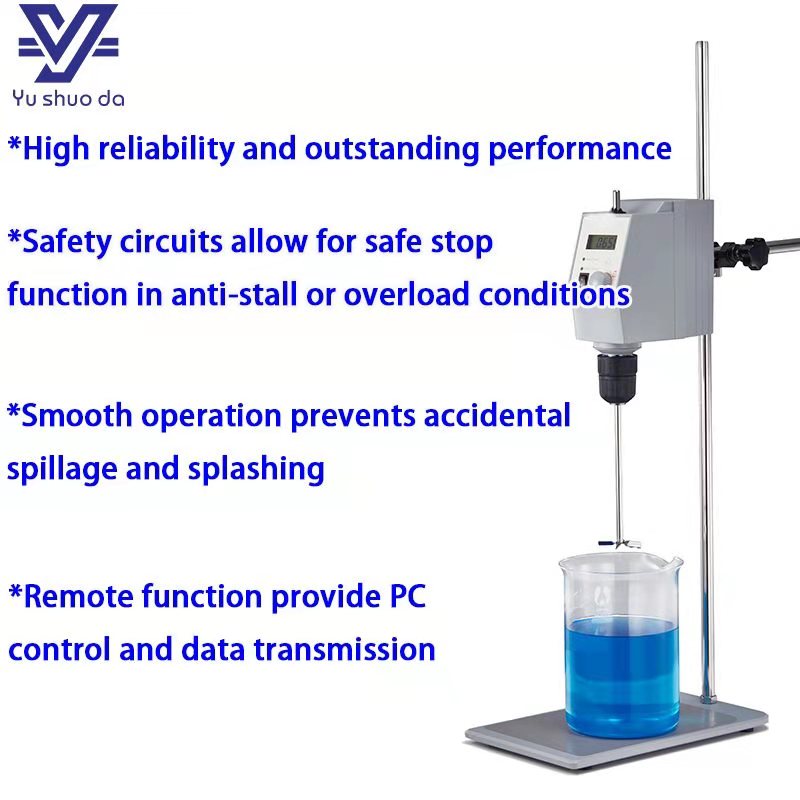

Features:
• High reliability and outstanding performance

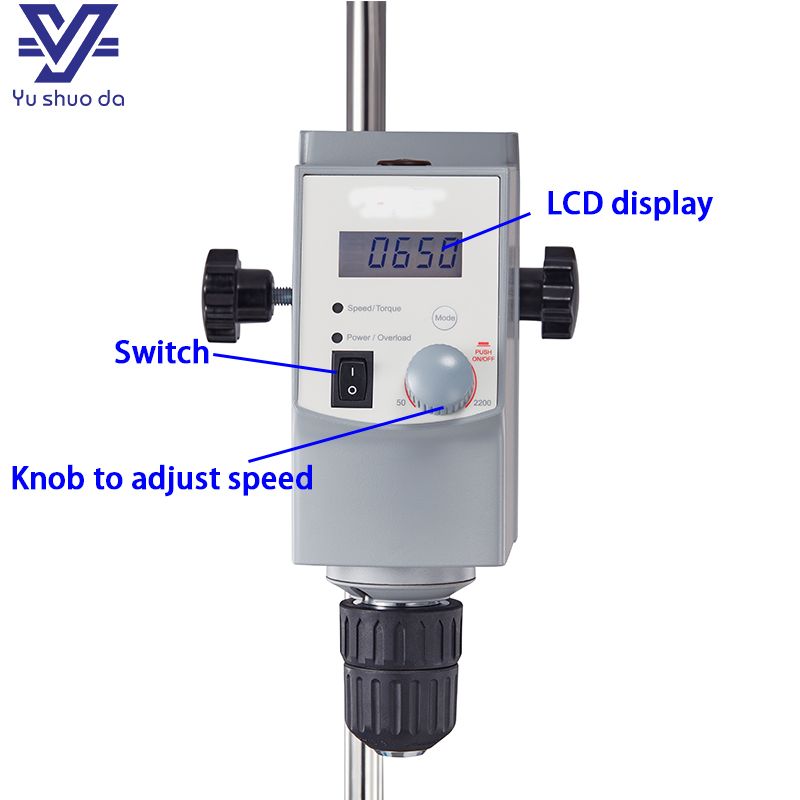

• LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 2200rpm with control accuracy of ±3rpm
• Brushless DC motor for long life, maintenance free and explosion proof
• Torque trend display for real-time information on viscosity changes
• Safety circuits allow for safe stop function in anti-stall or overload conditions
• Smooth operation prevents accidental spillage and splashing
• Provides constant speed even with changes in viscosities of the samples
• Remote function provide PC control and data transmission
• Availability of auto-restart function in case of power loss for overnight operations.

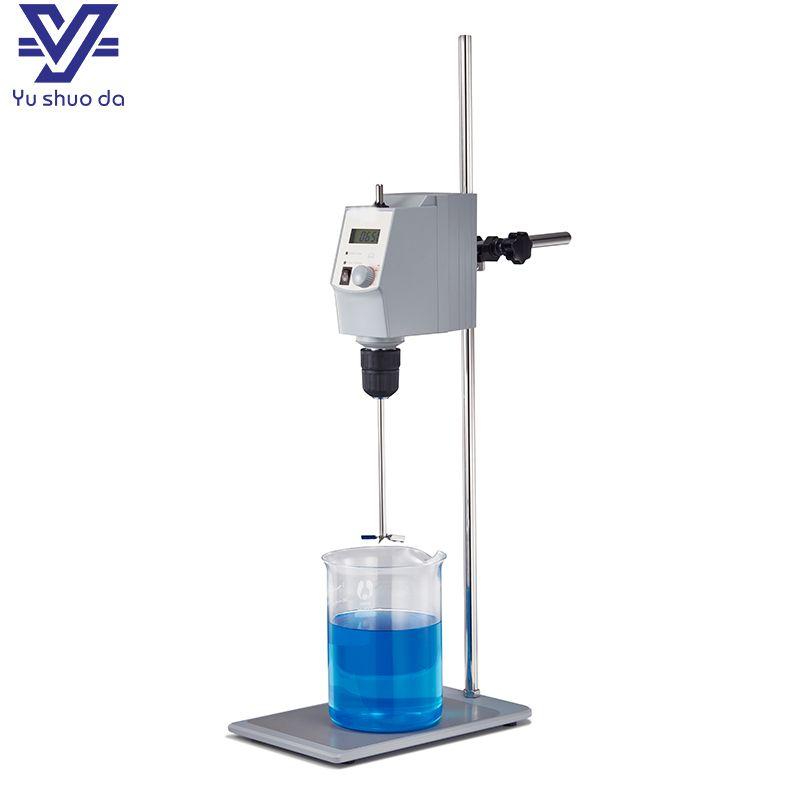

Laboratory LCD Digital Overhead Stirrer
Product name |
Laboratory LCD Digital Overhead Stirrer |
Max. stirring quantity[H2O] |
40L |
Motor type |
Brushless DC motor |
Weight | 2.8 kg |
Speed display | LCD |
Torque display | LCD |
Overload protection display | LED lights |
Max. torque | 60Ncm |
Viscosity max. | 50000mPas |
Chunk range diameter | 0.5-10mm |
Voltage Frequency | 100-240V, 50/60HZ |
Power |
130W |
Motor input power | 120W |
Motor output power | 100W |
Dimension(W*H*D) | 83*220*186mm |
Permissible ambient temperature and humidity | 5-40℃,80%RH |
Speed range |
50-2200rpm |
Protection class | IP21 |
Laboratory LCD Digital Overhead Stirrer
