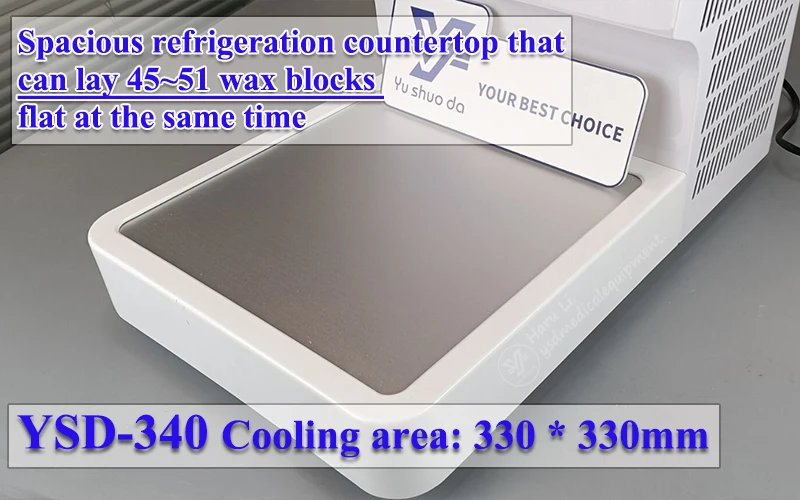

Tissue embedding part+ cold plate:

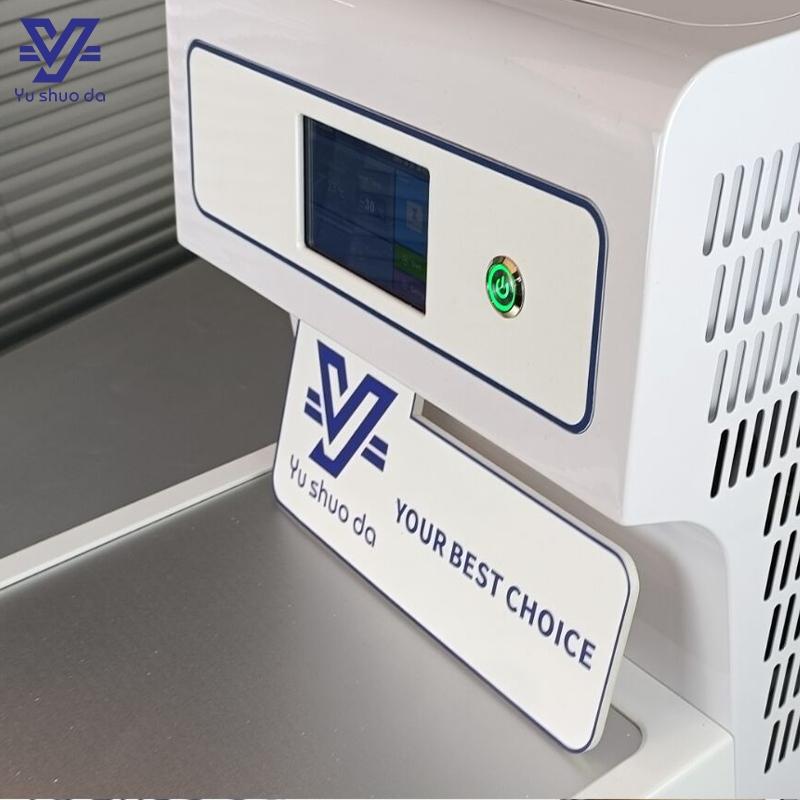

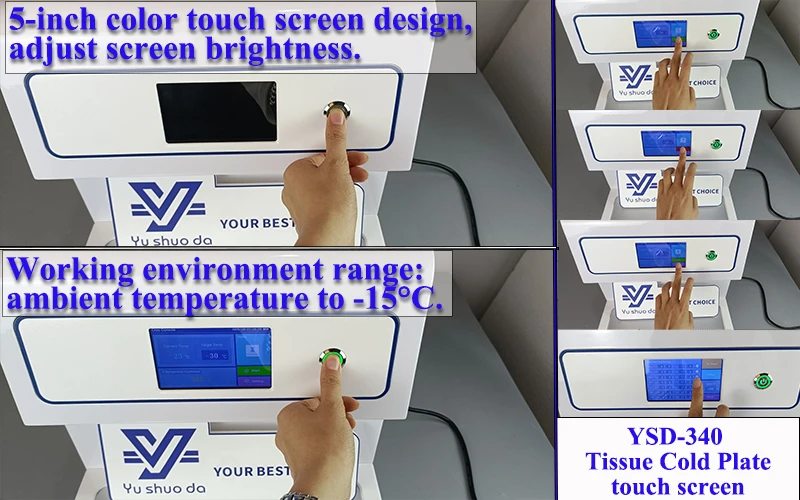

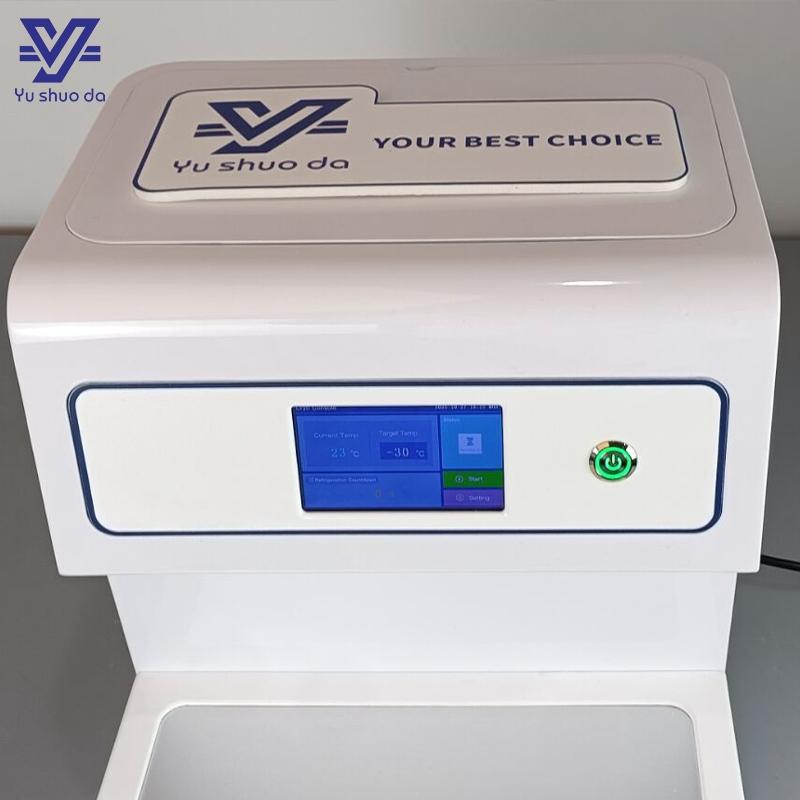

OLED screen: energy-saving, crisp display without the necessity of background light
Flexible heating mechanism and PID technology are used to achieve fast heating and precise temperature control
Brand:
YU SHUO DAItem NO.:
YSD-340Product Origin:
chinaColor:
white
|
Model Number
|
YSD-340
|
|
Product name
|
Tissue embedding center
|
|
Power
|
180W;300W;1000W
|
|
Net weight
|
84KG
|
|
Size
|
231.5*69*61Cm(W*D*H)
|
|
Paraffin Chamber Capacity
|
6 liters
|
|
Working Voltage
|
AC AC220V±10% 50HZ (standard model);AC 110V ±10% 60HZ
|
|
Temperature Range of Forceps Wells
|
Room temperature to 80℃
|
|
Temperature Range of Paraffin-melting Chamber
|
Room temperature to 80℃
|
|
Temperature Range of Thermal Storage Compartments
|
Room temperature to 80℃
|
|
Temperature Range of Heated working Areas
|
Room temperature to 80℃
|
|
Temperature Range of Paraffin dispenser
|
Room temperature to 80℃
|
|
Temperature Control precision
|
±1%
|
|
Paraffin Flow Control
|
Paraffin flow control via finger touch plate and optional foot pedal
|
|
Working Temperature of Cryo-Module
|
≤-20℃
|
