Stainless steel Mortuary freezer and trolley

YS-4 End Opening ,4 Body

End Opening Conveyor style refrigerators are designed with individual door openings measuring 70 cm W *50 cm H . The conveyor tray system is permanently located within the coolerand fully supports the body tray . When the door is open, accessibility is limited to use of a lift with the same conveyor system . The tray can then be rolled out of the cooler and onto the conveyor lift system . The conveyor mechanism system is of a split wheel design which will accommodate body
trays with drain holes

Mortuary Refrigerator  for 9 corpses
Model	YS-9
Chamber	9 rooms
External Size mm	2520*2350*1800
Package Size  mm	2600*2500*2100
Body tray Size  mm	1950*610
Temperature	0 to -10 ℃
Material	Stainless steel  201  ( Optional  : stainless steel 304 )
Compressor	9 Chinese compressors  （ Optioanl : Secop Compressors )
Refrigerator	R404A
Alarm System	High/Low temperature , Sensors error , Door Open , Power Falure
Other	OEM/ ODM

Detailed Images

All body made of high quality stainless steel

Imported Italian Carel temperature

Famous Germany Danfoss( Secop ) compressors optional

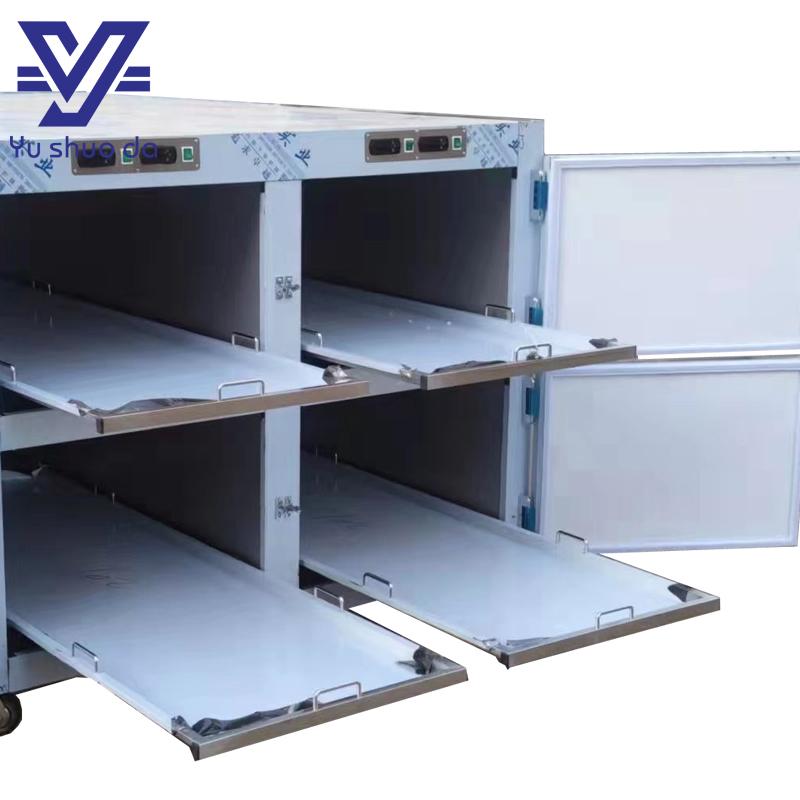

Strong Stainless steel concave tray, load weight is 180 kg

Using anti-aging of high-quality door seal

Mortuary lift Optional

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Packing & Delivery

Packing
Model	YS-4
Size	260*169*146cm
Weight	550kg
