340°C magnetic hotplate stirrers include all leading safety standards and features for superior ease of use and are cost-effective. They are widely used in chemical synthesis, physical and chemical analysis, bio pharmaceuticals, etc.
Brand:
YU SHUO DAItem NO.:
YSD-MS-H-ProTPayment:
L/C D/A D/P T/T Western Union MoneyGramProduct Origin:
Liaoning ChinaShipping Port:
Dalian, ShanghaiLead Time:
15 days after paymentSize:
W160*D280*H85mmPower:
550W

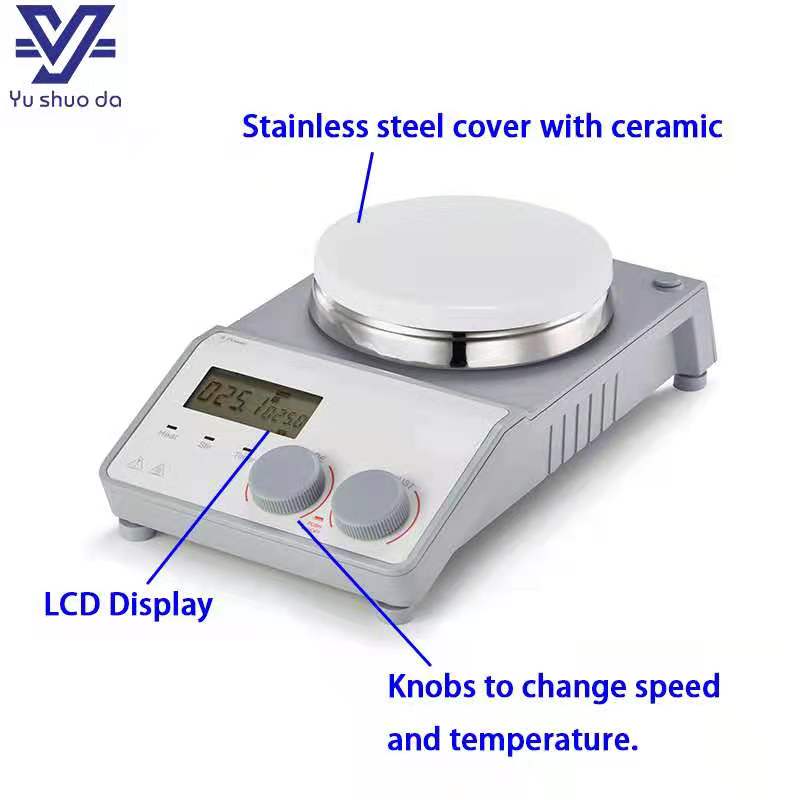

Laboratory LCD Digital Magnetic Hotplate Stirrer with Timer
Features:
• Brushless DC motor is maintenance free and explosion-proof
• Digital temperature control with max. temperature at 340°C

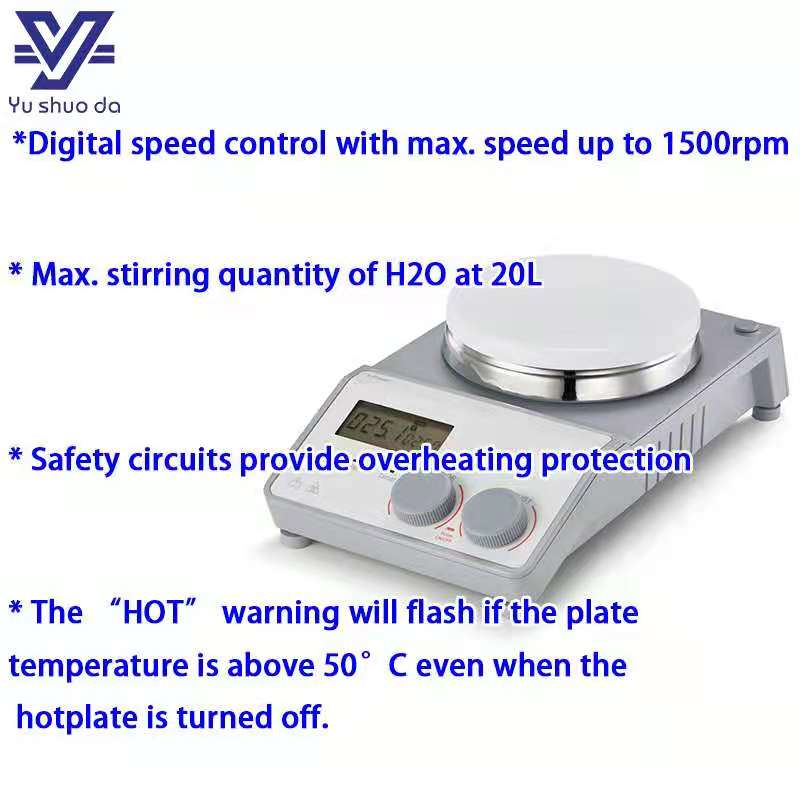

• Digital speed control with max. speed up to 1500rpm
• Max. stirring quantity of H2O at 20L
• Safety circuits provide overheating protection
• The “HOT” warning will flash if the plate temperature is above50°C even when the hotplate is turned off

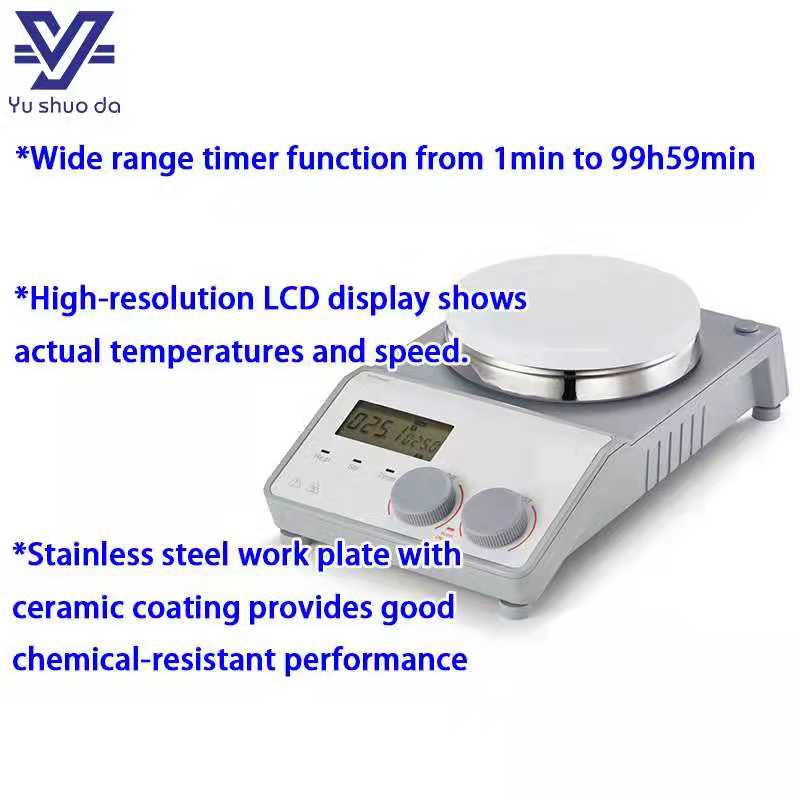

• Wide range timer function from 1min to 99h59min
• High-resolution LCD display shows actual temperatures andspeed
• External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C
• Stainless steel work plate with ceramic coating provides good chemical-resistant performance
• Remote function provides PC control and data transmission
• A wide variety of accessories are available
LCD Display Digital Magnetic Hotplate Stirrer with Timer
| Product name |
Laboratory LCD Digital Magnetic Hotplate Stirrer with Timer |
| Motor type | Brushless DC motor |
| Work plate dimension[W*D] |
φ135mm(5 inch) |
| Work plate material |
Stainless steel with creamic |
| Weight | 2.8 kg |
| Speed display | LCD |
| Temperature display | LCD |
| Voltage | 100-120/200-240V, 50/60HZ |
| Protection class | IP21 |
| Power |
550W |
| Heating output | 500W |
| Dimension(D*W*H) | 280*160*85mm |
| Permissible ambient temperature and humidity | 5-40℃,80%RH |
|
Max. stirring quantity[H2O] |
20L |
| Max. magnetic bar[length] | 80mm |
| Speed range |
0-1500rpm |
| Motor rating input | 18W |
| Motor rating output | 10W |
| Stirring positions | 1 |
|
Heating temperature range |
Room Temp.-340°C, increment 1°C |
| Over temperature protection |
420℃ |
| Temperature display accuracy | ±1℃ |
| Protection class | IP21 |
| External temperature sensor |
PT1000 (accuracy ±0.2) |
| Timer function | 1 min to 99h59min |
| Data connector | RS232 |
| Hot warming | 50℃ |
LCD Display Magnetic Hotplate Stirrer
