Brand:
YU SHUO DAItem NO.:
1790003Payment:
L/C D/A D/P T/T Western Union MoneyGramProduct Origin:
Liaoning ChinaLead Time:
15 DaySize:
30*15*6Material:
PlasticRange:
From 10μl to 5ml
Laboratory Dispenser Stepper Stepmate Repeat Pipette
Overview

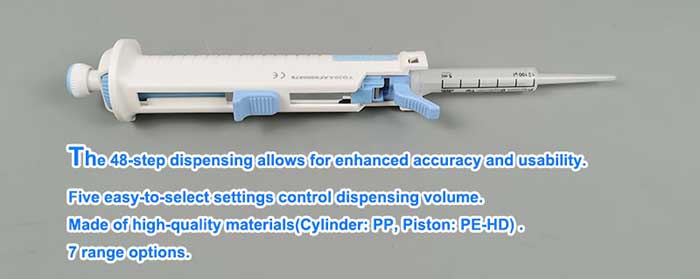

Laboratory Stepper Stepmate Repeat Pipette made of high quality raw material, piston cavity is PP material, piston is PE-HD material, without soft lubricants or other additives. German BRAND PD suction head，7 range Options from 0.5-50 ml,non-sterilized. Up to 48 steps are allocated to improve accuracy and availability. Based on the principle of positive displacement, StepMate Stepper is designed for trouble-free and reliable dispensing of liquids, especially for high viscosity, high density and high vapor pressure.
Feature
• Light and ergonomic solution provides easy usability

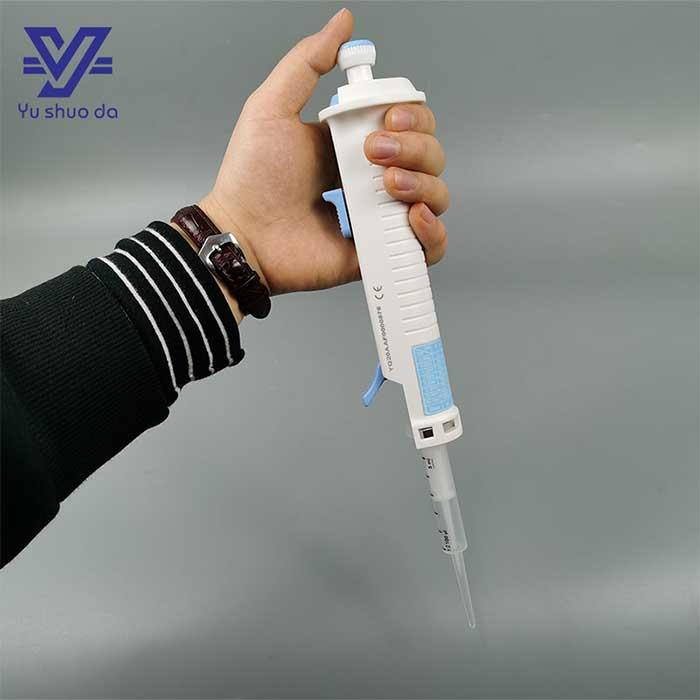

• Single-handed operation
• Volume range from 10μl to 5ml
• Up to 48 dispensing steps
• Maintenance free
• Equipped with durable tip
• insertion lever
• Fits seven sizes of disposable polypropylene syringes from 0.5ml to 50ml
Product Paramenters
| Dial setting | 1 | 2 | 3 | 4 | 5 |
Stepper Stepmate Repeat Pipette |
|||
| Number of steps | 48 | 23 | 15 | 11 | 8 | ||||
| Cat.No. |
Syringe volume (ml) |
Sample volume (μL) |
A% | P% |
Description |
||||
| 17900032 | 0.50 | 10 | 20 | 30 | 40 | 50 |
± 0.8 |
≤ 0.7 |
0.5mL piston PE-HD, cylinder PP 1 packing, 5 pcs/packing |
| 17900033 | 1.25 | 25 | 50 | 75 | 100 | 125 |
± 0.8 |
≤ 0.5 |
1.25mL piston PE-HD, cylinder PP 1 packing, 5 pcs/packing |
| 17900034 | 2.50 | 50 | 100 | 150 | 200 | 250 |
± 0.8 |
≤ 0.4 |
2.5mL piston PE-HD, cylinder PP 1 packing, 5 pcs/packing |
| 17900035 | 5.00 | 100 | 200 | 300 | 400 | 500 |
± 0.4 |
≤ 0.3 |
5mL piston PE-HD, cylinder PP 1 packing, 5 pcs/packing |
| 17900036 | 12.50 | 250 | 500 | 750 | 1000 | 1250 |
± 0.3 |
≤ 0.3 |
12.5ml piston PE-HD, cylinder PP 1 packing, 5 pcs/packing |
| 17900037 | 25.00 | 500 | 1000 | 1500 | 2000 | 2500 |
± 0.2 |
≤ 0.3 |
25mL piston PE-HD, cylinder PP 1 packing, 2pcs/packing with 1 pc adapter |
| 17900038 | 50.00 | 1000 | 2000 | 3000 | 4000 | 5000 |
± 0.2 |
≤ 0.2 |
50mL piston PE-HD, cylinder PP 1 packing, 2pcs/packing with 1 pc adapter |
|

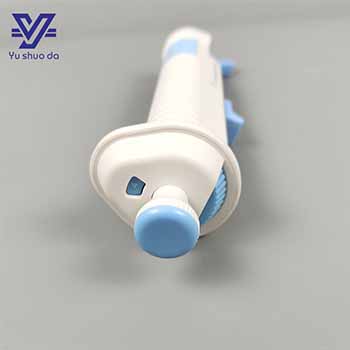

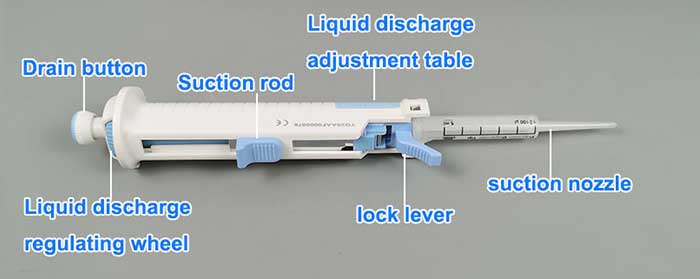

Drain button and Liquid discharge regulating wheel |

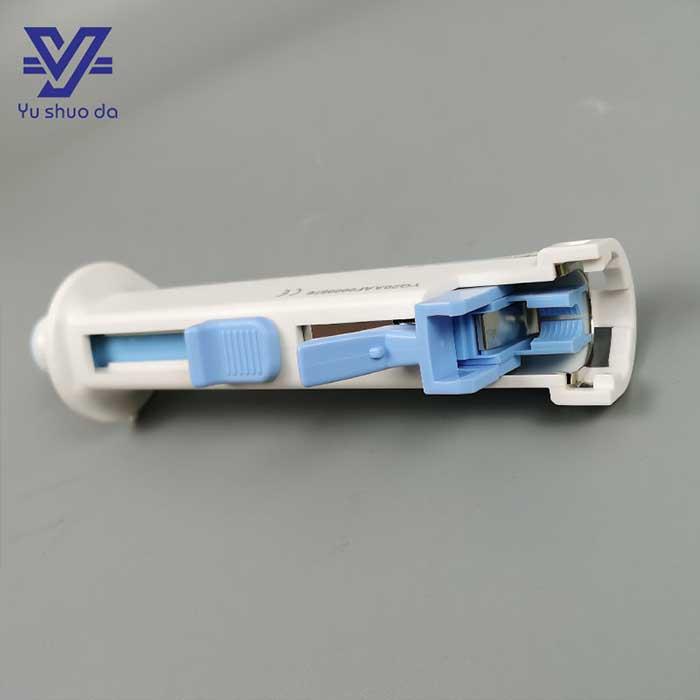

Safty lock lever |
|
How to select dispensing volume |

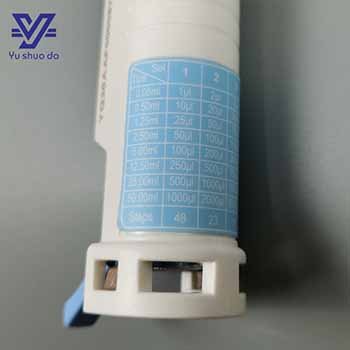

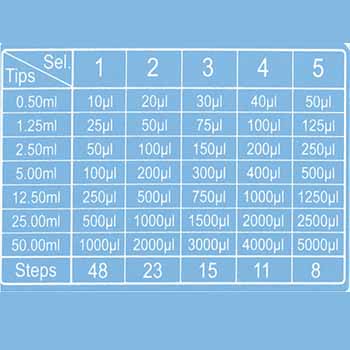

Liquid discharge adjustment table:
Find the required dispensing volume in the table
Use the adjusting wheel to set the required volume
Select and insert a suitable tip
Follow the maximum dispensing steps
|

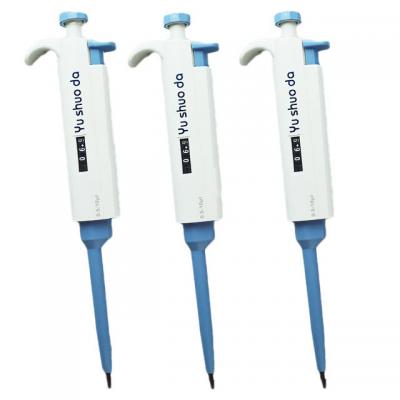

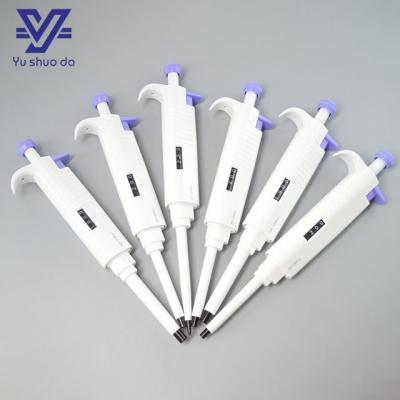

Leave A MessageSingle Mechanical Pipettor suitable for transfer small amounts of liquid, compatible universal style pipette tips, the quality control involves gravimetric testing of each pipette with distilled water at22°C.
YSD-mini pipette *The pipette is ergonomic design, good user experience; *The mini pipette with compact body, easy to operate, ideal choice for in vitro diagnostic kit matching; *The single channel pipett is high-end model offers a range of 25-300 μ L and can be used in conjunction with the standard 200 μ L/300 μ L suction head.

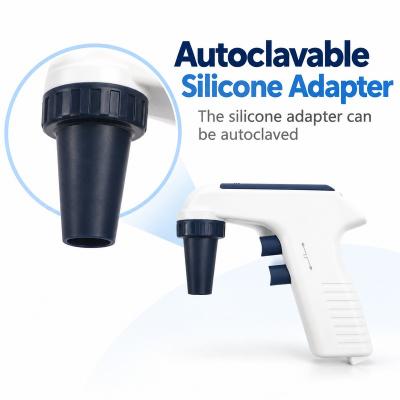

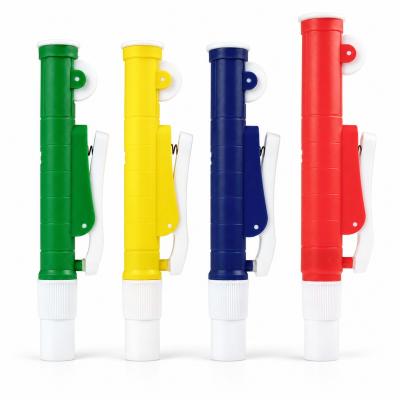

Laboratory Pipette Pump The pipette aid is mainly used for liquid transfer operations in laboratories and is suitable for departments such as scientific research, chemical engineering, and pharmaceuticals. Thepipette aidcan be used in conjunction with plastic and glass pipettes with various ranges of 2-25ml, which can accurately suck and release liquids for operations such as adding reagents and transferring samples, ensuring the accuracy of liquid volume in experiments and helping to improve the reliability of experimental results.
Single Mechanical Pipettor suitable for transfer small amounts of liquid, compatible universal style pipette tips, the quality control involves gravimetric testing of each pipette with distilled water at22°C.

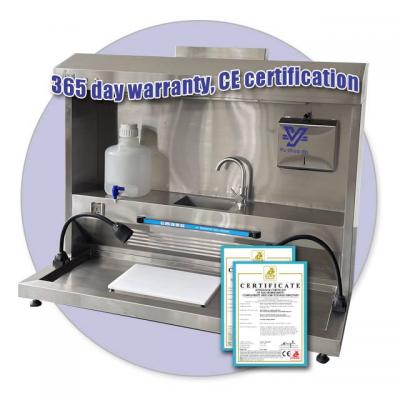

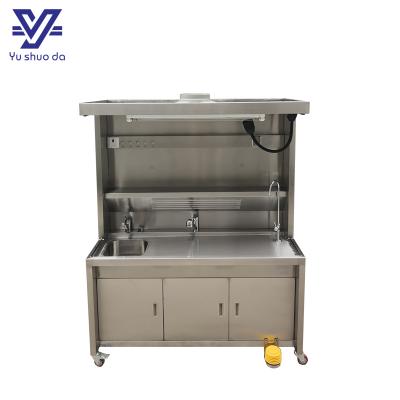

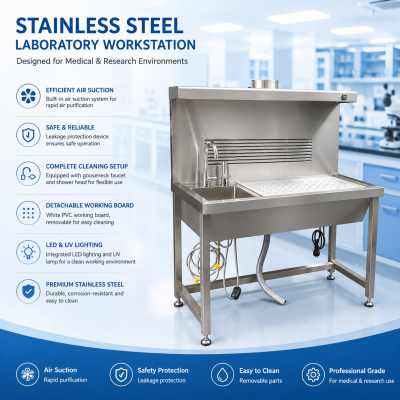

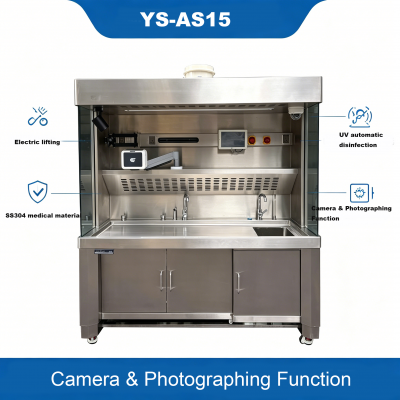

1.Foot tap water outlet; 2.Suction system for counter top odor,Efficient discharge of harmful gases ; 3.Low noise centrifugal fans effectively exhaust harmful gases from the outdoors. Exhaust air volume 1800-2000 m³/h; 4.The integrated water tank is equipped with a hair isolator with a filter screen to prevent clogging of the drainage pipeline; 5.Equipped with organizational observation spotlights, providing effective lighting for easy material retrieval LED fluorescent lamp group lighting and ultraviolet disinfection lamp, providing effective lighting and sterilization.

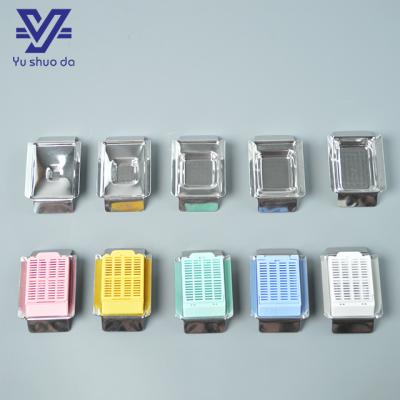

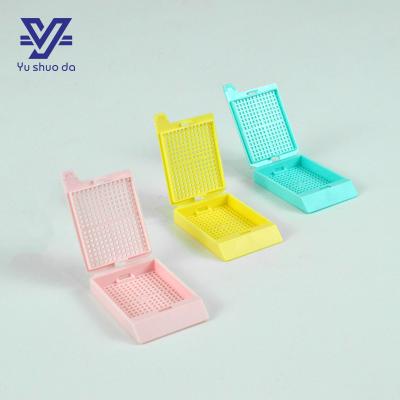

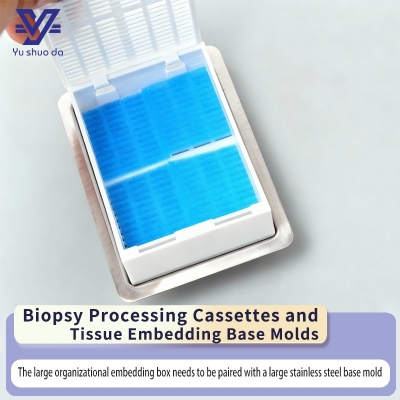

Hinge design Medical Disposable Tissue Embedding Cassette fastening box and lid, made of POM materials, can completely resist chemical solvents. dimension is 5*1 mm, front tilt angle is 45.

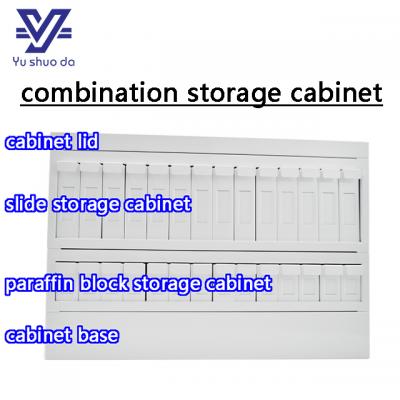

Pathology Medical Histology Slide Cooling Plate Cabinet Specimen filing and storing is one of the biggest issue for the pathology department . Directed by user demands and preference YSD have been manufacturing and supplying several models of storage cabinets since many years ago . Slide cooling storage cabinet are constructed by Iron material or heavy-duty ABS material , in Table-Top design for less sampling and convenient transport or in the traditional standard design for mass specimen filing & storing.

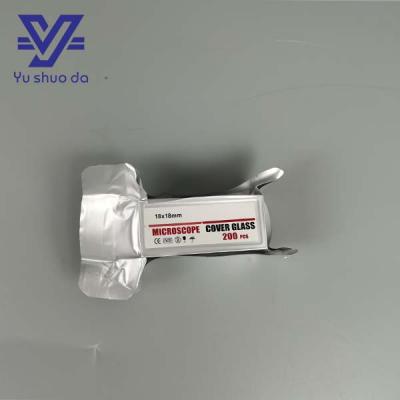

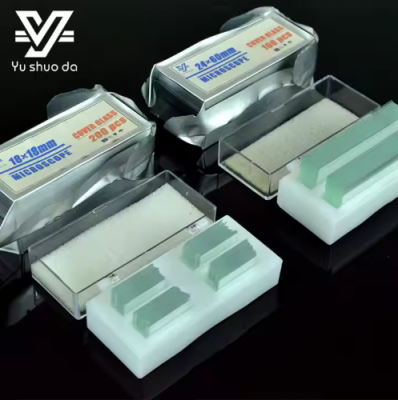

Lab consumables 24*50mm Microscope cover glass
