Clean Biological safety cabinet in necessary in animalcule lab , especially in the condition need protection measure , such as medicine , pharmacy , scientific research and so on
Brand:
YU SHUO DA

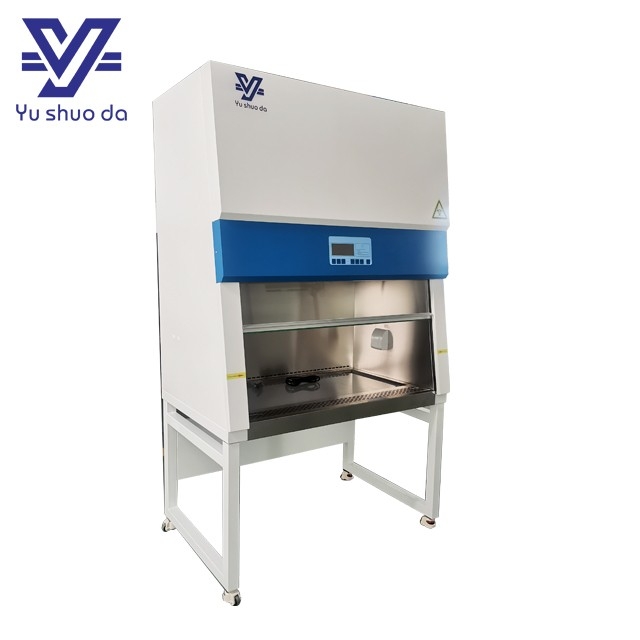

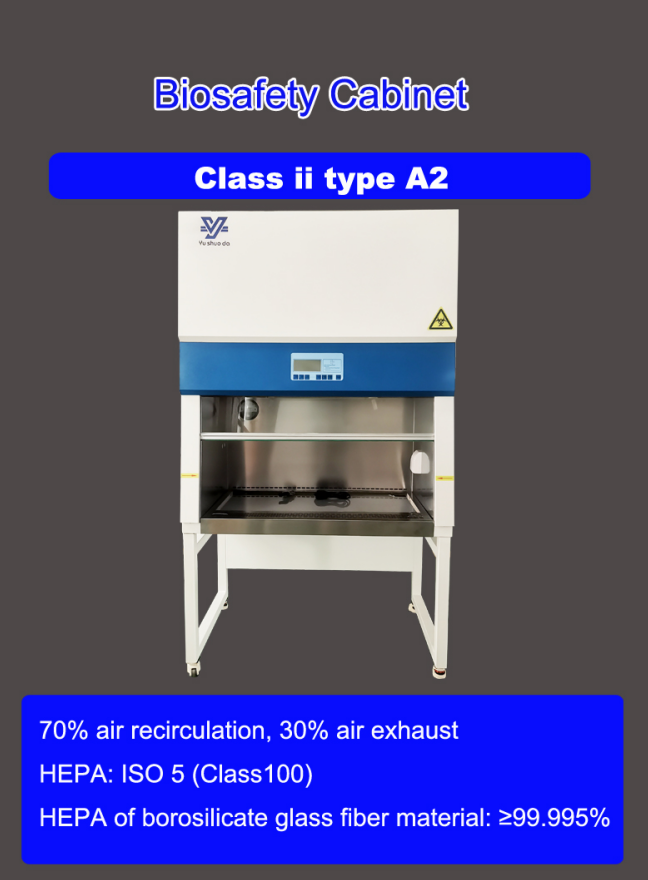

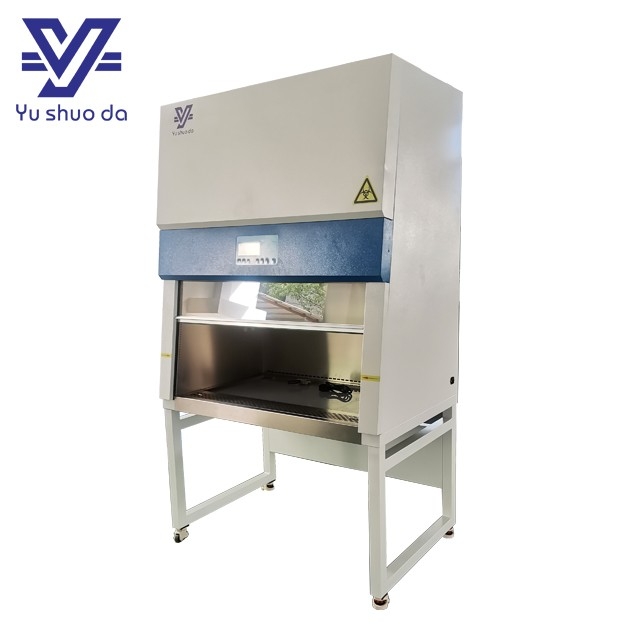

Biological safety Cabinet
BSC-1000IIA2 BSC-1300IIA2 BSC-1600IIA2
Main characteristics
■ Air curtain isolation design prevents internal and external cross-contamination A2 is 30% air exhaust and 70% internal circulation , negative pressure vertical laminar flow , no need install pipes
Move the toughened glass door up and down , which can be positioned arbitrarily , is easy to operate , and can be completely closed for sterilization , and the position height limit alarm prompts
■ The working area is equipped with a waterproof power output socket and a sewage interface to provide great convenience for the operator
■ A special filter is installed at the exhaust air to control emission pollution
■ The working environment is made of high quality 304 stainless steel , which is smooth , seamless m and has no dead ends . It can be easily and thoroughly dsinfected and can prevent the erosion of corrosive agents and disinfectants
■ It adopts LCD panel control and built-in UV lamp protection device , which can only be opened when the safety door is closed
|
Model Parameter |
BSC-1000IIA2 |
BSC-1300IIA2 |
BSC-1600IIA2 |
|
Airflow system |
70% air recirculation, 30% air exhaust |
||
|
Cleanliness grade |
HEPA: ISO 5 (Class100) |
||
|
Number of colonies |
≤0.5pcs/dish·hour (Φ90mm culture plate) |
||
|
Wind speed |
Average suction wind speed: ≥0.55±0.025m/s Average descending wind speed: ≥0.3±0.025m/s |
||
|
Filtration Level / Filtration Efficiency |
HEPA of borosilicate glass fiber material: ≥99.995%, @0.3μm Optional ULPA:≥99.9995% |
||
|
Noise |
≤65dB(A) |
||
|
Illumination |
≥800Lux |
||
|
Vibration half peak |
≤5μm |
||
|
Power supply |
AC single phase 220V/50Hz |
||
|
Maximum power consumption |
500W |
600W |
700W |
|
Weight |
210KG |
250KG |
270KG |
|
Internal Size (mm) W*D*H |
1040*650*620 |
1340*650*620 |
1640*650*620 |
|
External Size (mm) W*D*H |
1200*800*2100 |
1500*800*2100 |
1800*800*2100 |
|
High efficiency filter specification and quantity |
980*490*50*1 520*380*70*1 |
1280*490*50*1 820*380*70*1 |
1580*490*50*1 1120*380*70*1 |
|
Specification and quantity of fluorescent lamp/UV lamp |
20W*2/20W*1 |
30W*2/30W*1 |
30W*2/30W*1 |

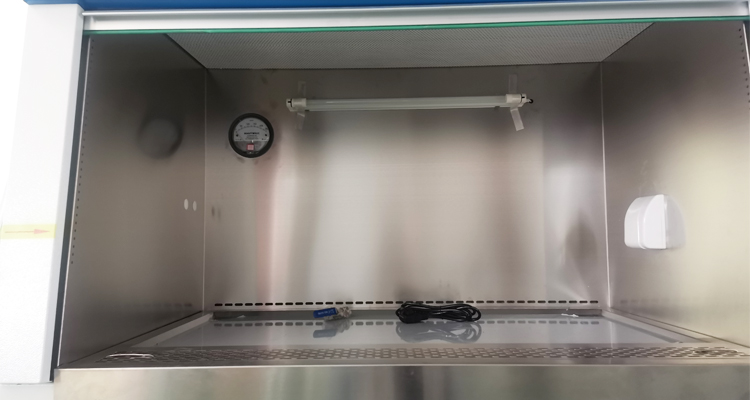

Biosafety Cabinet Stainless steel working table
Biosafety Cabinet High quality made of stainless steel working area

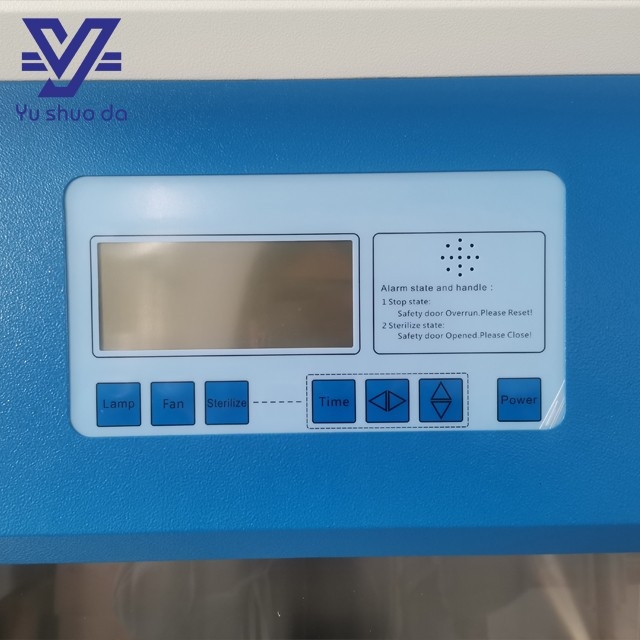

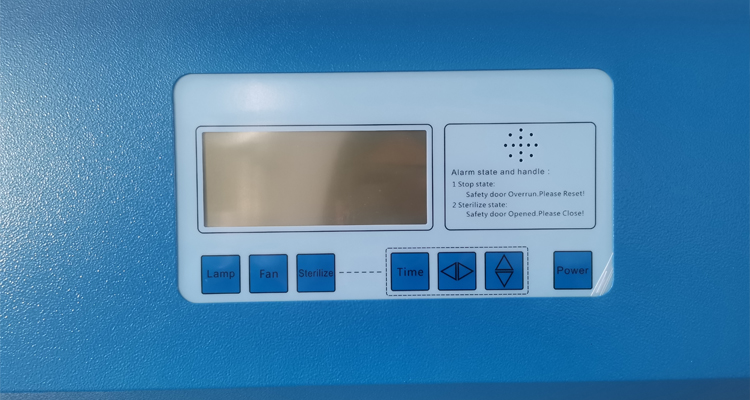

Laboratory Safety Biosafety Cabinet with large LCD screen
Laboratory Safety Biosafety Cabinet with large digital screen , to control the machine

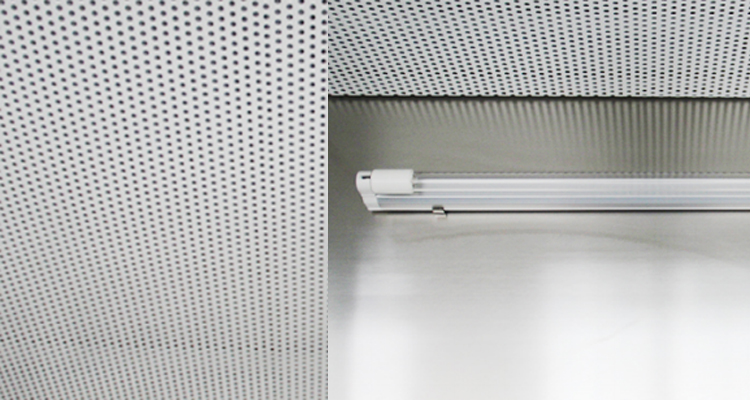

Microbiological Safety Cabinet High efficiency filter
Microbiological Safety Cabinet with high efficiency filter ，70% air recirculation, 30% air exhaust
Real Pictures
