380°C magnetic hotplate stirrers include all leading safety standardsand is chemically-resistant with white ceramic work plate. They can be used in physical, chemical, analytical and biological laboratories.
Brand:
YU SHUO DAItem NO.:
YSD-MS-H380-ProPayment:
L/C D/A D/P T/T Western Union MoneyGramProduct Origin:
Liaoning ChinaShipping Port:
Dalian, ShanghaiLead Time:
15 days after paymentSize:
W320*D180*H108mmPower:
510W

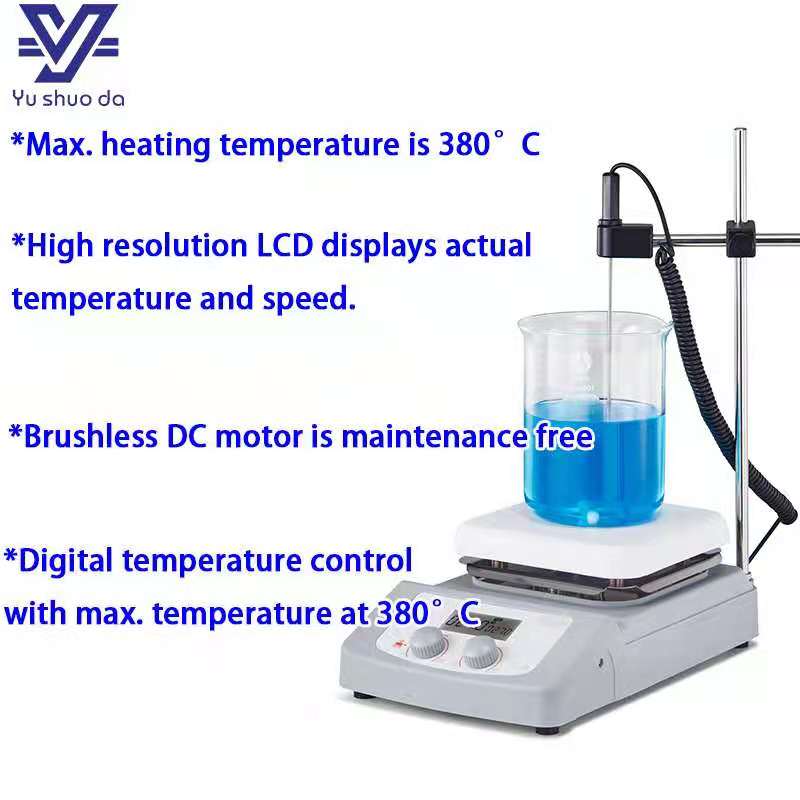

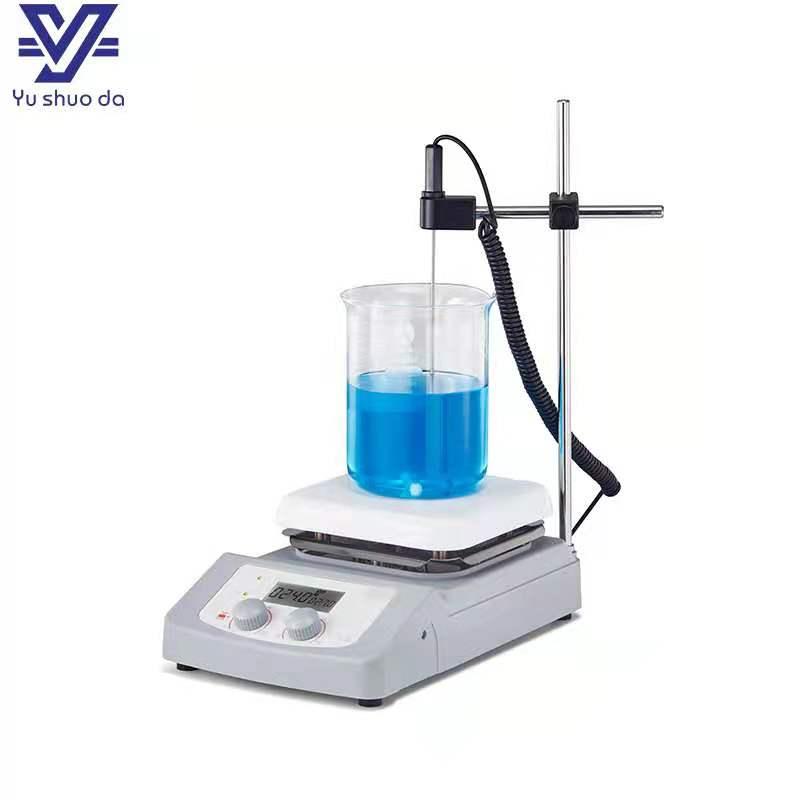

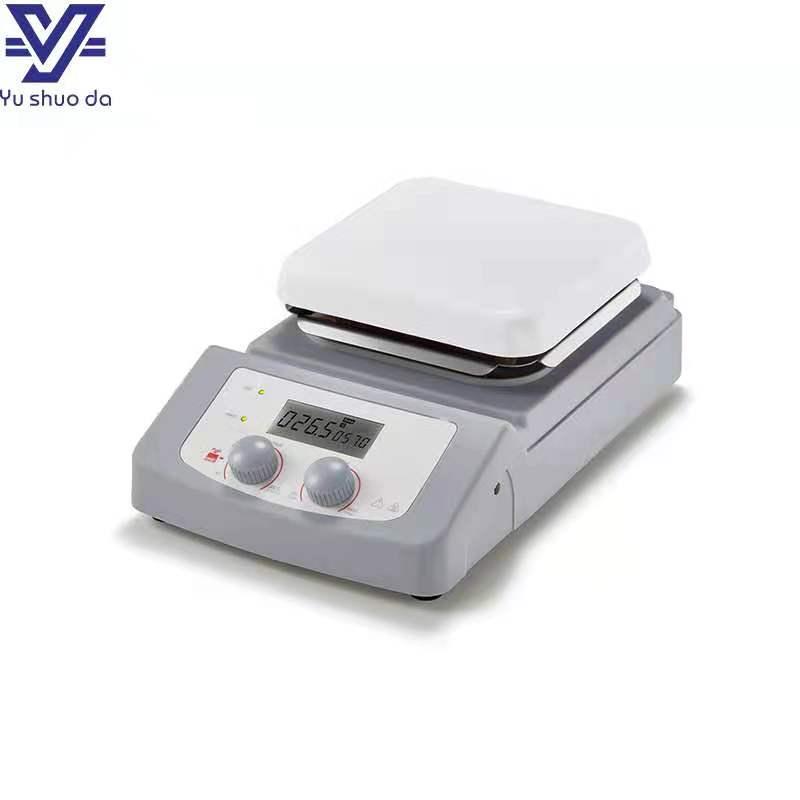

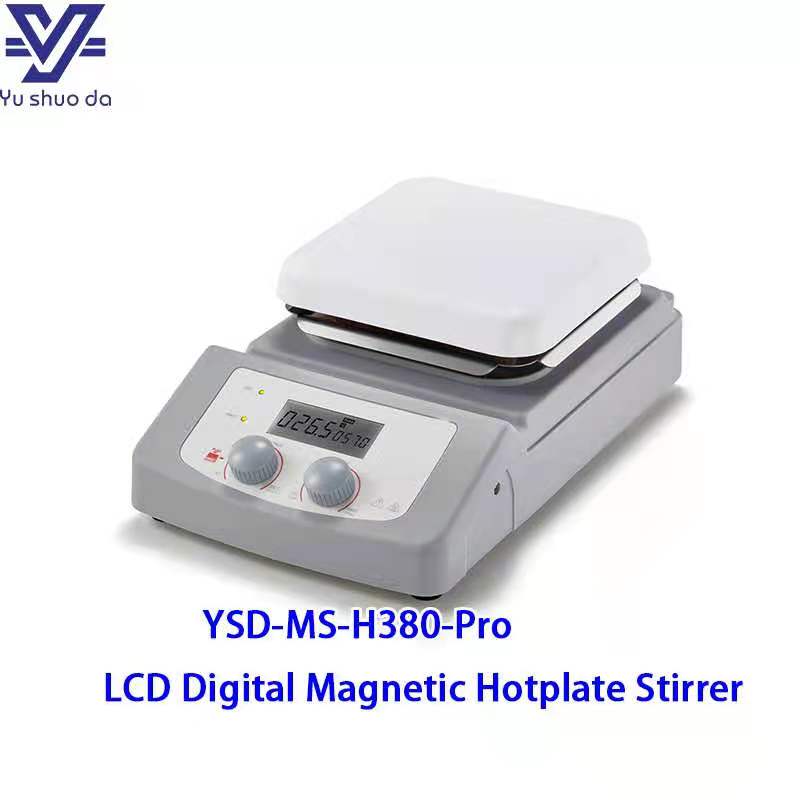

380℃ LCD Digital Magnetic Hotplate Stirrer
Features:
• Max. heating temperature is 380°C
• High resolution LCD displays actual temperature and speed.
• Brushless DC motor is maintenance free
• Aluminum cover with ceramic work plate, allows for immediate heat transfer
• External temperature control is possible with temperature sensor PT1000
• Digital temperature control with max. temperature at 380°C
• Digital speed control with max. speed up to 1500rpm
• Max. stirring quantity of H2O at 5L
380℃ LCD Digital magnetic hotplate stirrer
Product name |
380℃ LCD Digital magnetic hotplate stirrer |
Work plate dimension[W*D] |
140*140mm |
Motor type | Brushless DC motor |
Work plate material |
Aluminum cover with ceramic coating |
Weight | 2.2kg |
Speed display |
LCD |
Temperature display | LCD |
Heating temperature range | Room temp. +5℃-380℃ |
Over heat protection | 420℃ |
Temperature diaplay accuracy | ±0.1℃ |
External temperature sensor | PT1000(accuracy±0.5℃) |
Voltage | 100-120/200-240V, 50/60HZ |
Power | 510W |
Motor input power | 2.4W |
Motor output power | 1.8W |
Heating output | 500W |
Max. stirring quantity[H2O] |
5L |
Max. magnetic bar[Length] | 50mm |
Dimension(W*D*H) | 320*180*108mm |
Permissible ambient temperature and humidity |
5-40℃,80%RH |
Speed range |
200-1500rpm |
Control accuracy of sensor | ±20rpm |
stirring positions | 1 |
Protection class | IP21 |
LCD Display magnetic hotplate stirrer
