Brand:
YU SHUO DAItem NO.:
YSD-4V368Product Origin:
Liaoning,ChinaShipping Port:
shenyangSize:
685×429×1380mmMaterial:
coated steelCapacity:
368L





Features
1.Microprocessor control, ensure the inside temperature of 4°C±1°C accuracy is 0.1°C
2.Suggested ambient temperature: +10~32°C.

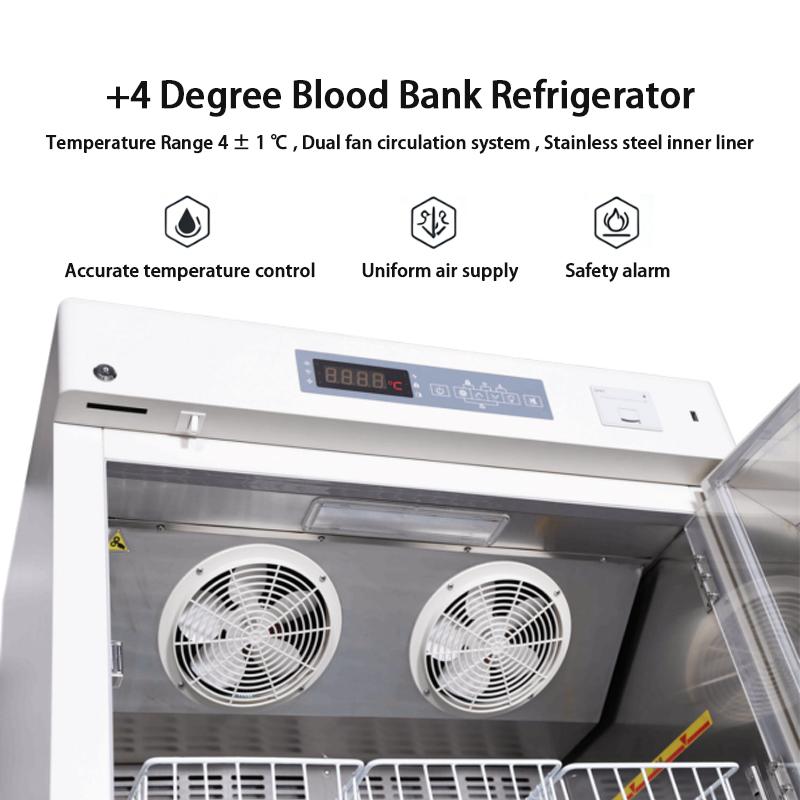

3.Specially designed forced-air cooling system, ensures frost-free cabinet and good temperature uniformity. 4.Toughened glass door with heater to avoid condensation. 5.Wide available voltage range: 220V±10%.



Security
1.Safety door lock and controller password to prevent unauthorized access.
2.72h built-in backup battery to power the controller and save temp. data when power failure or system error. 3.Visual and audible alarm system.
4.Power failure protection: turn-on delay of the cooling system after power failure.
5.Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when the controller or two sensors failed.



Humanized design
1.Special designed service-free drainage system, ensure no water in the cabinet.
2.Adjustable shelves and blood baskets for easy storage.
3.Casters with stoppers for easy moving and fixation.
4.Auto on/off LED light with manual switch on the control panel.
5.Auto on/off cooling fan to prevent cold air from leaking out when the door is opening.















					|

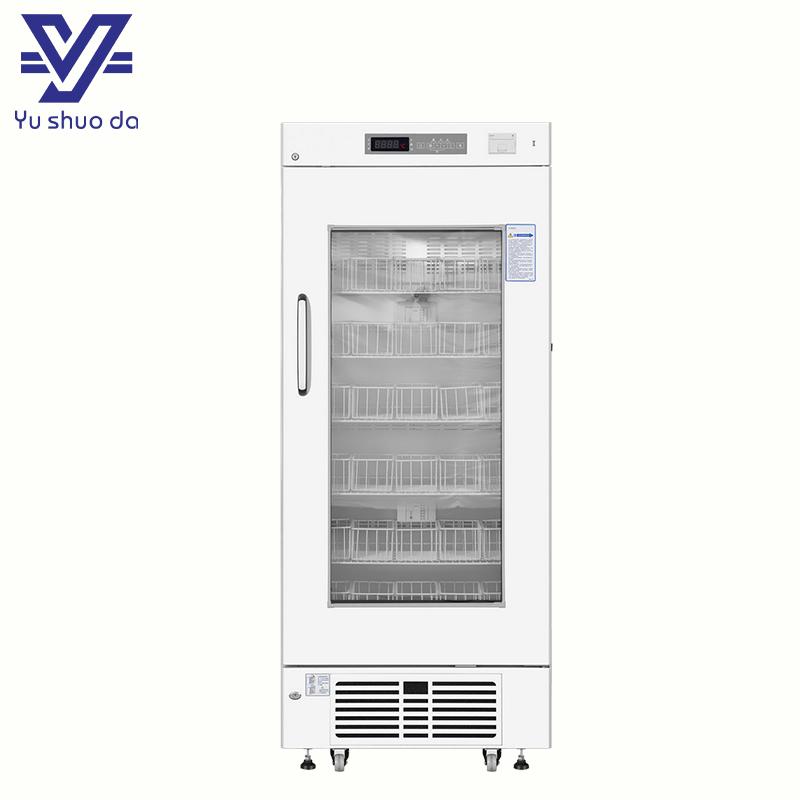

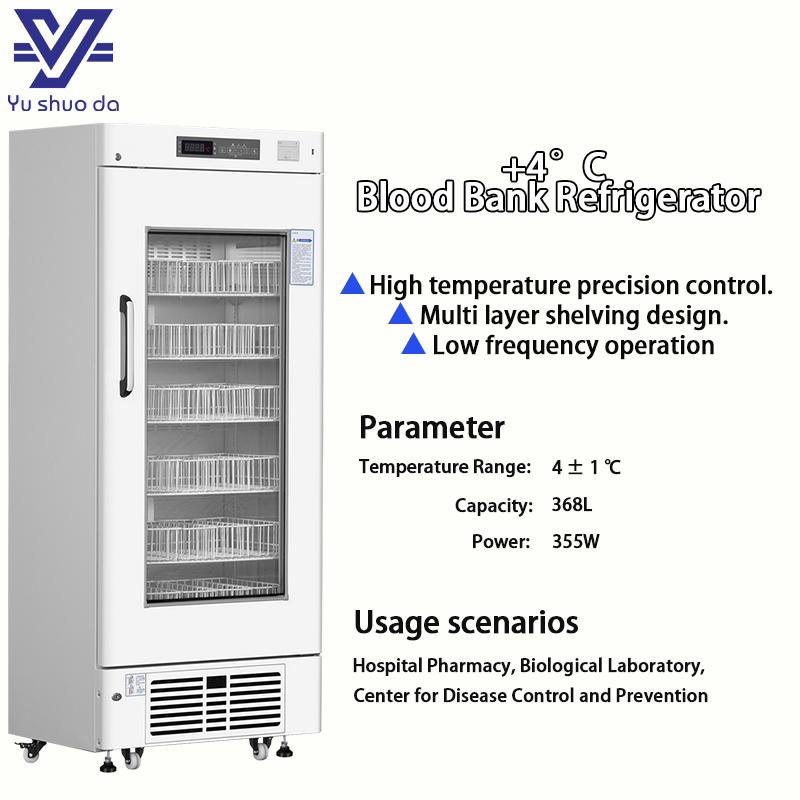

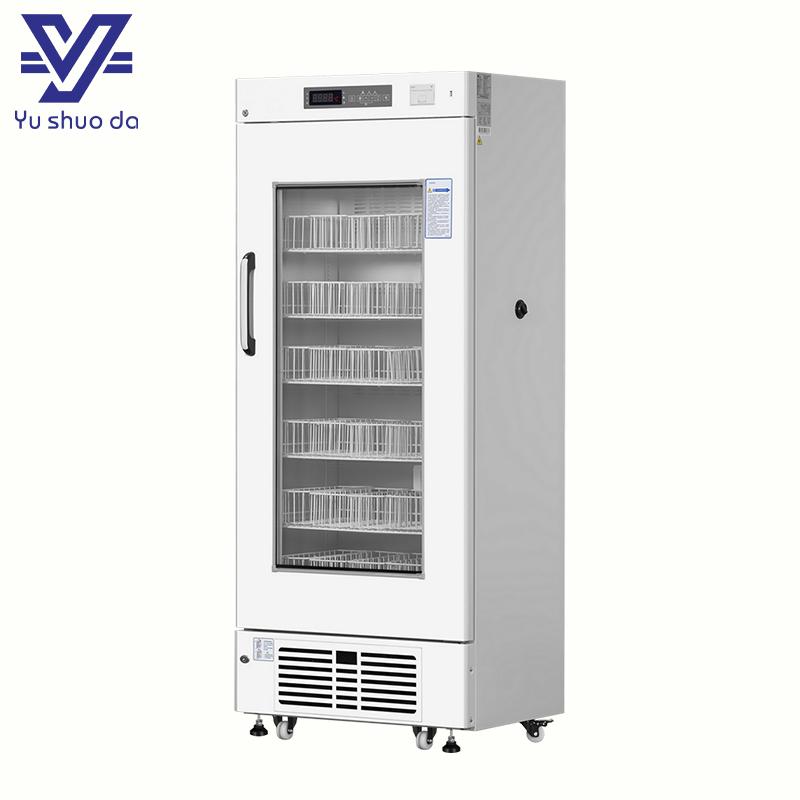

								Product name
							 |
								Blood fridge
							 |
|
								Model
							 |
								YSD-4V368
							 |
|
								Temperature Range
							 |
								4 ± 1 ℃
							 |
|
								Ambient Temperature
							 |
								10~32℃
							 |
|
								Capacity (L/Cu. Ft.)
							 |
								368 / 13
							 |
|

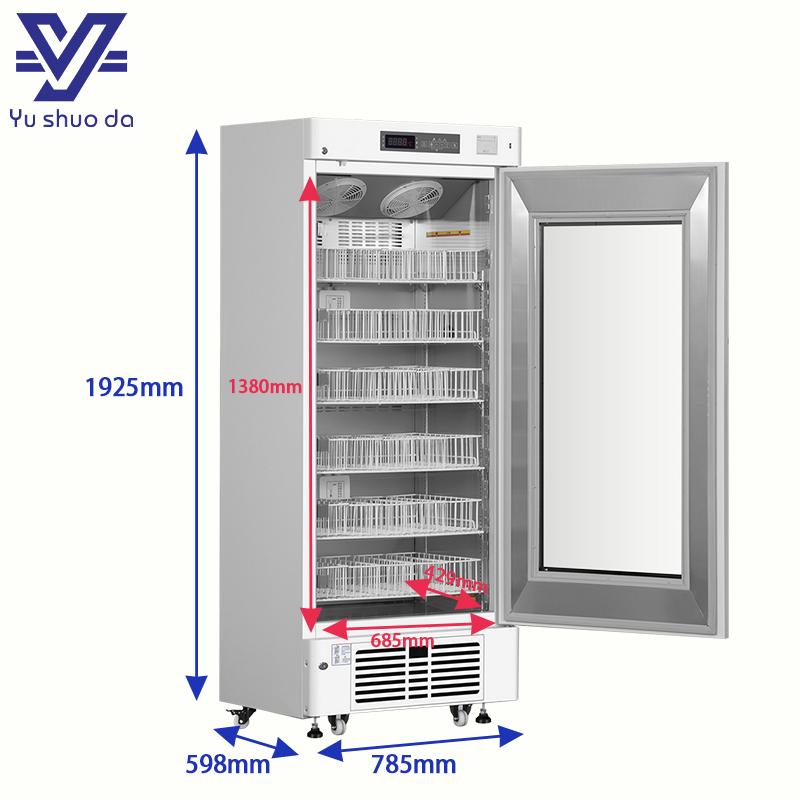

								Interior Dimensions (W×D×H) mm
							 |
								685×429×1380
							 |
|
								Exterior Dimensions (W×D×H) mm
							 |
								785×598×1925
							 |
|
								Max Loading of 450/400/300/200ml Blood Bag
							 |
								300/360/420/540 Bags
							 |
|
								Voltage and Frequency
							 |
								220V±10%, 50/60Hz
							 |
|
								Power
							 |
								355 W
							 |
