1. Introduction: Why Every Histology Lab Needs a Reliable Slide Marker

In the fast-paced environment of modern histopathology and immunohistochemistry labs, clear, durable, and consistent labeling of glass slides is non-negotiable. Manual handwriting or low-quality printing can lead to faded text, smudged labels, and costly errors that risk misdiagnosis or lost samples.

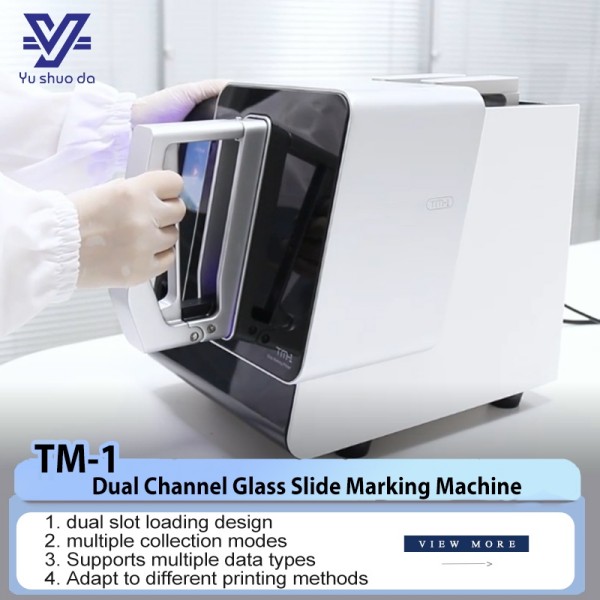

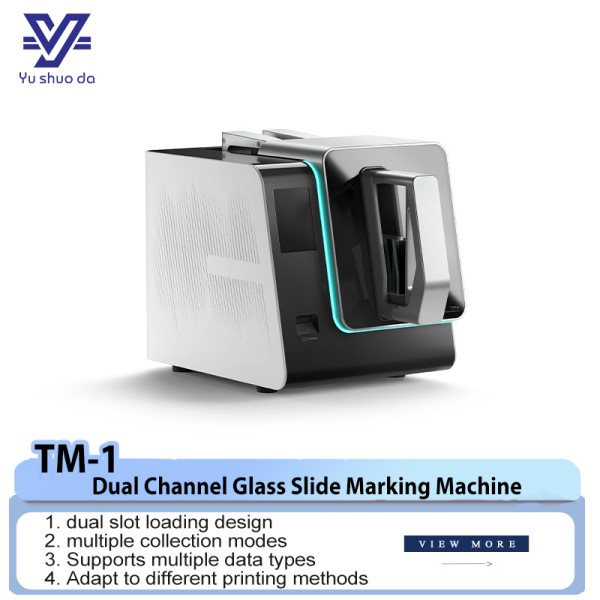

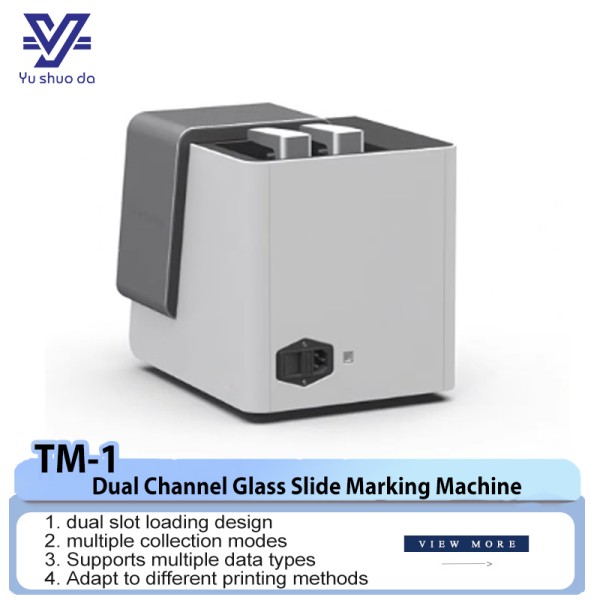

TheTM-1 Dual Channel Glass Slide Marking Machine is designed to solve these challenges with high-throughput, precision thermal transfer printing technology, making it an essential tool for labs prioritizing accuracy, efficiency, and traceability.

Unlike traditional printers, the TM-1 is purpose-built for glass slides, offering specialized features that meet the unique demands of both routine HE staining and advanced immunohistochemistry workflows. Whether you’re processing hundreds of slides daily or need to print barcodes and case system text for digital tracking, the TM-1 delivers reliable, professional results every time.

2. Core Features & Key Advantages of the TM-1

2.1 Dual-Slot High-Throughput Design

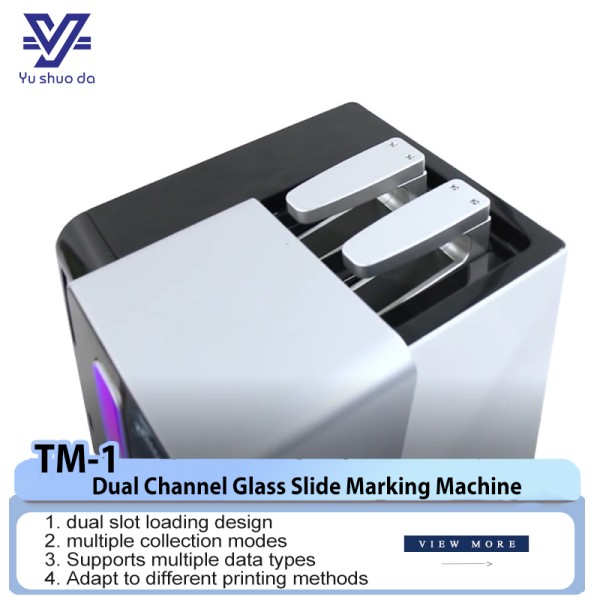

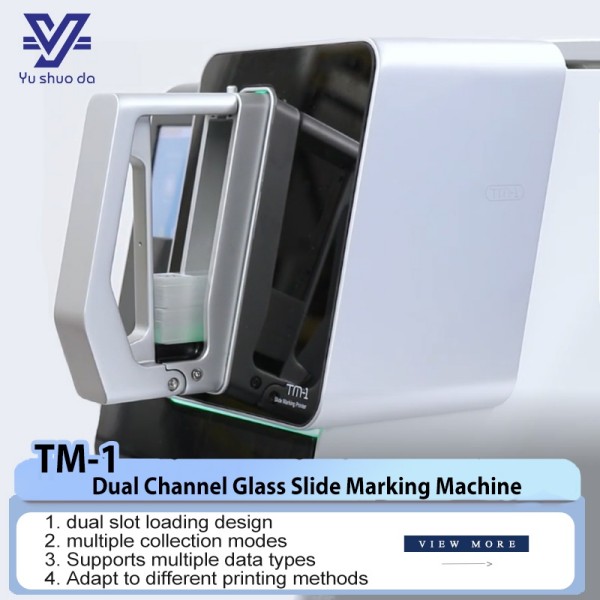

The TM-1’s standout feature is itsdual-slot loading system, which lets you load two separate batches of slides simultaneously. This design accommodates both conventional HE and immunohistochemical printing needs, allowing you to freely switch between tasks without pausing operations. Each hopper holds up to 100 slides, giving a combined capacity of 200 slides, perfect for high-volume labs.

2.2 Versatile Collection & Printing Modes

Flexibility is at the heart of the TM-1. It supports multiple collection modes, including ready-to-use continuous collection and one-time batch collection, adapting to your workflow. For printing, it handles all common data types:

· Alphanumeric text

· Symbols and graphics

· Multilingual characters

· 1D/2D barcodes

· Custom case system textThis versatility means you can print everything from basic patient IDs to scannable barcodes for seamless LIS/HIS integration.

2.3 Reliable Thermal Transfer Printing Technology

The TM-1 usesthermal transfer ribbon printing, a proven technology that creates permanent, smudge-proof labels resistant to harsh lab chemicals, solvents, and prolonged storage. Each ribbon prints up to 5,000 slides, reducing frequent consumable changes and lowering long-term operational costs. With a resolution of up to 300 dpi, text and barcodes remain crisp and legible even after staining, clearing, and coverslipping.

2.4 User-Friendly Operation & Smart Features

Designed for lab efficiency, the TM-1 includes:

· A touchscreen interface for easy job setup and editing

· A built-in barcode scanner for fast, error-free data input

· A status light to monitor printing progress at a glance

· A compact footprint (405×267×300mm) that fits easily on any lab bench

· A quiet, low-maintenance design with no messy ink or toner to clean up

·

3. Step-by-Step Guide to Using the TM-1 Slide Marker

3.1 Required Equipment & Consumables

· TM-1 Dual Channel Glass Slide Marking Machine

· Thermal transfer ribbon (compatible with TM-1)

· Glass slides (conventional paint surface slides with color bands)

· Power supply (100-240 VAC, 50/60 Hz)

· Optional: USB connection for external data import

3.2 Operation Process

1. Preparation & Setup: Unbox the machine, connect the power cord and USB cable (if needed), and load the thermal transfer ribbon. Power on the device and ensure the status light shows it’s ready.

2. Slide Loading: Fill the left and right feeding hoppers with glass slides. The dual-slot design lets you load different slide batches or print jobs at once.

3. Job Configuration: Use the touchscreen to create or import your print job. Input text, barcodes, or patient data, adjust font size and position, and select your preferred collection mode.

4. Verification & Printing: If using barcodes, scan them with the built-in scanner to confirm accuracy. Press start, and the TM-1 will automatically feed, print, and collect slides at a speed of 7 seconds per slide.

5. Collection & Post-Processing: Completed slides are collected in the tray, which holds up to 100 slides. Once the job is finished, remove the slides and verify print quality before moving them to staining or storage.

4. Why Choose the TM-1 for Your Lab?

· Zero Printing Errors: Direct data transfer and barcode scanning eliminate typos and mislabeling risks.

· Permanent, Durable Labels: Thermal transfer printing creates chemical-resistant text that won’t fade during processing.

· Boosted Lab Efficiency: Dual-slot loading and fast 7-second printing drastically reduce labeling bottlenecks.

· Low Cost of Ownership: Long-lasting ribbons (5,000 prints per roll) and minimal maintenance keep operational costs low.

· Universal Compatibility: Works with standard paint-surface glass slides, making it easy to integrate into your existing workflow.

5. About Us

Shenyang Yu Shuo Da Science And Technology Ltd. is a professional manufacturer of laboratory equipment and consumables. We focus on product quality and continuous improvement, committed to providing customers with high-quality products and thoughtful service.

If you are interested in the TM-1 Dual Channel Glass Slide Marking Machine or other lab products, please feel free to contact us for detailed specifications, quotations, and customized solutions.
